Horizon - AFC-546 AKT

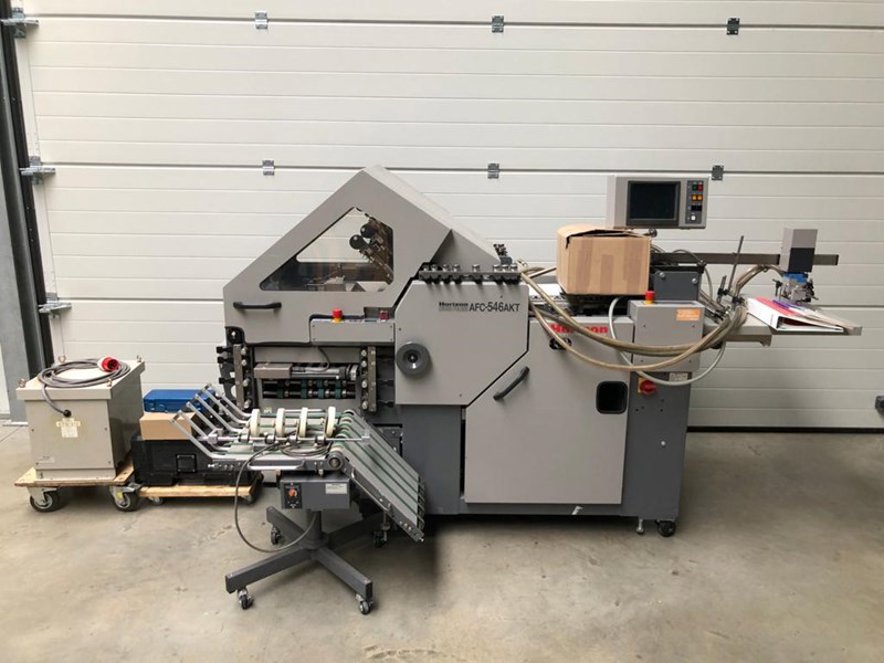

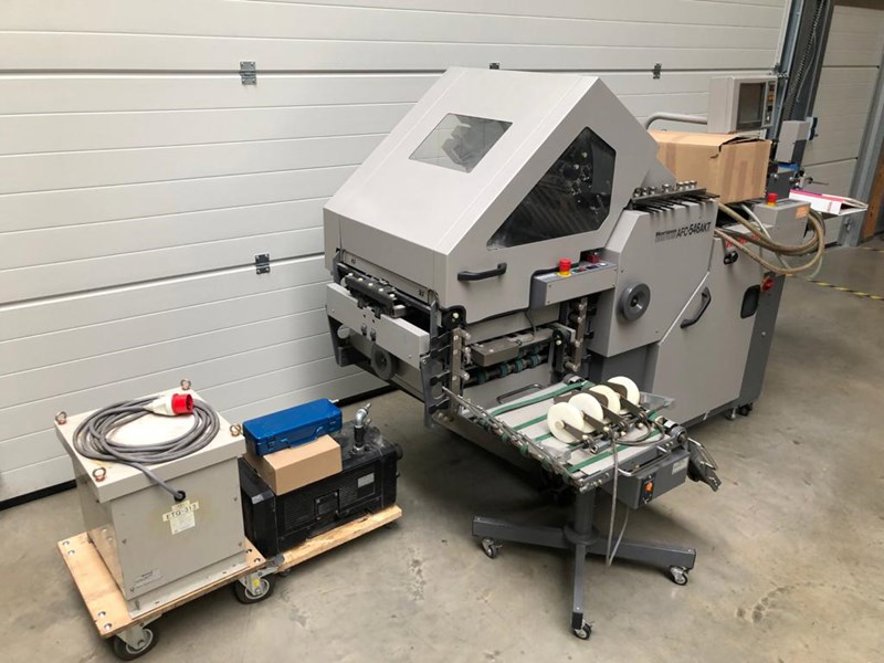

Folding Machine Horizon AFC-546 AKT
Folding Machine Horizon AFC-546 AKT

Machine Description

3 MONTHS LA-POSTPRESS WARRANTY.
except electronics.
.
offer consists of:.
.
Horizon AFC-546 AKT.
6-buckles cross folder.
.
- parallelfold rollers condition: 80%.
- crossfold rollers condition: 20%.
.
technology: touch & work.
- roller adjustment: automatic.
.
- memory folding types:.
.
17 standard-typs of fold preprogrammed.
.
- saveable jobs:.
.
100 memories for repeat orders.
.
- knives working method: full automatic.
.
- sheet size:.
max. 540x760 mm; min. 120x172 mm.
- papier weight: 40-250g/sqm.
.
- speed: max. 40.000 cycles/h.
.
- stack height: max. 650mm.
.
- power: 400V/50Hz - 2,7kW.
- dimensions: 2.780x1.050x1.680mm.
- weight: 1.350kg.

ModelHorizon-AFC-546 AKT
ManufacturerHorizon
Year2004
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationGermany

About Horizon - AFC-546 AKT

The Horizon AFC-546 AKT is a high-performance, automatic folder and creaser designed for commercial print shops, in-plant facilities, and high-volume production environments. This machine is categorized as a post-press finishing device, aimed at streamlining the folding and creasing process for a wide range of printed materials, including brochures, flyers, and business cards. Key features of the Horizon AFC-546 AKT include its high-speed processing capabilities, advanced creasing technology, and intuitive user interface. The benefits of using this machine include increased productivity, improved fold quality, and reduced labor costs. Typical applications of the Horizon AFC-546 AKT include digital printing, offset printing, and specialty finishing.

Key Technical Aspects:

Dimensions and Specifications :The Horizon AFC-546 AKT measures 43.3 inches in length, 24.8 inches in width, and 42.5 inches in height, with a weight of approximately 595 pounds. It has a maximum processing speed of up to 200 meters per minute and can handle paper weights ranging from 55 to 350 gsm.

Paper Handling :The machine features a sheet feed system with a capacity of up to 1,000 sheets, and it can handle sheet sizes from 8.5 x 11 inches to 14.33 x 20.47 inches. The output tray can hold up to 500 sheets, and the machine is equipped with an automatic sheet ejection system.

Printing Unit :As a folder and creaser, the Horizon AFC-546 AKT does not have a printing unit. However, it is designed to work in conjunction with various printing devices, including digital and offset presses.

Ink System :The Horizon AFC-546 AKT does not have an ink system, as it is a post-press finishing device that does not perform printing functions.

Plate Cylinder :The machine features a high-precision creasing system with a plate cylinder that can be easily adjusted to accommodate different sheet sizes and folding patterns. The creasing system is designed to provide crisp, sharp folds and creases, and it can handle a wide range of paper stocks and weights.
