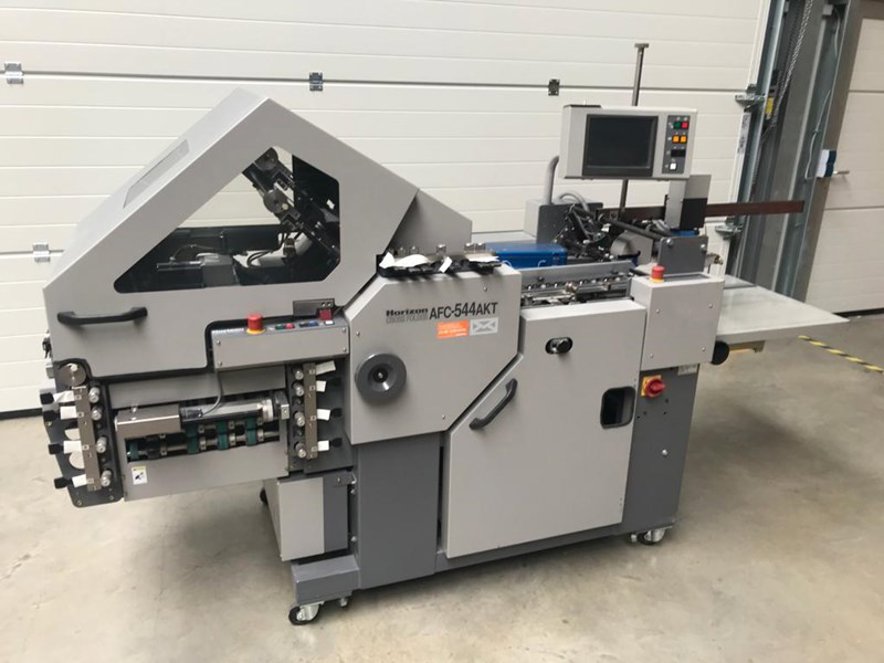

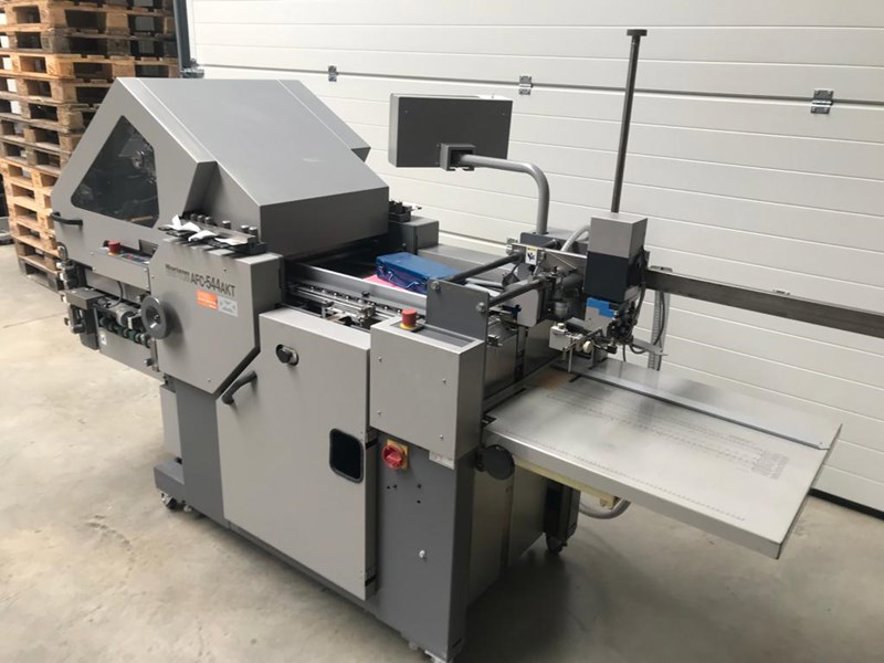

Folding Machine Horizon AFC-544 AKT
Folding Machine Horizon AFC-544 AKT

Machine Description

3 MONTHS LA-POSTPRESS WARRANTY.
except electronics.
.
offer consists of:.
.
Horizon AFC-544 AKT.
4-buckles cross folder.
.
- parallelfold rollers condition: 10%.
- crossfold rollers condition: 50%.
.
- rollers refurbished: 1.868€.
.
- technology: touch & work.
.
- memory folding types:.
17 standard-typs of fold preprogrammed.
.
- saveable jobs:.
200 memories for repeat orders.
.
- numbers of buckles:.
1. folding unit: 4 buckles + knife.
2. folding unit: 2 buckles.
.
- knife: full automatic.
.
- sheet size:.
max. 540x760mm; min. 120x172mm.
.
- fold length:.
1. buckle: min. 58mm.
all other buckles: min. 35mm.
.
- paper weight: 40-250g/sqm.
- pile height: 650mm.
.
- speed: max. 40.000 cycles/h.
.
- power: 400V/50Hz - 2,5kW.
- dimensions: 2.700x1.050x1.650mm.
(without conveyor).
- weight: 1.050kg.
.

ModelHorizon-AFC-544 AKT
ManufacturerHorizon
Year2001
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationGermany

About Horizon - AFC-544 AKT

The Horizon AFC-544 AKT is a high-performance, automatic folder and creaser designed for commercial print shops, in-plant facilities, and high-volume production environments. This machine is categorized under post-press equipment and is intended to streamline the finishing process by automatically folding and creasing a wide range of printed materials, including brochures, flyers, and documents. Key features of the Horizon AFC-544 AKT include its high-speed processing capabilities, advanced creasing technology, and user-friendly interface. The benefits of using this machine include increased productivity, improved accuracy, and enhanced finish quality. Typical applications of the Horizon AFC-544 AKT include digital printing, offset printing, and specialty finishing.

Key Technical Aspects:

Dimensions and Specifications :The Horizon AFC-544 AKT measures 54.3 inches in length, 24.8 inches in width, and 42.5 inches in height, with a weight of approximately 595 pounds. It has a maximum processing speed of up to 400 sheets per hour and can handle paper sizes ranging from 4.1 inches x 5.8 inches to 12.6 inches x 18.1 inches.

Paper Handling :The machine features a feed tray with a capacity of 500 sheets and an exit tray that can hold up to 200 sheets. It is equipped with an advanced paper handling system, including an air-suction feed system and a belt-driven transport system, ensuring smooth and accurate paper flow.

Printing Unit :Although the Horizon AFC-544 AKT is not a printing device itself, it is designed to work in conjunction with various printing presses, including digital and offset printers. It can process a wide range of paper stocks, including coated and uncoated papers, with a maximum thickness of 350 gsm.

Ink System :The Horizon AFC-544 AKT does not have an ink system, as it is a post-press finishing device that does not perform printing functions. Instead, it relies on the printed output from a separate printing device.

Plate Cylinder :The machine features a high-precision creasing system, which includes a plate cylinder with a diameter of 2.36 inches. The creasing system is designed to produce sharp, accurate creases, and the plate cylinder can be easily replaced or adjusted to accommodate different creasing patterns and paper sizes.
