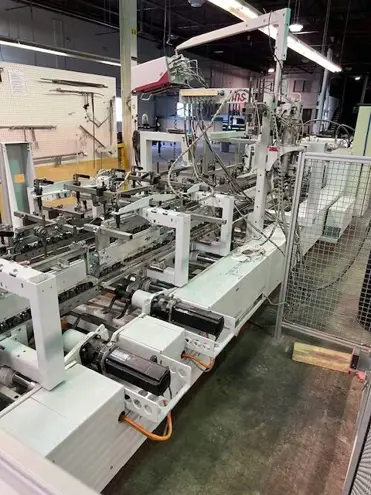

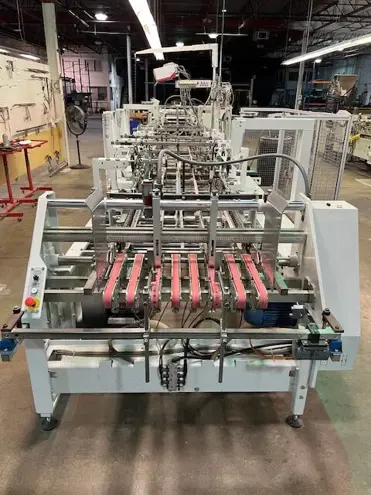

Bobst - Mistral 110 A-2

Machine Description

Straight-line boxes with prefolding of the 1st and 3rd crease and standard crash-lock bottom boxes with pre-breaking of the 1st and 3rd crease..
.
ONLY: 12,000 running hours.
.
Maximum Cardboard weight: 800 g/sqm.
.
Corrugated cardboard: N, F, E, flutes.
.
Maximum folded thickness:  15/32”.
.
Inching speed:  64 ft/minute.
.
Operating speed: 64 – 1,313 ft/minute.
.
4 & 6 corner boxes.
.
ACCUFEEDER.
.
CUBE electronic system.
.
Piston operated and CUBE controlled Carton Corrector Device at infeed belt.
.
Electric pile vibrator.
.
Dust blower system.
.
Suction device on 2 feeder belts.
.
Infeed device left and right.
.
Main gauge with longitudinal setting.
.
Blank alignment behind the feeder.
.
1-left alignment conveyor.
.
Upper pressing belt.
.
Suction guides.
.
Lower left glue pot with 3 and 5 mm glue wheels.
.
1-Lower central conveyor.
.
1-Upper central conveyor.
.
1-long upper right conveyor.
.
Suction guides.
.
1-Left and right hand pressing units with micrometric settings.
.
Central upper and lower conveyors.
.
Left and right pressing device.
.
Motorized system in transfer station.
.
HHS model C-1100-8MOD, 6 guns with 4 sensors. 8 channel glue system..
.
1-Lower compression belt extension 24” wide x 72” long with variable speed control.
.
All available spare parts and manuals
