Machine Description
GIETZ hot stamper.
.
Rotocontrol unwind.
.
Gallus Flexo and Silkscreen Print Head.
.
Kocher&Beck die-cutting unit.
.
Rotocolor winding of rolls finished.
.
Rewinder.
.
Counter: 2000 hours.
.
Maximum unwinding: 700 mm.
.
Maximum air pressure: 8 bar.
.
Air requirement quantity: 280 l/minute.
.
Flexo printing station.
.
Foil widths: 25 – 620 mm.
.
Foil core diameter: 76 mm.
.
Maximum foil roll diameter: 400 mm.
.
GAP-Master punching unit.
.
Maximum speed: 150 m/minute.
.
Hot stamping format: 450 x 610 mm.
.
Paper weight: 40-300 g/sqm.
.
Maximum winding speed: 100 m/minute.
.
Maximum roll width: 410 mm.
.
Maximum print width: 400 mm.
.
Maximum print length: 609.6 mm / Z192.
.
Minimum roll width: 35 mm.
.
Rotocolor RW-A500.
.
Vetaphone.
.
Embossing area: 430 x 609.6 mm.
.
Embossing force: 130 tons.
.
Register control.
.
Remote ACCESS.
.
Rotocolor winder.
.
Rotometrics unwinder.
.
Punching width: 407 mm.
.
Punching length maximum: 609.6 mm / Z 192.
.
Punching length minimum: 254 mm / Z 80.
.
Substrate thickness (thickness): 0.04 - 0.3 mm.
.
Maximum heating plate temperature: 200°C (393°F).
.
GEW UV lamp...

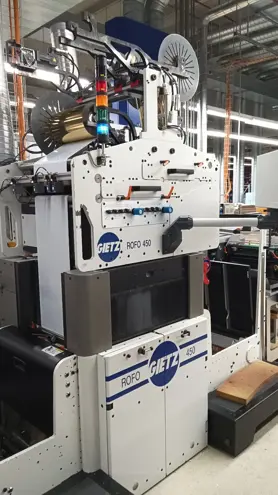

The Gietz Rofo 450 & Rotocontrol RC205 is a high-performance flexographic equipment system designed for precision hot stamping, flexographic printing, die-cutting, and embossing applications. Combining advanced technologies from Gietz and Rotocontrol, this integrated solution offers exceptional versatility for label and packaging production. Key features include a Gallus Flexo and Silkscreen Print Head, Kocher&Beck die-cutting unit, GAP-Master punching unit, and Vetaphone surface treatment. With a maximum speed of 150 m/minute and support for various substrate thicknesses, this machine delivers high-quality results for applications such as self-adhesive labels, flexible packaging, and specialty printing. Its robust construction, precise register control, and remote access capability ensure efficient and reliable operation in demanding production environments.
Key Technical Aspects:
Dimensions and Specifications : The machine features a maximum unwinding width of 700 mm and supports foil widths from 25 to 620 mm with a core diameter of 76 mm and maximum foil roll diameter of 400 mm. Operating at a maximum air pressure of 8 bar with an air requirement of 280 l/minute, it achieves speeds up to 150 m/minute. The hot stamping format is 450 x 610 mm, with an embossing area of 430 x 609.6 mm and embossing force of 130 tons. Maximum heating plate temperature reaches 200°C (393°F), and the machine includes a GEW UV lamp for curing.
Paper Handling : The system accommodates paper weights from 40-300 g/sqm and substrate thicknesses of 0.04-0.3 mm. It supports roll widths from 35 mm to 410 mm, with a maximum print width of 400 mm and print length up to 609.6 mm (Z192). The Rotocolor RW-A500 winder achieves a maximum winding speed of 100 m/minute, while the Rotometrics unwinder ensures stable material feed.
Printing Unit : The machine integrates a Gallus Flexo and Silkscreen Print Head for high-quality printing, along with a flexographic printing station. The hot stamping unit handles formats up to 450 x 610 mm, and the GAP-Master punching unit supports widths up to 407 mm with punching lengths from 254 mm (Z80) to 609.6 mm (Z192).
| Model | Gietz-Rofo 450 & Rotocontrol RC205 |
|---|---|
| Manufacturer | Gietz |
| Year | 2015 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Switzerland |
Gietz - Rofo 450 & Rotocontrol RC205
