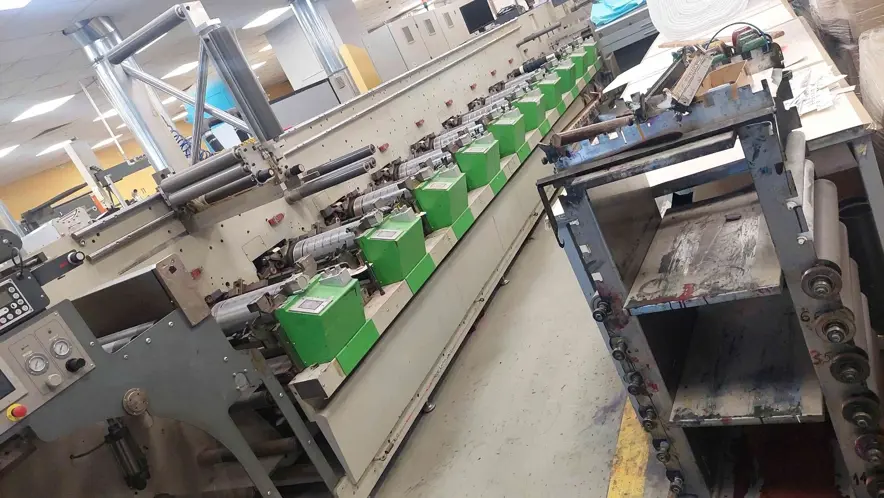

GiDue - Master M5 430 10k

Machine Description

ARC-Simotion.
.
Maximum width: 430 mm.
.
Minimum width: 280 mm.
.
Printing Width: 420 mm.
.
10 Printing Stations.
.
Gear Pitch: Z = 3.175 mm.
.
Print Cylinder:  9" - 24".
.
Machine Speed: 15 - 180 m/minute.
.
Unwinder Reel Diameter: 1000 mm.
.
Rewinder Reel Diameter: 1000 mm.
.
Unwind / Rewind Shaft Diameter: 76 mm.
.
Plate Thickness: 1,14 mm.
.
Back Thickness: 0,38 mm.
.
UV dryers on every section.
.
No die cut unit.
.
Fully servo driven machine and temperature control for unlimited substrates.
.
Includes:.
.
Front load unwinder with motorized roll lifting.
.
Unwinder unit for max. reel diameter 1.000 mm.
.
Automatic Web Guide.
.
Video inspection with manual camera movement.
.
Infeed group.
.
Vertical shear slitting unit including 3 circular blades and counter blades.
.
Back slitting unit for silicon paper (half cut) includes 2 crush knives.
.
Outfeed group.
.
3 x Web break detectors.
.
3 x antistatic bars.
.
Motorized rewinder (max. reel diameter 1.000 mm.).
.
Pressure Roller on rewinder.
.
Servo-driven unwind shaft.
.
Servo-driven infeed and outfeed for automatic tension control.
.
ARC GiDue mark-to-cylinder register control hardware and software unit.
.
Automatic pre-register.
.
Manual lateral register adjustment.
.
Second pass register control.
.
Local touch screen panel on each printing and die-cutting station.
.
Main touch screen panel (PC MHI).
.
Direct Internet Connection for remote SW and HW service and upgrades.
.
Flexo Printing Unit Description.
.
(1 servo motor for print cilinder, 1 servo motor for impression roller and ink train).
.
Includes:.
.
1340 mm base platforms (for up to 2 Flower flexographic heads).
.
27" Impression Chilled roller.
.
Chilling unit.
.
Servo Flower flexographic heads, with 2 servo motors.
.
Short Web Path.
.
Plexiglass cover for each printing unit.
.
Photocells for Gidue mark-to-cylinder register control manual cross register.
.
Sensor for automatic pre-register.
.
EC, New generation e-bricks stepless 140 W/cm GEW UV dryers lamps (includes main touch.
.
Accessories Kit (which includes):.
.
Printing accessories.
.
-              1 set of rubber rollers per color + 3 additional pcs..
.
-              1 set of inktrays per color + 3 additional pcs..
.
-              1 set of doctorblade holders per color + 3 additional pcs..
.
Extended LTF Module on colors n. 9 and. 10 (Note: rail accessories not possible on LTF Unit).
.
-              27" chilled, driven impression roller to suit UV drying lamp.
.
-              41 " driven chilled drum to suit IR + Hot Air drying system..
.
-              IR Round with 18 IR Lamps.
.
10  x   Print Tutor.
.
An "intelligent" camera automatically detects print register and pressure marks and performs completely automatic register adjustment, during the set-up and during production. It includes additional servo motor for lateral register adjustment (lenght register adjustment is built in servo driving motor of the print cylinder. Price per colour.
.
Deduction for die-cutting unit (No dies, No Organizer- only slitting) Dryers.
.
Additional Chilled Drums.
.
Additional Lower 41" driven chilled drum for extra UV lamp or hot air drying cassette..
.
Air Dryers.
.
Hot air drying cassette with ultrasonic air solution, for water based inks high speed drying..
.
Unwinder - Rewinder.
.
Additional upper rewinder Rail system for accessories.
.
Double front rail on the printing units web turn bar.
.
Web turn bar on rail (upper position) Useful Equipment.
.
Extended web path for varnish Additional ink tray with double rubber roller Miniorganizer.
.
6" pneumatic shaft adapters Web Treaters.
.
Corona treaters:.
.
Vetaphone 5 kW; DG 33 fan; 6 bars double side head (application frame and installation included).
.
Web Cleaners.
.
ACE double side suction cleaner.
.
Print tooling.
.
Unlimited substrates: labels, shrink sleeves, wrap around labels, flexible packaging, laminated tubes, pharma alufoil, yoghourt lids, lottery tickets, prepaid cards, sausage skins etc..
.
Unlimited converting solutions: multi-web, in-line and off-line laminations, booklet labels, coupon labels etc. Unlimited print repeat sizes and number of printed colours (with second-pass optional equipment). Wide range of combination printing (gravure, silk screen, cold foil, hot-stamping, digital ink-jet)..
.
Self Shrinkable Sleeves, Wrap around labels, Pharma Aluminium foil, Yogourt Lids, Unsupported film packaging BOPP, PVC, PE, PET, LamiTube, Carboard, Sausage skins Lottery Tickets, pre-paid cards, tea bags
