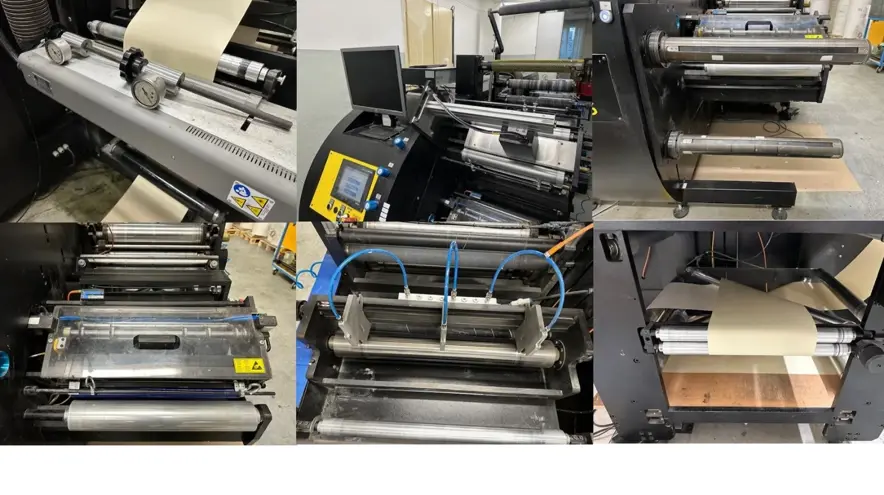

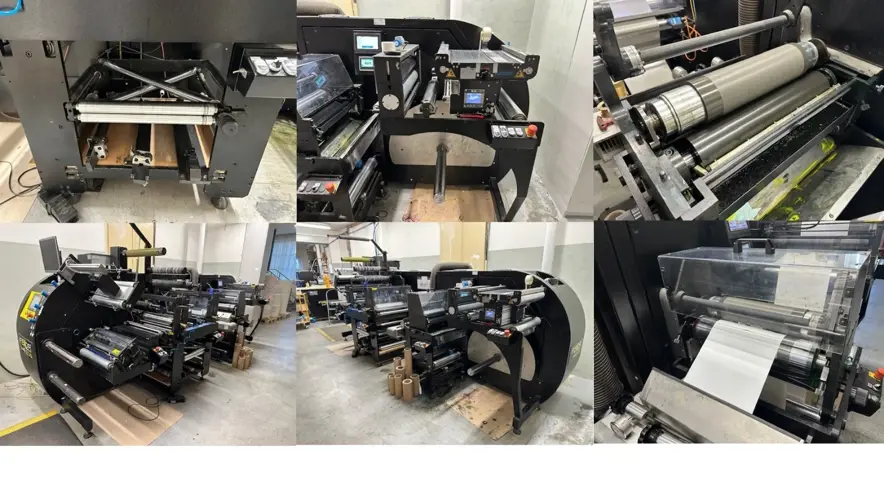

Flexor - SH 440

Machine Description

Maximum speed: 300 m/minute.
.
Maximum speed with flexo printing/coating (UV): 100 m/minute.
.
Maximum speed with flexo printing/coating (IR): 70 m/minute.
.
Maximum web width: 440 mm.
.
Minimum web width: 200 mm.
.
UNWINDER.
.
Maximum Roll diameter: 900 mm.
.
Pneumatic Unwind Spindle 76 mm.
.
DOUBLE-REWINDER.
.
Maximum rewind diameter one rewind: 500 mm.
.
Maximum rewind diameter two rewinds: 350 mm.
.
2 x Pneumatic Rewind Spindle 76mm.
.
SLITTING UNIT.
.
Cassette-type Shear Cutting Unit.
.
Minimum cut width: 20 mm.
.
Shear cutting knives 5 Pc..
.
Slitting between two servo-driven NIP Rollers rewinding of loose rolls without compromising slitting quality 1 Set.
.
TENSION CONTROL.
.
Accurate tension control, which is set in Newtons rather than using a potentiometer.
.
Servo driven NIP Rollers and Rewinders.
.
Diameter control on all rewinds and unwinds.
.
COUNTERS.
.
Meter and decimeter counter.
.
Label counter.
.
Automatic ramp-up and ramp-down of speed according to label length.
.
Machine Lifetime Counter.
.
Daily Job production timer.
.
Machine RUN Timer (not counting when machine is stopped).
.
E+L Webguide.
.
Splice Table adjustable with pneumatic clamps.
.
PLC Controlled System / Touchscreen.
.
Roll end sensor with programmable auto-stop (automatic stop at roll end).
.
DOUBLE DIE CUTTING.
.
Maximum working width: 440 mm.
.
Lateral register: ± 3 mm.
.
Matrix strip rewind diameter: 600 mm.
.
Maximum Magnetic cylinder size: 24 (192T) inch.
.
Registration between die-cutting stations by web path elongation.
.
Pneumatic pressure roll for matrix strip rewind.
.
FLEXO PRINTING UNIT.
.
Maximum paper width: 440 mm
