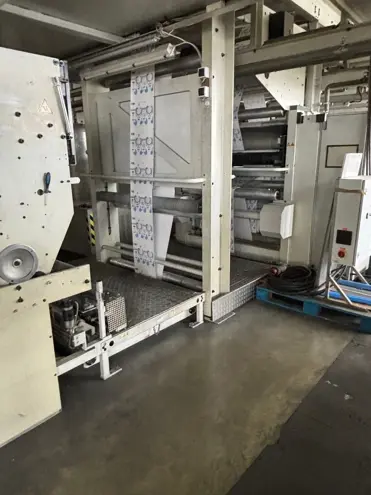

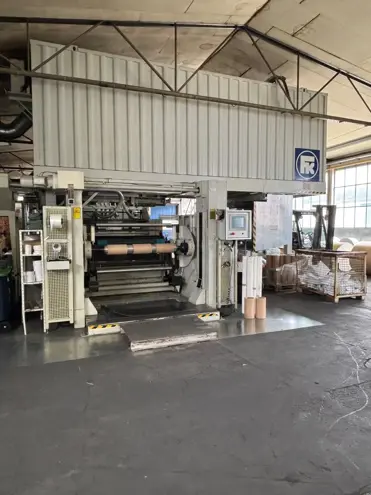

Fischer & Krecke - Flexpress 16S-8

Machine Description

Counter around 120,000 km/ 20.000 hours.
.
Number of printing units: 8 colors.
.
Maximum print width: 1,250 mm.
.
Minimum material width: 650 mm.
.
Maximum material width: 1,300 mm.
.
Minimum print length: 320 mm.
.
Maximum print length: 800 mm.
.
Maximum mechanical performance: 460 m/minute.
.
Maximum Roll diameter: 1,000 mm (unwinder/rewinder).
.
Core equipment: 70, 76, 100, 150 mm.
.
Automatic roll change for unwinder & rewinder.
.
Column lifting system for shaft unwinder/rewinder.
.
Digital printing unit control with servo drive.
.
Currently printed materials: Papers with grammage 50-500 g.
.
Materials: OPP: 15-35 microns, OPA: 15 microns, PET: 12-15 microns, CPP: 20-50 microns, LDPE: 20-100 microns.
.
Water-based inks.
.
Sound dampened: 85 dBA (VBG121) 2.
.
Compressed air cleaning system (7 bar).
.
Cooling water circuit with temperature control.
.
Clamping shaft system also for film materials.
.
Sleeves: Set for print widths from 60-1250 mm.
.
Print cylinders: Set for print lengths from 440-660 mm
