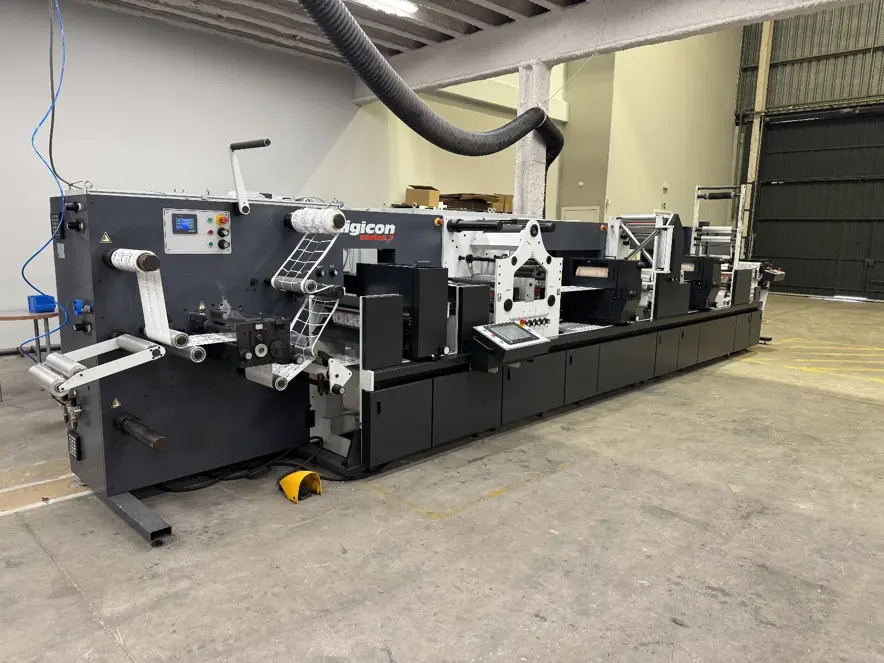

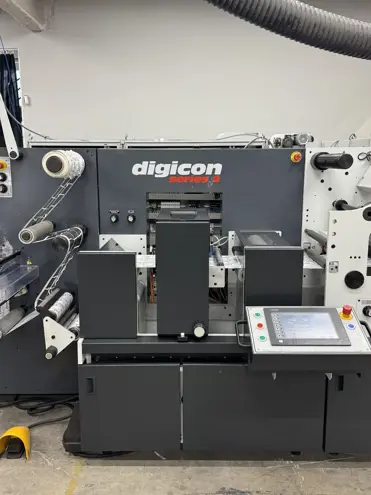

ABG - Omega Digicon 2

Machine Description

Complete overhauled.
.
Machine built to work right to left.
.
Unwind - 700 mm unwind, electronic web guide (edge guide sensor), splice table and web clamps, auto brake tension control..
.
Corona treatment Vetaphone.
.
Infeed nip drive section, infeed dancer..
.
Delam/relam module for printing on adhesive in either full or semi-rotary section with Air.
.
assist turn bar.
.
1st Semi rotary flexographic printing station with quick change cassette comprising.
.
stainless steel ink pan, pick-up roller, ceramic anilox roller, and reverse angle doctor blade..
.
The station has auto pre-positioning and servo drive re-register.
.
GEW air-cooled UV curing unit 140w/cm.
.
2nd Semi rotary flexographic printing station with quick change cassette comprising.
.
stainless steel ink pan, pick-up roller, ceramic anilox roller, and reverse angle doctor blade..
.
The station has auto pre-positioning and servo drive re-register.
.
GEW air-cooled UV curing unit 140w/cm.
.
Over laminating station suitable for super varnish, cold foil, self-wound and lamination.
.
with carrier with soft laminating option.
.
Mid-press dancer to allow full rotary coating.
.
Semi rotary die cutting station with 25,5” magnetic cylinder (24” maximum repeat)..
.
Outfeed nip drive section, outfeed dancer..
.
Waste matrix stripping (maximum diameter 600mm).
.
Rewind.
.
Scissor slitting, including 5 knives and removable knife shafts.
.
Back Scorer used for edge trimming the silicon carrier.
.
Single spindle rewind with variable tension control, 76mm air expanding shaft.
.
label length counter with batch and pause facility.
.
Second rewind shaft with 76mm shaft.
.
Maximum web width: 330 mm.
.
Minimum web width: 180mm.
.
Maximum repeat length: 24” (609,6 mm).
.
Minimum repeat length: 2” (50,8 mm).
.
Rewind maximum diameter: 500 mm.
.
Print cylinder: 25,5”.
.
Coating cylinder: 320 mm.
.
Flexo plate: 1,7mm.
.
Tape 0,38 mm.
.
Anilox 1 400LPI 6,4cm3/m2.
.
Anilox 2 400LPI 6,4cm3/m2...
