Machine Description

KDO Seeltec 250 (2000).
Max.Size: 33 x 25 cm (12 x 9 inch).
.
Width 25 cm.
printing roll to roll.
cut off max 333mm.
max diamter roll 76 cm.
max speed 200m.
6 color flexo UV LACK.
double side printing.
De lamination.
Re lamination.
Lamination.
Delamination.
Perfector.
3 die cutting.
Drying GEW UV.
Drying lack UV

ModelKDO-Seeltec 250
ManufacturerKDO
Year2000
Machine AvailabilityImmediately
Machine ConditionIn Stock
PriceOn Request
LocationEurope Eastern

About KDO - Seeltec 250

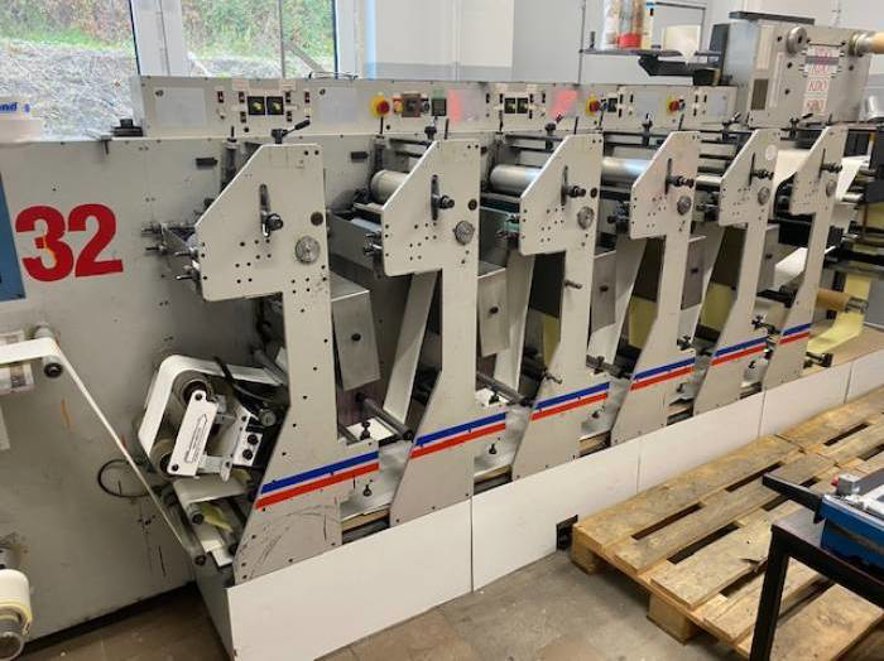

The KDO Seeltec 250 is a high-performance, narrow-web flexographic printing press, designed for the label and packaging industry. This machine is categorized as a flexographic printing press, primarily used for printing self-adhesive labels, flexible packaging materials, and other narrow-web applications. Key features of the KDO Seeltec 250 include its high-speed printing capabilities, advanced registration system, and user-friendly operating interface. The benefits of this machine include improved productivity, enhanced print quality, and reduced waste. Typical applications of the KDO Seeltec 250 include label printing, flexible packaging, and specialty printing for the pharmaceutical, cosmetic, and food industries.

Key Technical Aspects:

Dimensions and Specifications :The KDO Seeltec 250 has a maximum web width of 250 mm and a maximum repeat length of 350 mm. The machine's weight is approximately 3,500 kg, and it has a footprint of 6.5 meters in length and 1.8 meters in width. The press is capable of handling a wide range of substrates, including paper, film, and foil, with a thickness range of 12-200 microns.

Paper Handling :The KDO Seeltec 250 features a splicing table for easy web changeovers, a dancer-controlled unwind system, and a rewind system with a maximum diameter of 600 mm. The machine is equipped with a high-capacity input tray, capable of holding up to 1,000 meters of material, and an output tray with a capacity of up to 800 meters.

Printing Unit :The KDO Seeltec 250 is equipped with up to 8 printing units, each with a maximum printing speed of 200 meters per minute. The press features a high-resolution printing system, with a maximum resolution of 508 dpi, and utilizes a UV-curing system for fast drying and high-quality prints.

Ink System :The KDO Seeltec 250 uses a closed-loop ink system, with a chambered doctor blade system for precise ink control. The machine is capable of handling a wide range of ink types, including UV, water-based, and solvent-based inks, with a maximum ink capacity of 10 kg per color.

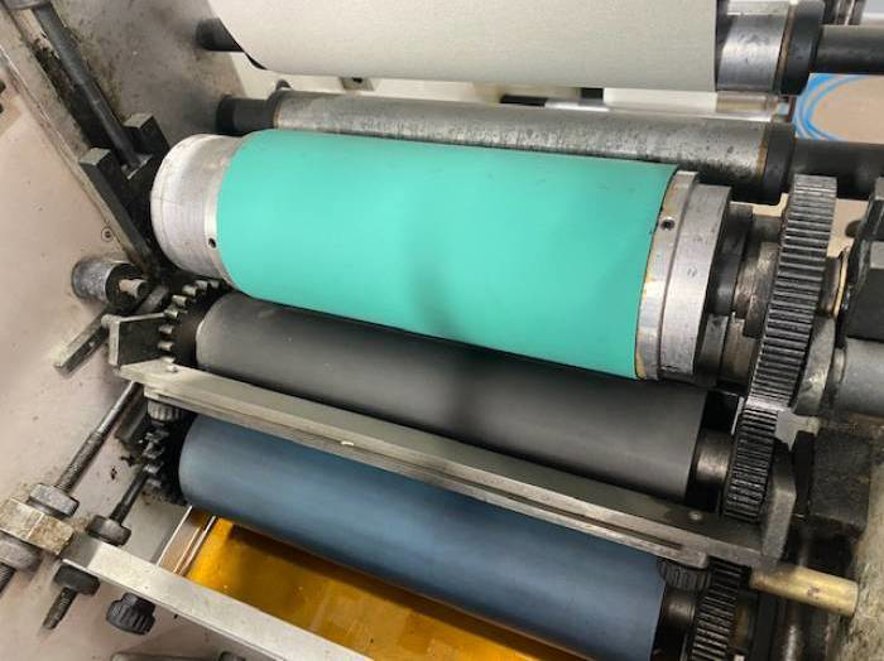

Plate Cylinder :The KDO Seeltec 250 features a plate cylinder with a maximum diameter of 350 mm and a maximum plate width of 250 mm. The plate cylinder is designed for easy plate changeovers and features a pneumatic clamping system for secure plate mounting. The machine is capable of handling a wide range of plate materials, including photopolymer and metal plates.
