GiDue - Combat 430

Key Technical Aspects:

Dimensions and Specifications : The GiDue Combat 430 has a length of 13,120 mm, a width of 2,500 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 300 m/min. The machine is capable of handling web widths up to 1,300 mm and has a maximum repeat length of 800 mm.

Paper Handling : The Combat 430 features a high-capacity unwinder with a maximum diameter of 1,200 mm and a maximum weight of 2,000 kg. The machine is equipped with a precision registration system and a high-speed sheeter with a cutting width of up to 1,300 mm. The output system includes a rewind unit with a maximum diameter of 1,200 mm and a maximum weight of 2,000 kg.

Printing Unit : The printing unit of the Combat 430 features 8-10 colors and is equipped with GiDue's advanced drying system, which ensures fast and consistent drying of inks. The machine has a maximum printing speed of 300 m/min and a resolution of 508 dpi. The printing technology used is flexographic, with a plate cylinder diameter of 430 mm and a screen ruling of up to 150 l/cm.

Ink System : The Combat 430 uses a solvent-based ink system with a capacity of 20 liters per color. The machine features a closed-loop ink circulation system, which ensures consistent ink viscosity and reduces waste. The ink system also includes a temperature control system, which allows for precise temperature control during the printing process.

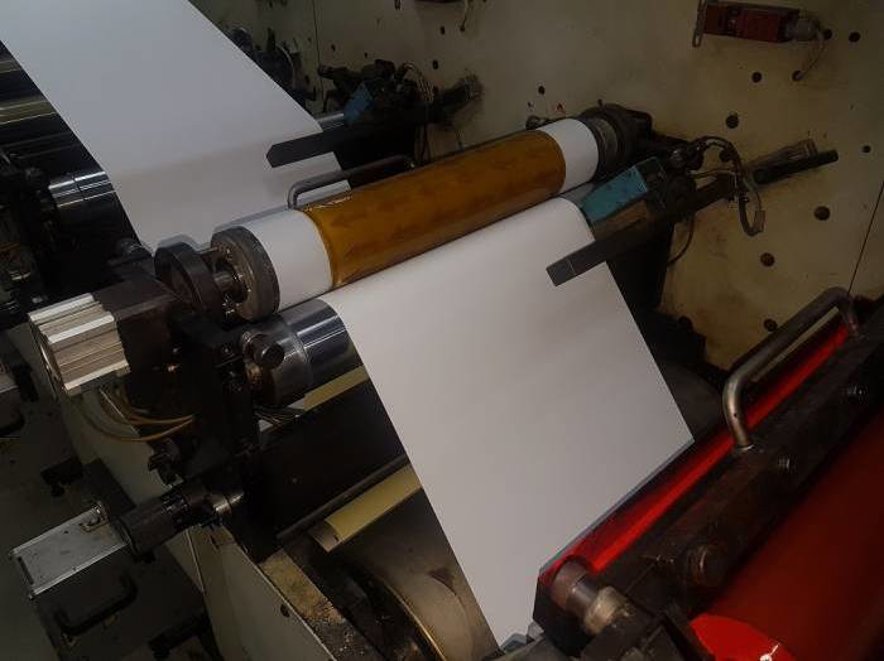

Plate Cylinder : The plate cylinder of the Combat 430 has a diameter of 430 mm and a length of 1,300 mm. It is designed for high-speed printing and features a precision-engraved ceramic coating for optimal ink transfer. The plate cylinder is equipped with a pneumatic clamping system, which ensures fast and easy plate changes.
