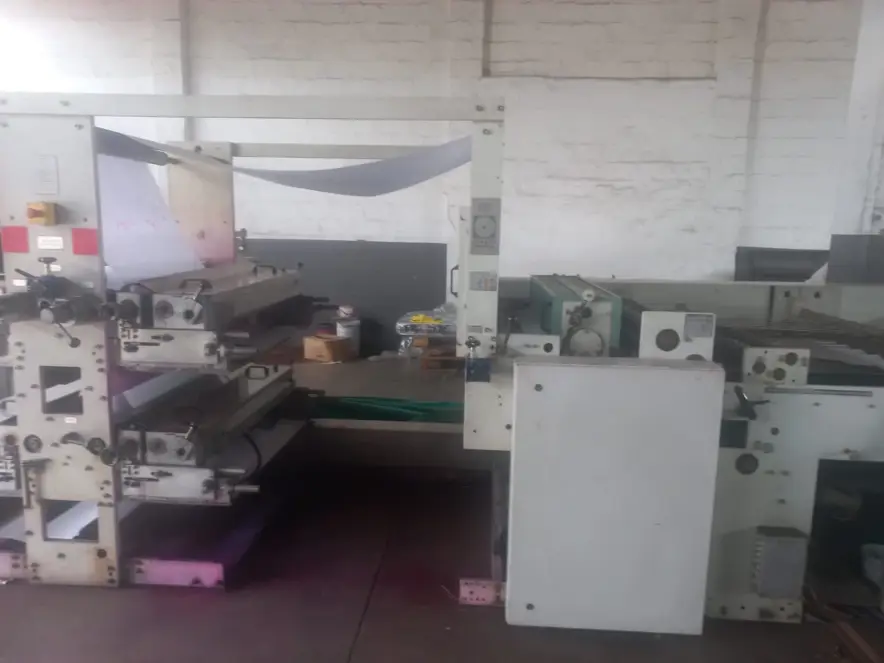

E C H Will - Alpha RF

Machine Description

Maximum mechanical paper speed: 300 m/minute.
.
Minimum paper speed: 60 m/minute.
.
Productivity: 14.000 books/hour.
.
Maximum reel width: 960 mm.
.
Minimum reel width: 580 mm.
.
Maximum reel diameter: 1200 mm.
.
Maximum printing length(cylinder circumference): 670 mm.
.
Minimum printing length: 300 mm.
.
Minimum cut-off length – cross cutter: 300 mm.
.
Maximum cut-off length: 500 mm.
.
Maximum size finished product: 245x480 mm.
.
Minimum size finished product: 145x145 mm.
.
Maximum sheet count(unfolded): 50.
.
Maximum thickness(unfolded): 5 mm.
.
Equipped for book sizes: A4 and A5.
.

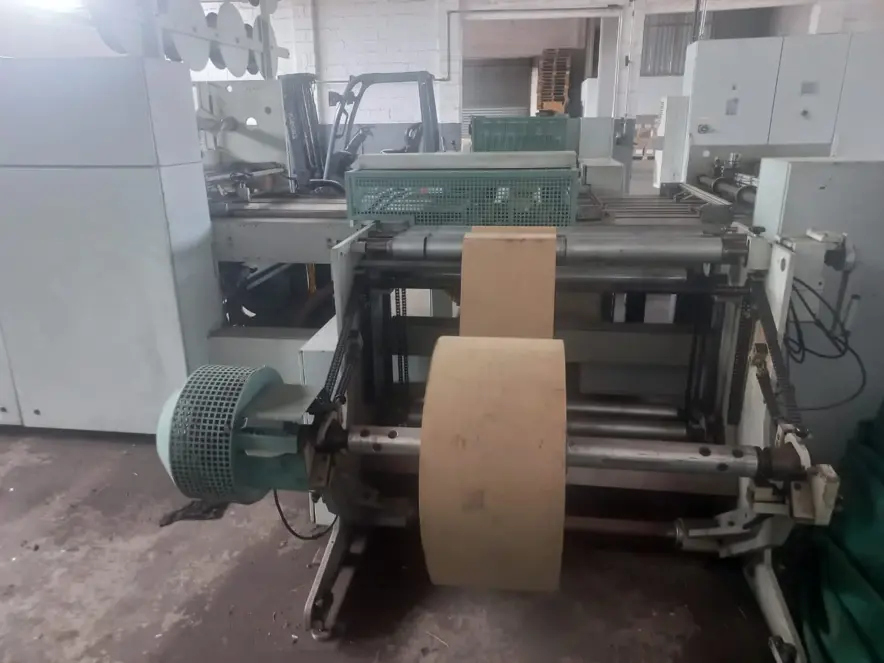

Reeling Unit.
.
1 x reeling unit, shafted, complete with.
.
1 x paper decurling device.
.
1 x dancer system.
.
1 x air cooled disc brake.
.
1 x reel shaft  - inner core diameter 76mm.
.
1 × 2nd reel shaft for preparation of new reel inner core diameter 76mm.
.
Ruling Tower.
.
1 x ruling tower for a maximum 4 ruling inkers equipped with.
.
4 x transverse inker for ruling cylinders.
.
4 x counter pressure cylinder, chromium plated.
.
2 x ink system.
.
4 x rubber ink transfer roller.
.
Ruling Material.
.
4 x sleeve carrier for A4 Books (without sleeves) for printing length 430 mm.
.
4 × sleeve carrier for A5 books (without sleeves) for printing length 610 mm.
.
24 x sleeve for A4 Books for printing length 430 mm.
.
8 x sleeve for A5 Books for printing length 610 mm.
.
Cross Cutting Unit.
.
1 x 1-knife cross-cutting system, which allows for quick and easy knife exchange and adjustment, equipped with:.
.
1 x set of cross-cutting knives (rotating top and fixed bottom knife).
.
2 x size gear wheel (one set per cut-off length) for cut-off lengths for A4 and A5 books.
.
Sheet Overlapping Unit.
.
1 x sheet overlapping.
.
Sheet Counting and Collating Unit.
.
1 x sheet counting and collating unit controlled by interchangeable sheet size regulating count timing belt pulleys.
.
4 × timing belt pulley (one set per sheet count) for 32, 36, 48, and 72 pages.
.
Reel-Fed Cover Sheet Inserter.
.
1 x reel-fed cover inserter with: inner core diameter 76 mm max reel diameter 1.200 mm.
.
1 x standard inker for rubber cylinders with:.
.
rubber ink roller.
.
chromium-plate anilox roller.
.
counter pressure cylinder.
.
anti-standstill motor.
.
1 ink system.
.
1 cross cutter.
.
2 x stereo cylinder, excluding stereos for (A4 and A5) for printing length 850 - 920 mm.
.
2 × sets of size-bound gear wheels for cross cutter of cover printer (A4 and A5).
.
Stitching Unit.
.
1 × stitching unit for round wire No. 24 - 26 unit operates in paper travel direction..
.
Minimal operating distance per stroke for reliable, accurate wire stitching for all book sizes equipped with.
.
9 x stitching heads (3x per pocket for A4 and 2x per pocket for A5).
.
9 x wire reel holder - wire reel weight max 15 kg.
.
 .
.
Sectional Folding Unit.
.
1 x sectional folding unit to centrally fold stitched book strips.
.
Square Back Pressing Unit.
.
1 × square back pressing unit to square-edge the book spine after folding.
.
Trimmer.
.
1 x fore-edge trimming knife.
.
3 x separating knife.
.
2 x lateral trimming knife cut, for optimum product quality and minimum vibration.
.
2 x set of distance pieces between top and bottom knives.
.
(one set per book size) for book sizes A4 an.
.
Book Discharge.
.
1 x overlapped product delivery for manual take-off.
.
Electric.
.
1 x device for maintaining suitable temperature.
.
for electronic components in switch cabinets necessary from +25° C and effective up to +40° C ambient temperature.
.
1 x electrical equipment in accordance with EC/EN.
.
layout: 400 volt, 3 phases, 50 Hz.
.
 ...
