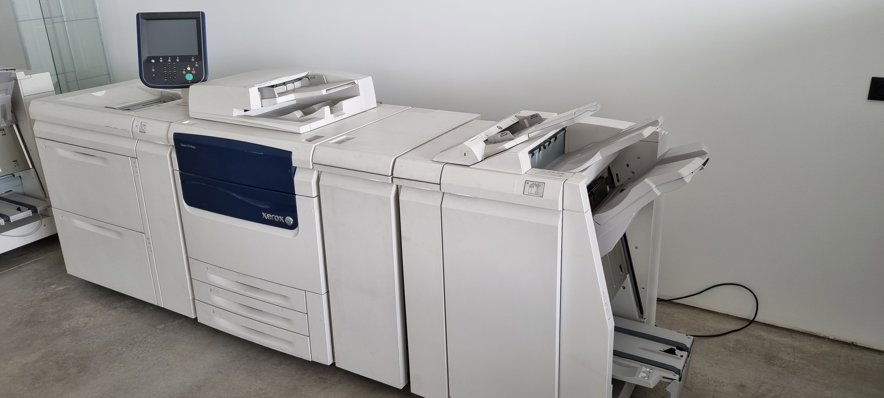

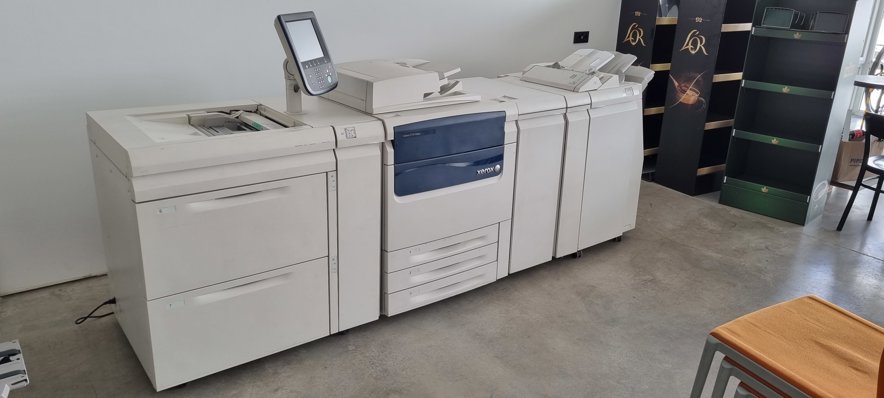

Xerox - Color C75 Press

Key Technical Aspects:

Dimensions and Specifications : The Xerox Color C75 Press measures 144 inches (365.76 cm) in length, 43 inches (109.22 cm) in width, and 63 inches (160.02 cm) in height. It weighs approximately 4,400 pounds (1,996 kg) and has a maximum power consumption of 13.5 kW. The press has a maximum monthly duty cycle of 1.5 million impressions.

Paper Handling : The Xerox Color C75 Press features a versatile paper handling system, including a 10,000-sheet high-capacity feeder, a 2,000-sheet intermediate feeder, and a 5,000-sheet output stacker. The press can handle paper sizes ranging from 3.5 x 3.5 inches (8.89 x 8.89 cm) to 13 x 19.2 inches (33.02 x 48.77 cm) and supports weights up to 350 gsm.

Printing Unit : The Xerox Color C75 Press features a high-speed printing unit capable of producing up to 75 ppm (pages per minute) in color and 85 ppm in black and white. The press uses Xerox's proprietary Emulsion Aggregate (EA) toner and has a print resolution of up to 2,400 x 2,400 dpi.

Ink System : The Xerox Color C75 Press uses a dry toner ink system, with four-color (cyan, magenta, yellow, and black) toner cartridges. Each cartridge has a capacity of up to 30,000 pages (based on 5% coverage).

Plate Cylinder : The Xerox Color C75 Press does not use a traditional plate cylinder, as it is a digital printing press. Instead, it uses a belt-based imaging system to transfer toner images directly onto the paper.
