Machine Description
Copy Method 4-coupled drum tandem laser electrostatic method.
Resolution Scan 600 dpi × 600 dpi.
Print 1,200 dpi (Equivalent to 3,600 dpi) × 1,200 dpi.
Gradation8-bit / 256 Gradation.
CPU Core i5 2400 3.1 GHz.
Pentium G850 2.9 GHz.
System Memory Capacity.
6 GB HDD 1.5 TB Original Type.
Sheet, Book, Solid object.
Max. Original Size A3 or 11×17.
Max. Printing Area 323 mm × 480 mm.
Output Size (S: Short Edge Feed ).
SRA3, A3, B4, A4, B5, 13 × 19, 11 × 17, 8 1/2 × 14, 8 1/2 × 11,5 1/2 × 8 1/2S Tab paper (A4, 8 1/2 × 11).
Max. 330 mm×487 mm, Min. 140 mm × 182 mm.
Multi-bypass(Option): SRA3, A3, B4, A4, B5, 13 × 19, 11 × 17, 8 1/2 × 14, 8 1/2 × 11, 5 1/2 × 8 1/2S.
Tab paper (A4, 8 1/2 × 11).
Max. 330 mm × 487 mm, Min. 100 mm × 148 mm.
Image Loss Max. 4 mm or less for top edge, Max. 4.5 mm or less for bottom edge,.
Max. 3.0 mm or less for right/left edges.
Warm-Up Time 390 seconds or less.
First Copy Out Time Colour.
7.1 seconds or less (A4, 8 1/2 × 11).
7.6 seconds or less (A4, 8 1/2 × 11).
Black and White.
5.9 seconds or less (A4, 8 1/2 × 11).
6.3 seconds or less (A4, 8 1/2 × 11).
Continuous Copy Speed.
Colour.
71 sheets/min. (A4).
38 sheets/min. (A3).
61 sheets/min. (A4).
33 sheets/min. (A3).
Black and White.
71 sheets/min. (A4).
61 sheets/min. (A4).
Copy Magnification.
Fixed Magnification.
Inch : × 1.000, × 2.000, × 1.545, × 1.294, × 1.214, × 0.785, × 0.772, ×0.647, × 0.500.
Metric : × 1.000, × 2.000, × 1.414, × 1.189, × 0.840, × 0.707, × 0.500.
Zoom Magnification.
× 0.250 to × 4.000 (Each 0.001 step).

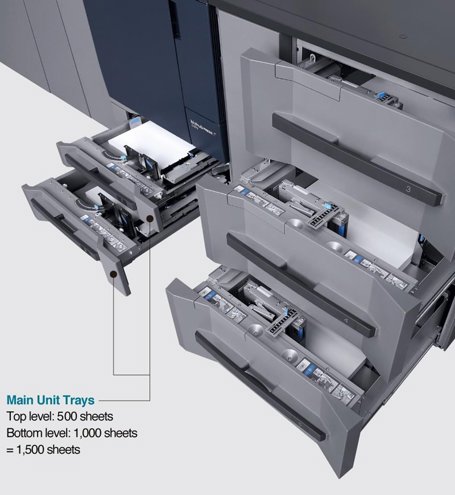

Tray Capacity Standard.
Tray 1 (500 sheets, 80 gsm).
Tray 2 (1,000 sheets, 80 gsm).
MB-506 (Multi-bypass, 250 sheets, 80 gsm)*1*2.
PF-602m (3,000 sheets × 2, 80 gsm)*1.
PF-707 (1,390 sheets × 2, 1,850 sheets × 1, 80 gsm)*1.
LU-202 (2,500 sheets × 80 gsm)*1.
Paper Weight Standard.
62 gsm to 256 gsm *3 (plain, Fine, Colour Specific).
81 gsm to 256 gsm *3 (Coated).
Continuous Copy Count.
Up to 9,999 sheets.
Power Source AC220 to 240V 20A, 50 Hz / 60 Hz.
Power Consumption:4,700W or less (Main body only).
Dimensions [W] × [D] × [H].
760 mm*4 × 903 mm*5 × 1,073 mm*6.
Weight Approximately 291 kg / 641 lb (Main body only)
| Model | Konica Minolta-1070 C |
|---|---|
| Manufacturer | Konica Minolta |
| Year | 2016 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Netherlands |
About Konica Minolta - 1070 C

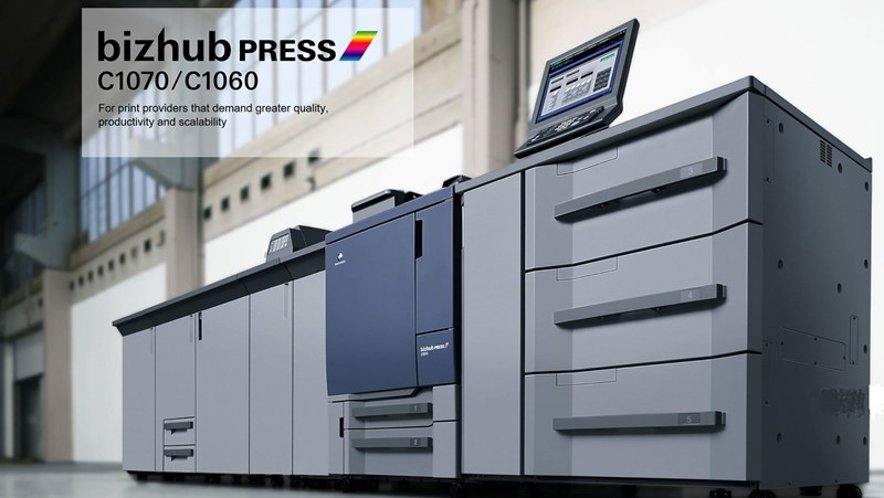

The Konica Minolta 1070 C is a high-performance, commercial-grade digital printing press designed for demanding print environments. Belonging to the category of cut-sheet digital presses, this machine is purpose-built for high-volume printing of a wide range of applications, including commercial printing, publishing, and graphic arts. Key features of the Konica Minolta 1070 C include its exceptional print quality, high-speed printing capabilities, and advanced paper handling system. The benefits of this machine include increased productivity, reduced operating costs, and enhanced print quality. Typical applications of the Konica Minolta 1070 C include printing of brochures, flyers, posters, and other marketing materials.
Key Technical Aspects:
Dimensions and Specifications : The Konica Minolta 1070 C has a footprint of 144.5 inches (367 cm) in length, 43.3 inches (110 cm) in width, and 63.8 inches (162 cm) in height. It weighs approximately 2,646 pounds (1,200 kg) and has a maximum power consumption of 10.4 kW. The machine has a maximum paper capacity of 13,000 sheets.
Paper Handling : The Konica Minolta 1070 C features a high-capacity paper handling system, comprising of six input trays with a total capacity of 9,000 sheets, and two output trays with a capacity of 4,000 sheets each. The machine supports a wide range of paper sizes, from 5.5 x 8.5 inches to 13 x 19.2 inches, and can handle paper weights from 55 to 350 gsm.
Printing Unit : The Konica Minolta 1070 C is equipped with a high-speed printing unit, capable of producing up to 70 pages per minute (ppm) in color and 85 ppm in monochrome. The machine features a print resolution of 1,200 x 1,200 dpi and uses Konica Minolta's proprietary Simitri HD E toner technology.
Ink System : The Konica Minolta 1070 C uses a dry toner-based ink system, with four-color (cyan, magenta, yellow, and black) toner cartridges. Each toner cartridge has a capacity of approximately 25,000 pages, and the machine features an automatic toner replenishment system.
Plate Cylinder : The Konica Minolta 1070 C does not have a plate cylinder, as it is a digital printing press that does not require traditional printing plates. Instead, the machine uses a photoconductor drum to transfer the image to the paper.
