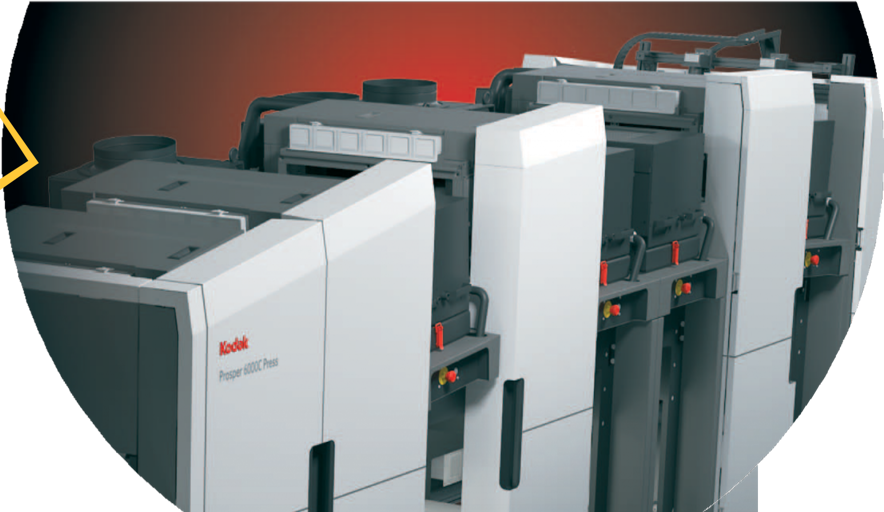

Kodak - Prosper 6000c Press

Machine Description

Throughput Up to 1,000 fpm (300 mpm), up to 4,364 A4 ppm, 8-, 12-, 16-page signatures****.
Image quality Approaching 200 lpi at 650 fpm (200 mpm); 133 lpi at 1,000 fpm (300 mpm).
Substrates Types: Uncoated free sheet groundwood and matte, glossy and silk coated papers.
42 - 270 gsm, 3 - 12 pt, 28# newsprint – 100# cover.
Roll width: 8 - 25.5 inches (20.3 – 64.8 cm).
Imaging system Technology: Kodak Stream Inkjet Technology.
Ink type: Kodak’s aqueous pigmented process color inks.
Jetting Modules: 4.16”, 48 Jetting Modules within a standard perfecting press.
Imaging width: Up to 24.45 (62.1 cm).
Variable cutoff: Up to 54” (137.2 cm).
Duty cycle: 90M A4 or letter pages/month*.
File formats PDF, PDF-VT, PPML/GA, PPML/VDX, VPS, PostScript, AFP.
Digital front end Kodak 700 Print Manager (Version 4.0 or higher is required) contains:.
• Kodak 700 Digital Front End contained in two cabinets with 1 Control Server and 8 Print Process Servers.
• Each server contains (at a minimum): Dual Quad Core Intel Xeon 2.33 GHz Processors, 6GB RAM, RAID with 1TB system.
storage, and 2TB for image processing, Microsoft Windows 2003 server OS.
• Hardware-accelerated image processing technology.
• Scaleable architecture, for expansion and customer-specific solutions.
• Connectivity: Ethernet TCP/IP 1Gbps twisted pair, IPDS (TCP/IP), or JDF/JMF.
• One cabinet containing the Kodak Prosper 720 Press Controller.
• Speed: Simultaneous RIP and print capability at up to 1,000 fpm (300 mpm)*****.
• JDF/JMF: Job ticket control, enterprise connectivity and workflow automation.
• Workflow: Open architecture allows integration into a wide variety of workflows, including Kodak Unified Workflow.
Solutions. CIP4 JDF compliant, Remote Client, Remote Job Ticketing, Hot folder file submission.
• IPDS connectivity.
Dimensions (L x W x H).
Standard configuration: 92 x 26 x 8 feet ( 28 x 8 x 2 m)**.
L-shaped: 52 x 64 x 8 feet (16 x 20 x 2 m)**.
U-shaped: 50 x 43 x 8 feet (15 x 13 x 2 m)**.
Physical dimensions of press:.
Standard configuration: 68 x 16 x 8 feet (21 x 5 x 2 m).
L-shaped configuration: 44 x 52 x 8 feet (13 x 16 x 2 m).
U-shaped configuration: 40 x 43 x 8 feet (12 x 13 x 2 m).
Operating environment 60° to 85°F (16° to 30°C) @ 10 to 90% RH non-condensing; 85° to 104°F (30° to 40°C) @ 10 to 60% RH noncondensing;.
Altitude above sea level: 6,000 feet (1,830 meters) max..
Power Electrical voltage: 3-Phase 50-60Hz and 208-230 50-60h.
Consumption during operation at 650 fpm (200 mpm): 34.2 Kw (idle), 377.8 Kw (uncoated papers), 401.9 Kw (glossy and.
matte coated papers)***.
Consumption during operation at 1,000 fpm (300 mpm): 34.2 Kw (idle), 402.8 Kw (uncoated papers), 442.6 Kw (matte.
coated papers)***.
Consumables Jetting modules: Kodak Prosper Press Jetting Modules.
Inks: Kodak Prosper Press Pigment Cyan, Magenta, Yellow and Black Inks.
Other fluids: Kodak Prosper Press Storage Solution and Replenisher Fluid.
Ink supply: 208-liter drums (55 gal.).
Solutions Job submission: Kodak Insite Prepress Portal System.
Creation and organization: Kodak Insite Creative Workflow System and Kodak Insite Asset Library.
Production management: Kodak Prinergy Workflow v5.1 or higher.
Proofing: Kodak Matchprint Inkjet Proofing System and Kodak Matchprint Virtual Technology.
Asset management: Kodak Data Management Solutions.
Color management: Kodak Colorflow Software.
Qualified book finishing solutions: Available from Kodak authorized providers.
Optional: Auto-splicing and re-winder solutions available from Kodak authorized providers.
Optional accessories Kodak Color Toolkit Plus station.
Kodak Color Toolkit - All-inclusive bundle.
Kodak Prosper Press Jetting Module Recovery Station.
Auto Splicer (provided by Kodak partner).
Kodak’s Ink Estimator Software.
Prosper 6000C Press.
To learn more about solutions from Kodak:.
Visit kodak.com/go/6000.
Printed using Kodak Technology..
Eastman Kodak Company.
343 State Street.
Rochester, NY 14650 USA.
©Kodak, 2014. Kodak, ColorFlow, Insite, Matchprint, Prinergy,.
and Prosper are trademarks of Kodak..
U.CIJ.100.0914.en.
*Based on 24/7 operation at 70% uptime..
**Includes unwinder, optional rewinder and ink depot..
***Running power estimates at 25 – 30% CMYK ink coverage..
**** Actual speed and throughput may vary with a specific type of paper and quality expectation; glossy.
coated papers run up to 650 fpm (200 mpm) only..
*****Actual RIP speeds may vary based on complexity of jobs and compliance level of composition engines....
