Machine Description
Manufacturing year: 2016.
.
Installation year: 2017.
.
7 colors: CMYK and PMS.
.
Running time: 851 hours.
.
Maximum speed: 30 m/minute.
.
Thickness: 10 - 250 microns.
.
Maximum width: 762 mm.
.
Minimum width: 400 mm.
.
Maximum printing image: 736 x 1100 mm.
.
Maximum roll diameter: 100 cm.
.
Maximum roll weight: 850 kg.
.
Rewinder maximum roll diameter: 800 mm.
.
HP Smart Stream IN150 L & P server.
.
HP Smart Stream.
.
Chiller HD020A Hyundai Colling Capacity: Air-cooled type 56,000(at 15℃).
.
AVR TB120K 3 phase 3 wire 380V for input voltage.
.
3 phase 4 wire 400V for output.
.
Air compressor SLPS-55B.
.
Correction Printer HP Z3200 inkjet printer 24 inch with RIP.
.
PC HP Evny 750-Extreme 24-inch with monitor...

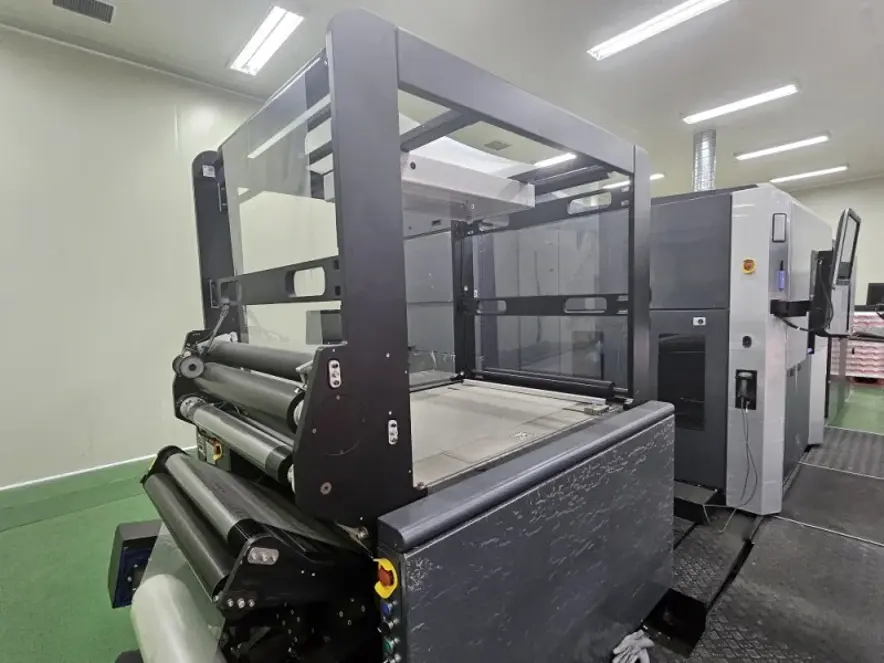

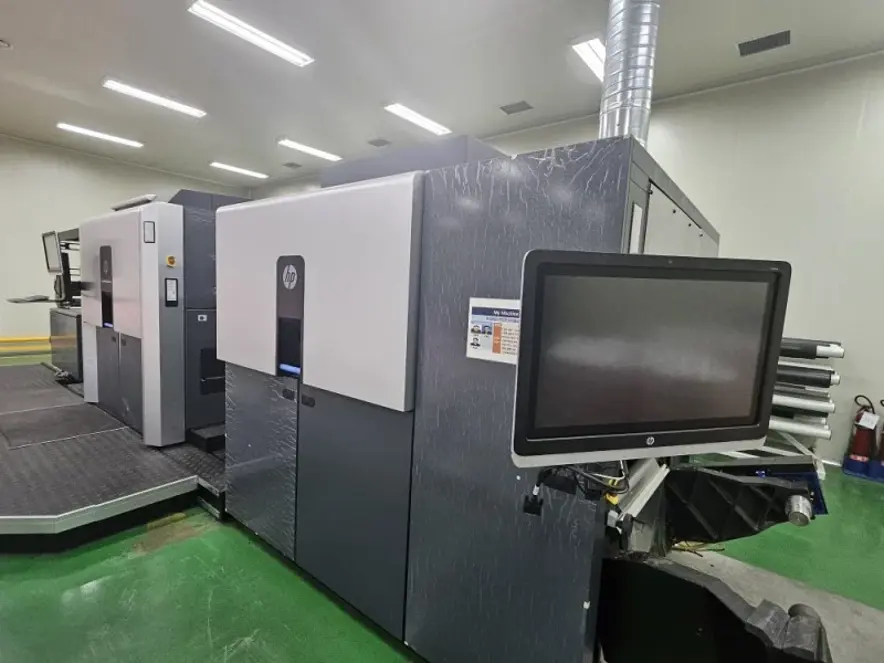

The HP Indigo 20000 is a high-performance digital press designed for commercial and industrial printing applications, offering exceptional print quality, versatility, and efficiency. As part of the Digital Press category, this machine excels in producing high-volume, short-run jobs with consistent color accuracy and sharp detail. Key features include a 7-color configuration (CMYK + PMS), a maximum printing speed of 30 meters per minute, and support for a wide range of substrates with thicknesses from 10 to 250 microns. The Indigo 20000 is ideal for applications such as packaging, labels, commercial print, and specialty printing, delivering cost-effective production with minimal setup time. Its advanced HP Smart Stream workflow and integrated server enhance productivity, while the robust build ensures reliability for demanding production environments.
Key Technical Aspects:
Dimensions and Specifications : The HP Indigo 20000, manufactured in 2016 and installed in 2017, has a running time of 851 hours. It operates with a maximum speed of 30 meters per minute and supports a maximum printing image size of 736 x 1100 mm. The machine accommodates rolls with a maximum diameter of 100 cm and a maximum weight of 850 kg, while the rewinder supports rolls up to 800 mm in diameter. Power requirements include an AVR TB120K for 3-phase 3-wire 380V input and 3-phase 4-wire 400V output. Cooling is provided by an air-cooled chiller (Hyundai HD020A) with a capacity of 56,000 BTU at 15°C, and an SLPS-55B air compressor is included for operational support.
Paper Handling : The press handles substrates with thicknesses ranging from 10 to 250 microns and supports widths from 400 mm (minimum) to 762 mm (maximum). It is equipped to manage large rolls with a maximum diameter of 100 cm and a maximum weight of 850 kg, ensuring efficient material handling for high-volume production.
Printing Unit : The HP Indigo 20000 features a 7-color printing system (CMYK + PMS) for vibrant and accurate color reproduction. The machine includes an HP Smart Stream IN150 L & P server and workflow software to optimize print jobs, along with a correction printer (HP Z3200 inkjet printer, 24-inch with RIP) for precise color calibration. The system is supported by an HP Envy 750-Extreme PC with a 24-inch monitor for seamless operation and control.
Ink System : The press utilizes HP ElectroInk technology, delivering high-quality, consistent color output with sharp detail and smooth gradients. The 7-color configuration (CMYK + PMS) enables accurate spot color matching and expanded color gamut for specialized printing applications.
| Model | HP-Indigo 20000 |
|---|---|
| Manufacturer | HP |
| Year | 2016 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | South Korea |
HP - Indigo 20000
