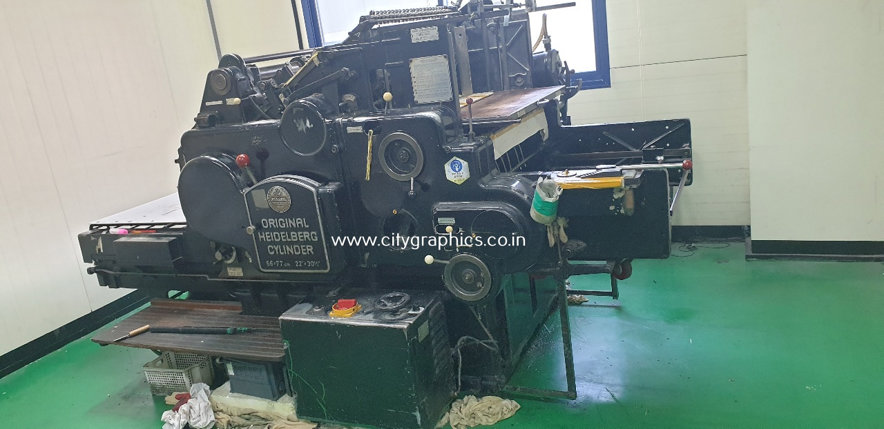

Heidelberg - SBG Cylinder

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg SBG Cylinder has a length of 7,320 mm, a width of 2,440 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size capacity of 750 x 1,060 mm.

Paper Handling : The SBG Cylinder features a highly advanced paper handling system, including a feeder with a capacity of up to 5,000 sheets, a delivery system with a capacity of up to 10,000 sheets, and a sheet-reversing device for perfecting applications. The machine is also equipped with a precision registration system, ensuring accurate sheet alignment and registration.

Printing Unit : The printing unit of the SBG Cylinder is capable of producing up to 15,000 sheets per hour at a maximum print resolution of 300 lpi. The machine uses a conventional offset printing process with a maximum printing pressure of 400 kN. The printing unit is also equipped with a variety of features, including anilox roller technology, a dampening system, and a drying system.

Ink System : The SBG Cylinder uses a conventional offset ink system, with a maximum ink capacity of 20 kg per color. The machine is equipped with a high-precision ink metering system, ensuring consistent and accurate ink transfer.

Plate Cylinder : The plate cylinder of the SBG Cylinder has a diameter of 1,060 mm and is designed for high-speed printing applications. The plate cylinder is equipped with a precision plate clamping system, ensuring accurate plate registration and consistent print quality.
