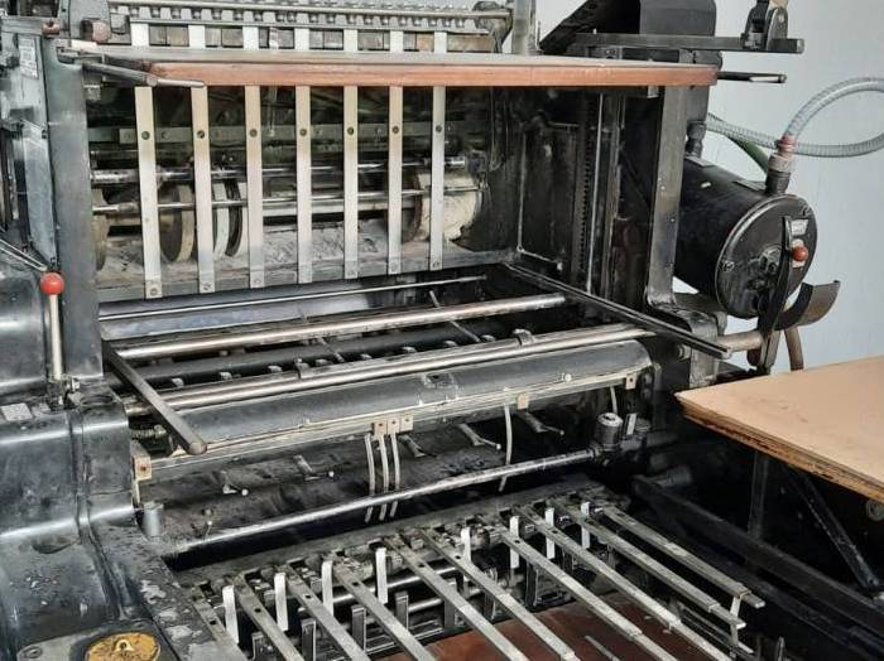

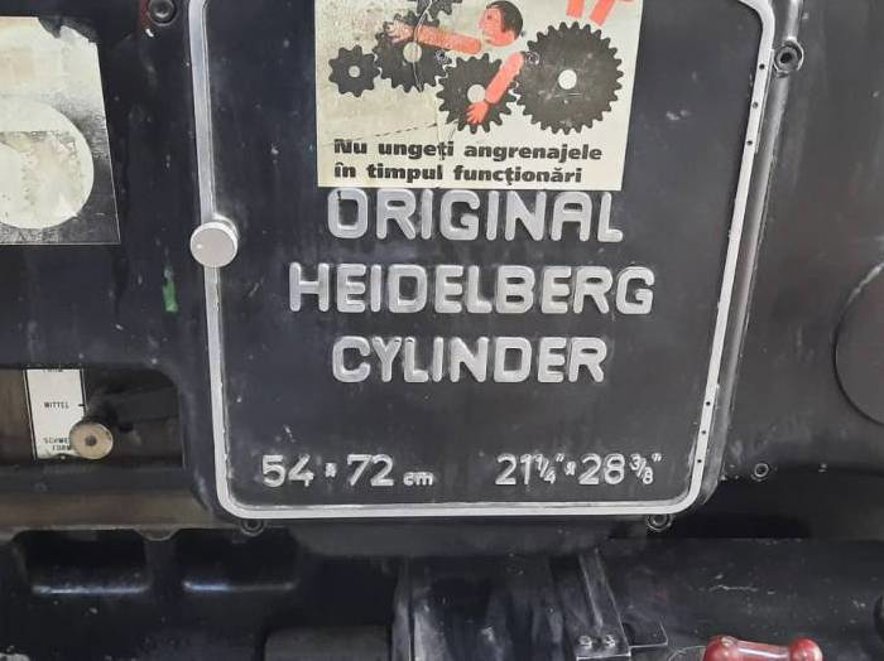

Heidelberg - S Cylinder

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg S Cylinder has a length of 5,500 mm, a width of 1,800 mm, and a height of 2,200 mm. It weighs approximately 4,500 kg and has a maximum sheet size capacity of 740 x 1,040 mm.

Paper Handling : The press features a high-capacity feeder with a maximum pile height of 1,500 mm, capable of handling paper weights ranging from 80 to 500 gsm. The delivery system includes a high-speed sheet delivery with a maximum speed of 18,000 sheets per hour.

Printing Unit : The Heidelberg S Cylinder is equipped with a high-precision printing unit featuring a maximum printing speed of 18,000 sheets per hour. The press uses a conventional offset printing process with a resolution of 254 lpi (lines per inch) and a maximum printing area of 720 x 1,020 mm.

Ink System : The press features a high-performance ink system using conventional offset inks with a maximum ink capacity of 20 kg per color. The system includes an automatic ink supply and a high-precision ink metering system for consistent color reproduction.

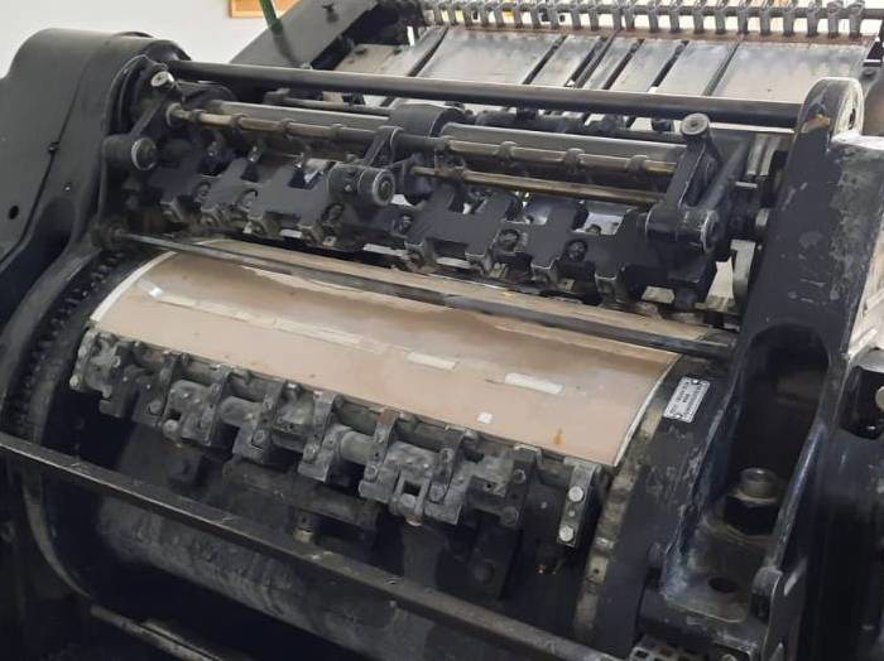

Plate Cylinder : The plate cylinder has a diameter of 1,040 mm and is designed for high-precision plate registration. The cylinder features a quick-change system for fast plate changes, reducing downtime and increasing productivity.
