Machine Description
Hour counter: 49,000.
Sheets: 58 966 800.
.
Non Stop Feeder.
Left hand Pull Lay.
Die Cut Station.
2 Chases & Plates.
Stripping Station.
Blanking Station.
Quick Lock System.
1mm Cutting Plates.
.
Speed: 8000 sheets/h.
Punching force: 2,5 MN (250 tones).
Sheet size: 104 x 74 cm max 40 x 35 cm min.
Sheet thickness: 0,4 cm.
Punching with gripper margin: 104 x 71 cm.
Punching without gripper margin:104 x 74 cm.
Gripper margin adjustable: 9-17 mm.
Embossing format: 104 x 71 cm.
Punching line height: 23,8 mm.
Height of embossing plate: 6,35 / 7 mm.
Material: Paper from 80/90 g/m².
Solid board 250 to 2000 g/m²Corrugated board E and B up to 4 mm
| Model | Bobst-SP 104 ER |
|---|---|
| Manufacturer | Bobst |
| Year | 1997 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | United Kingdom |

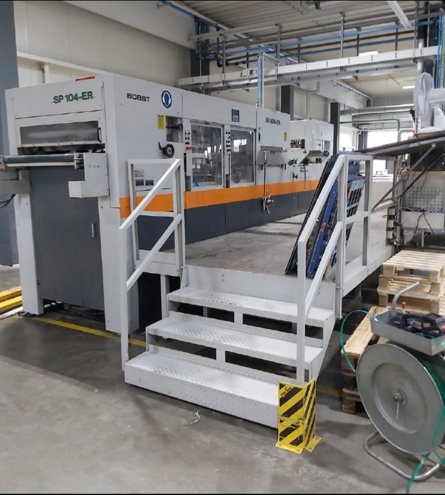

About Bobst - SP 104 ER
The Bobst SP 104 ER is a die-cutting machine designed for the converting and packaging industry. This machine is specifically engineered for high-speed die-cutting of paperboard, corrugated cardboard, and other materials. Key features of the SP 104 ER include its high precision, reliability, and versatility, making it an ideal solution for a wide range of applications, from simple to complex die-cutting tasks. The machine's benefits include increased productivity, reduced waste, and improved product quality, making it a valuable asset for companies in the packaging and converting industry.
Key Technical Aspects:
Dimensions and Specifications : The Bobst SP 104 ER has a length of 4,400 mm, a width of 1,800 mm, and a height of 1,800 mm. The machine weighs approximately 4,500 kg and has a maximum die-cutting force of 400 tons.
Paper Handling : The SP 104 ER features a feeder system with a maximum sheet size of 1,040 mm x 740 mm and a minimum sheet size of 400 mm x 300 mm. The machine is equipped with a vacuum-assisted sheet transport system and a precision register system for accurate sheet alignment.
Die-Cutting Unit : The die-cutting unit is designed for high-speed operation, with a maximum speed of 8,000 sheets per hour. The machine features a precision die-cutting system with a cutting force of up to 400 tons and a cutting accuracy of ±0.1 mm.
Tooling : The SP 104 ER uses a quick-change die system, allowing for fast and easy die changes. The machine is compatible with a range of die formats, including flat dies, rotary dies, and Braille dies.
Electrical and Control Systems : The machine is equipped with a state-of-the-art control system, featuring a touchscreen interface and advanced automation capabilities. The electrical system is designed for low energy consumption and reduced maintenance.
