Polar - 137XT-AT

Cutting Machine Polar 137XT-AT
Cutting Machine Polar 137XT-AT
Cutting Machine Polar 137XT-AT
Cutting Machine Polar 137XT-AT
Cutting Machine Polar 137XT-AT
Cutting Machine Polar 137XT-AT

Machine Description

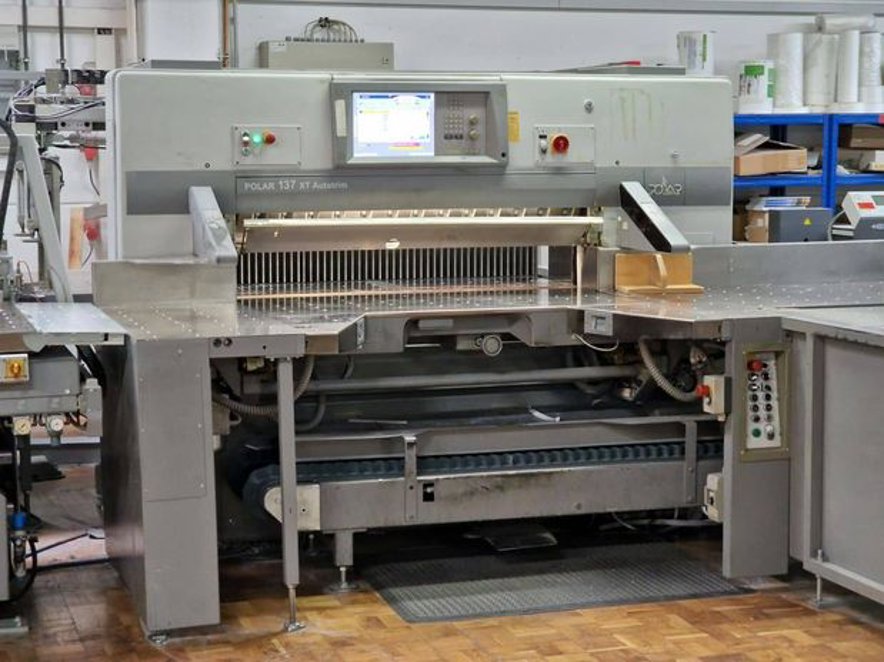

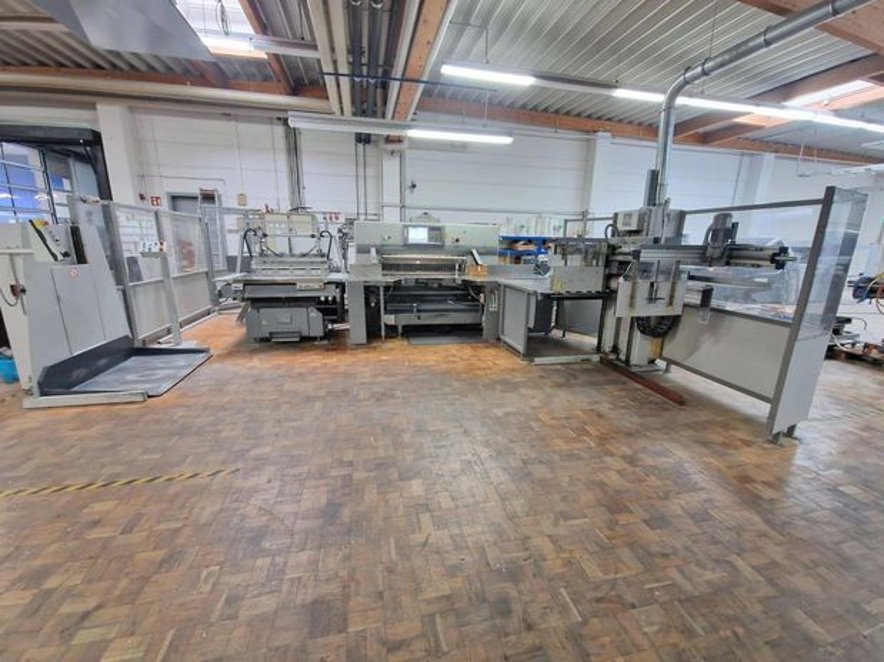

Schneidlinie Autotrimm PACE / Cutting Line Autotrimm Polar 137XT-AT PACE.
Schneidlinie Lift Rüttler Ablader / Cutting Line Lift Jogger Unloader.
.
Year 2004 - Serial-No. 7441238.
Schnittbreite / Cutting width max. 1370mm.
Autotrimm.
Programm - Duisplay / Program - Display.
Lufttisch - Chromtisch / Light guard - chrome table.
große-Luft-Seitentische / large airbed side tables.
Lichtschranke / Light guards.
Ersatzmesser / Spare knives.
CE-Zeichen-Zulassung / CE Certificate.
Elektr. Anschluss / Power supply 3 Phase 380V - 10A.
.

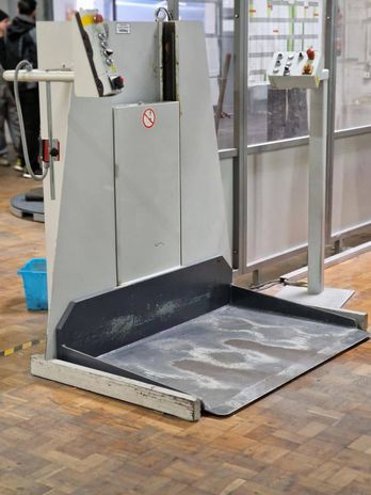

Stapellift / Stack Lift Polar LW 1000-4.
Baujahr / Year 2004 - Serial-No. 7493313.
Palettengröße / Pallet size max. 800 x 1.200mm.
Wannengröße / Size of platform 840 x 1.270mm.
Hub / Stroke max. 850mm.
Tragkraft / Carrying capacity max. 1.000kg.
.

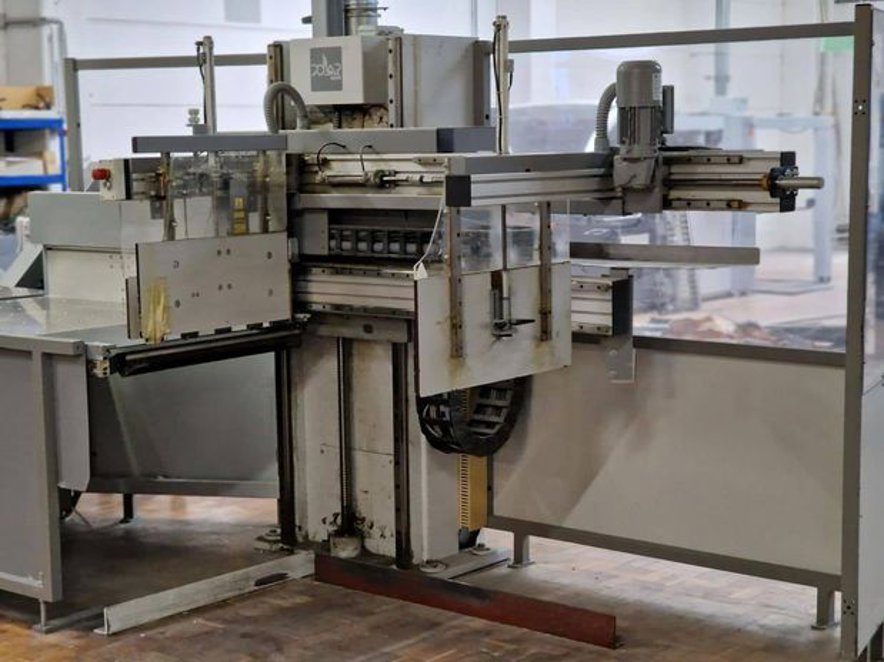

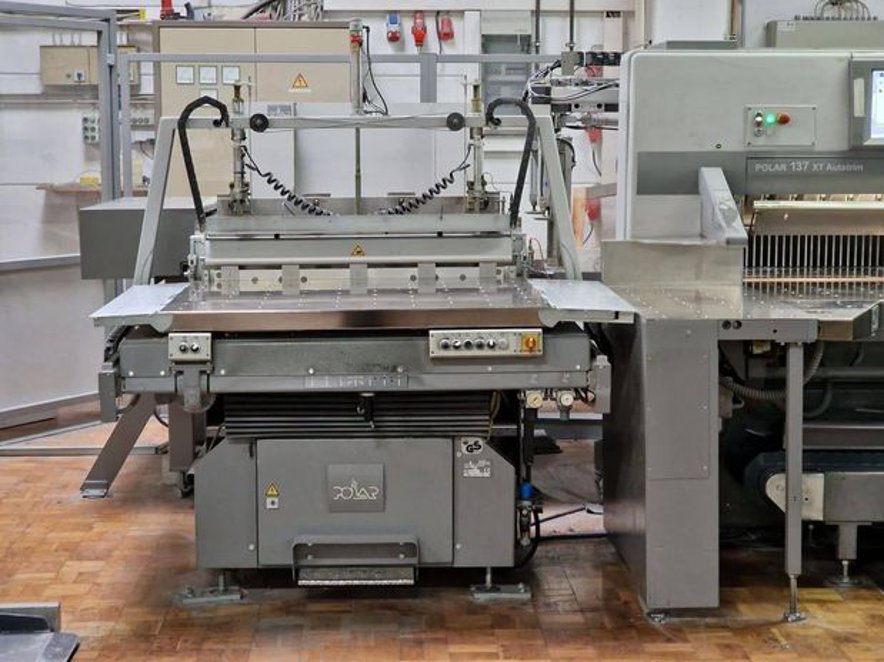

Rüttelautomat Luftausstreichwalze / Automatic Jogger air-removing roller Polar RAH-4.
Entladung zur Hintertischbeschickung / unloading for rear-table feeding.
Baujahr / Year 2004 - Serial-No. 7484103.
Tischgröße / Size of table 900 x 1.150mm.
Ausschiebeformat / Pusher size max.max. 750 x 1.140mm.
Lagenhöhe / Height of ream min. 30mm - max. 140mm.
.

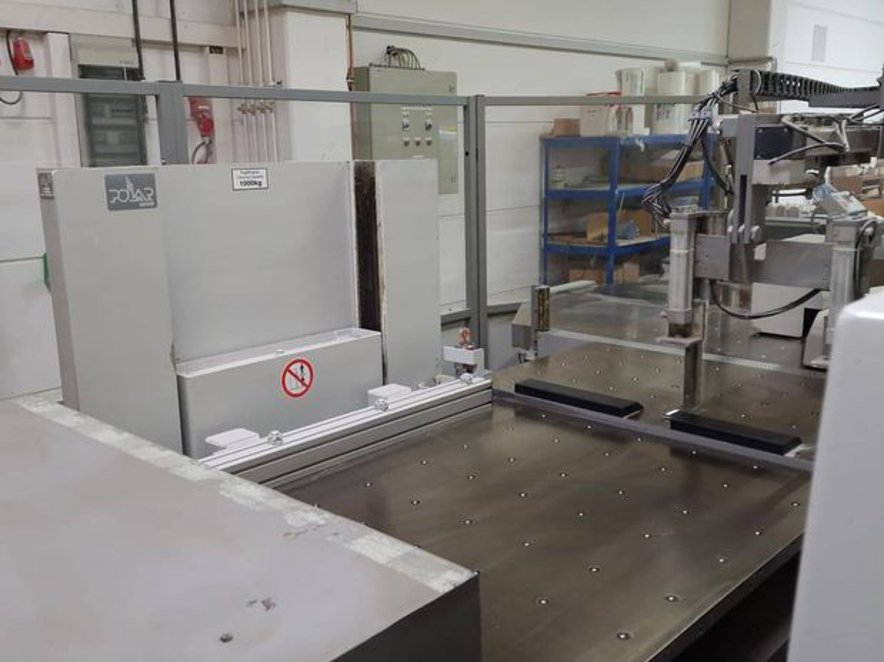

Stapelregal / Piling-board shelf Polar STR-1000-4.
Baujahr / Year 2006 - Serial-No. 7475003.
Format min. 420 × 570mm - max. 750 × 1.140mm.
Größe Regalboden / Size of shelf board 900 × 1.170mm.
Lagenhöhe / Height of ream min. 30mm - max. 140mm.
Tragkraft / Carrying capacity max. 600kg.
Anzahl Pufferplätze / Number of buffer spaces 5.
.
Ablader / Unloader Polar TR 130ER-4-.
Einsatzbereich / Application for Size min. 400 x 400mm - max. 780 x 1.120mm.
Nutzengröße / Label size min. 105 - 148mm.
Lagenhöhe / Height of ream min. 40mm - max. 165mm.
Stapelhöhe / Pile height max 1.300mm.
Tragkraft / Carrying capacity max. 200kg.
.
Späneförderband / Waste Conveyor Busch

ModelPolar-137XT-AT
ManufacturerPolar
Year2004
Machine AvailabilityImmediately
Machine ConditionIn Stock
PriceOn Request
LocationNürnberg, Germany

About Polar - 137XT-AT

The Polar 137XT-AT is a high-performance cutting machine designed for the graphic arts and printing industry. This cutting system is categorized as a high-speed cutter and is primarily used for cutting and creasing of paper, cardboard, and other materials. Key features of the Polar 137XT-AT include its high cutting speed, precision cutting capabilities, and advanced automation features. The benefits of this machine include increased productivity, reduced labor costs, and improved cutting accuracy. Typical applications of the Polar 137XT-AT include commercial printing, packaging, and finishing operations.

Key Technical Aspects:

Dimensions and Specifications : The Polar 137XT-AT has a machine length of 4,370 mm, a machine width of 1,550 mm, and a machine height of 1,450 mm. The machine weighs approximately 2,500 kg and has a maximum cutting width of 1,370 mm.

Paper Handling : The Polar 137XT-AT features an automatic jogging system, which ensures precise alignment of the sheets before cutting. The machine has a maximum sheet size of 1,370 mm x 1,020 mm and a minimum sheet size of 350 mm x 250 mm. The input tray has a capacity of 1,500 sheets, and the output tray has a capacity of 2,000 sheets.

Printing Unit : Not applicable, as the Polar 137XT-AT is a cutting machine and does not have a printing unit.

Ink System : Not applicable, as the Polar 137XT-AT is a cutting machine and does not have an ink system.

Plate Cylinder : Not applicable, as the Polar 137XT-AT is a cutting machine and does not have a plate cylinder. The machine features a high-precision cutting system with a cutting speed of up to 25,000 sheets per hour, depending on the material being cut.
