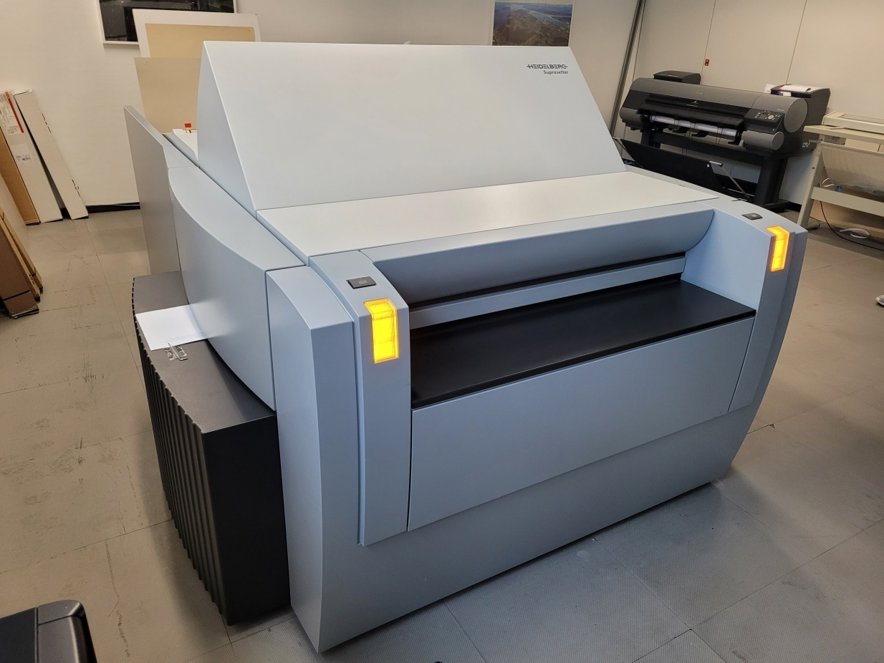

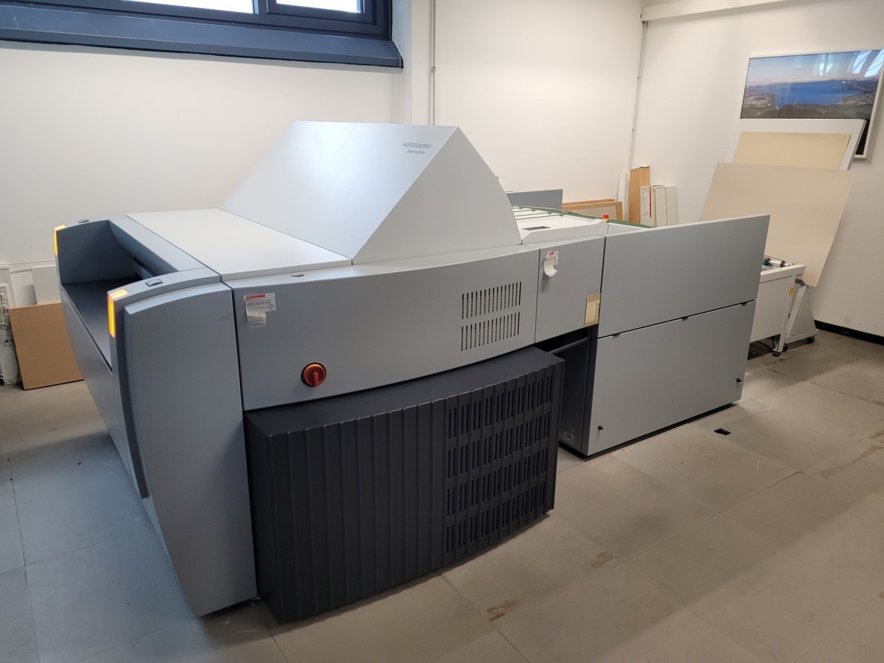

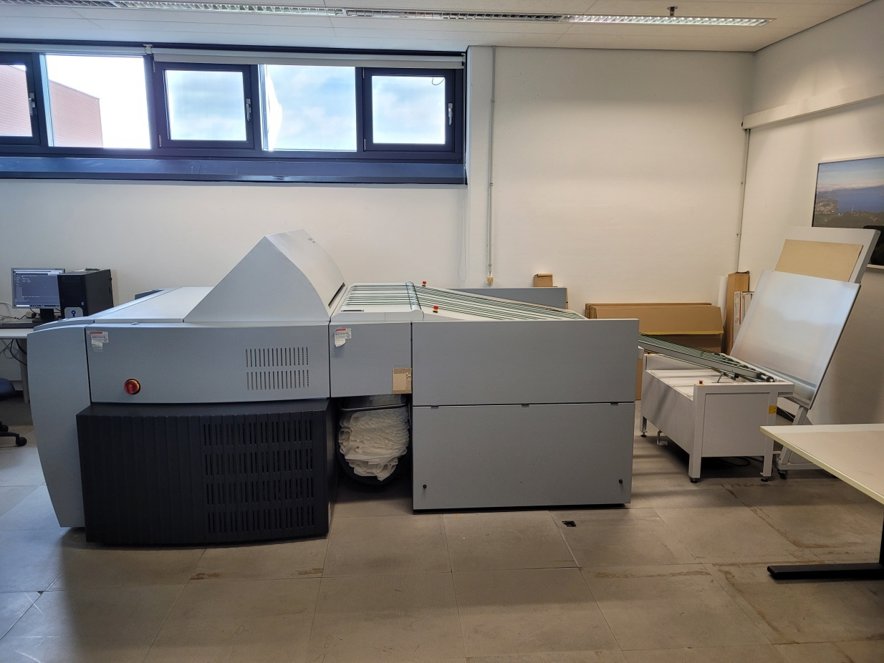

Heidelberg - Suprasetter A 106 Gen V

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Suprasetter A 106 Gen V has a footprint of 3,450 mm x 1,450 mm x 1,800 mm (H x W x D) and weighs approximately 2,500 kg. The machine has a maximum plate size capacity of 1,060 mm x 800 mm and can produce up to 28 plates per hour.

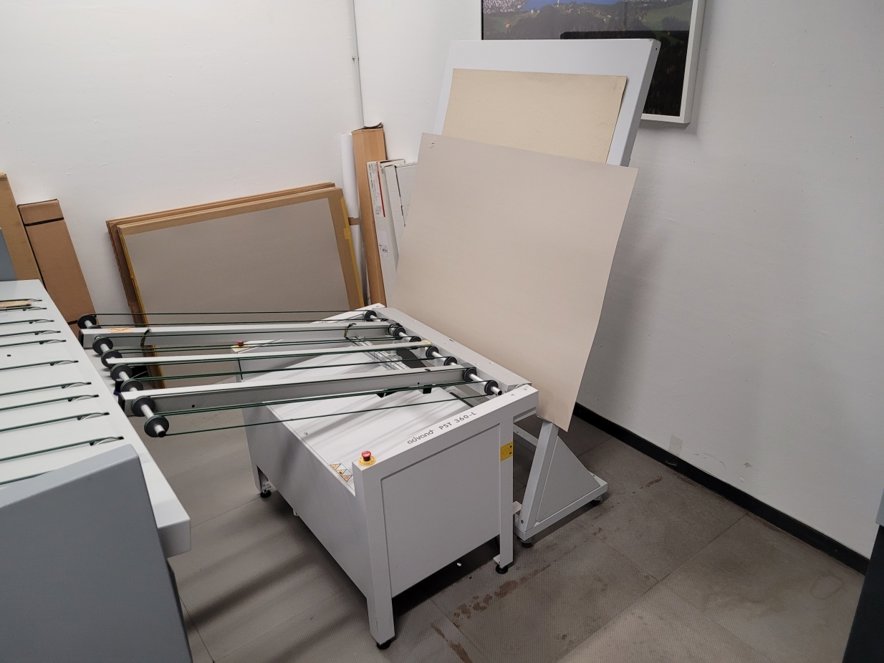

Paper Handling : The Suprasetter A 106 Gen V features an automatic plate loader with a capacity of up to 100 plates, ensuring continuous production without interruptions. The machine also includes an automatic plate unloader and a plate stacker for efficient plate handling.

Printing Unit : The Suprasetter A 106 Gen V uses a high-resolution, 4,800 dpi laser diode technology to expose the printing plates. The machine has a maximum plate exposure speed of 1,200 mm²/s and can produce plates with a resolution of up to 2,540 dpi.

Ink System : The Suprasetter A 106 Gen V does not use ink, as it is a plate setter device. Instead, it uses a thermal imaging process to expose the printing plates.

Plate Cylinder : The plate cylinder is a critical component of the Suprasetter A 106 Gen V, responsible for holding the printing plate in place during the exposure process. The machine features a high-precision, air-cooled plate cylinder with a diameter of 106 mm and a length of 800 mm.
