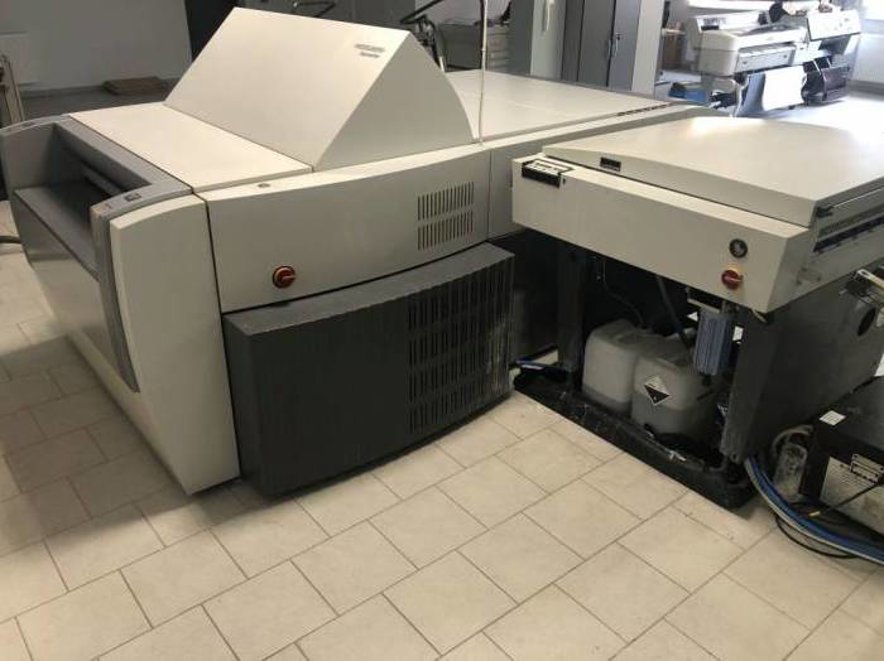

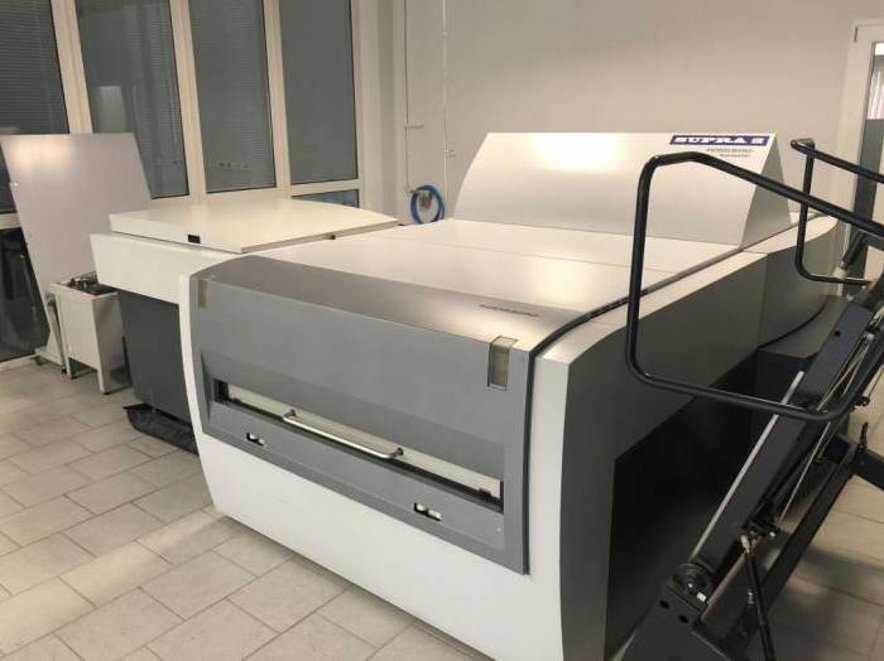

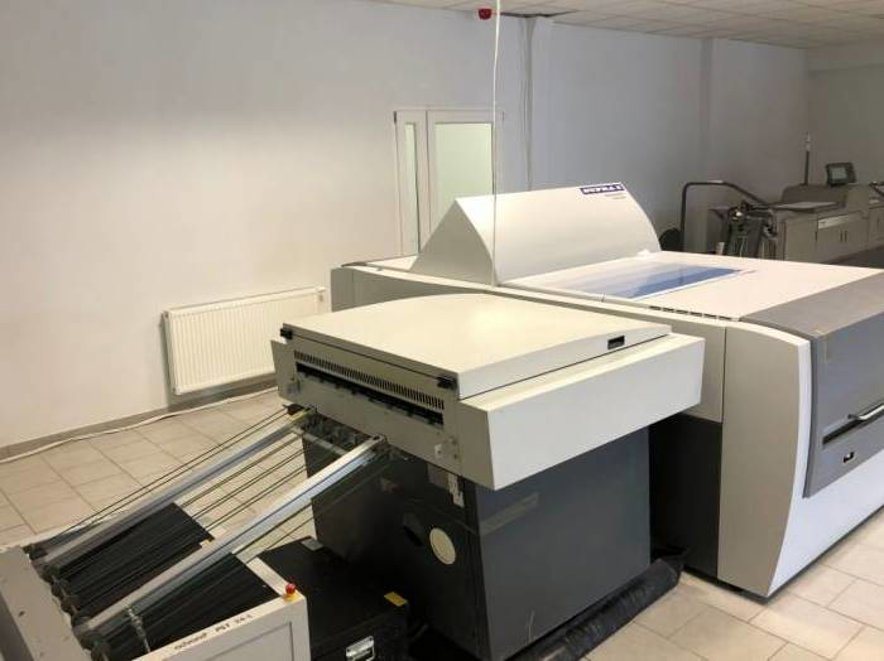

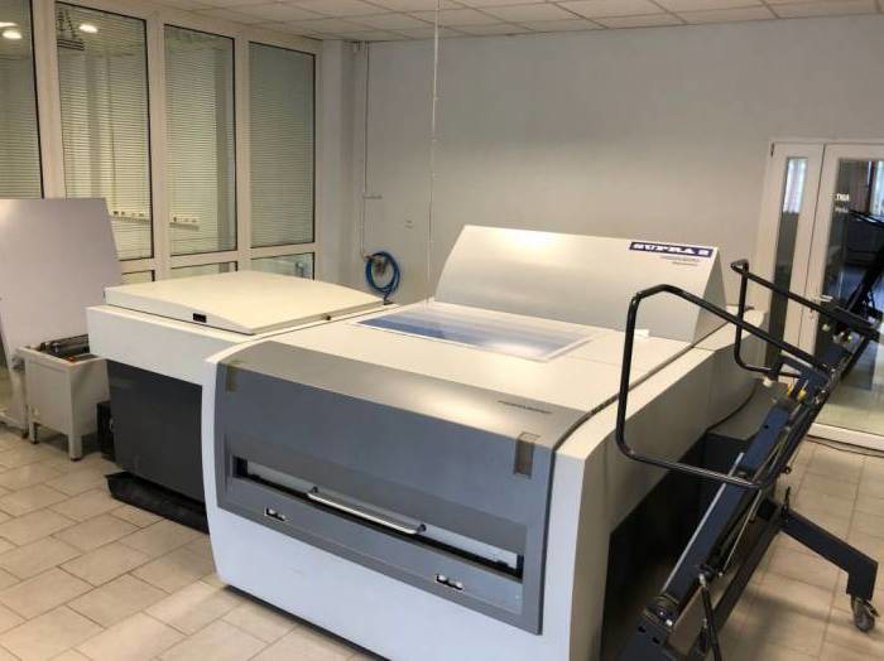

Heidelberg - Suprasetter 105

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Suprasetter 105 has a footprint of 3,450 mm x 1,450 mm x 1,800 mm (H x W x D) and weighs approximately 1,500 kg. It has a maximum plate size capacity of 1,050 mm x 800 mm and can handle plates with a thickness of up to 0.3 mm.

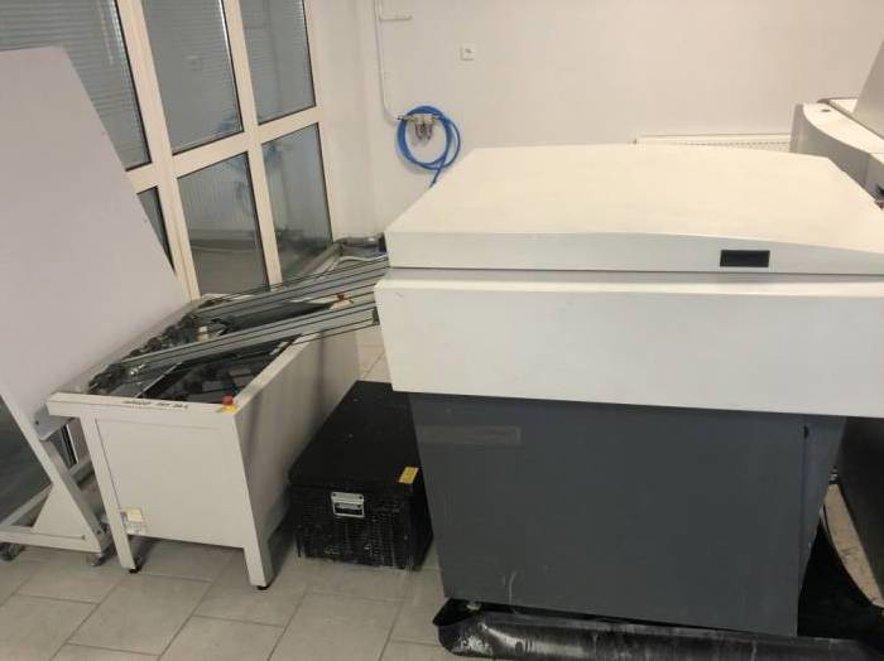

Paper Handling : The Suprasetter 105 features an automatic plate loader and unloader, which enables efficient and convenient plate handling. The machine can process up to 400 plates per hour, with a maximum plate pile height of 500 mm.

Printing Unit : The Suprasetter 105 employs a high-performance, 64-channel, violet-diode laser imaging system, which provides a maximum resolution of 2,540 dpi. The machine has a top imaging speed of 400 plates per hour at 2,540 dpi and 600 plates per hour at 1,270 dpi.

Ink System : The Suprasetter 105 does not use ink, as it is a CtP device that images plates using a laser diode.

Plate Cylinder : The plate cylinder is a critical component of the Suprasetter 105, responsible for precise plate registration and clamping. The machine features a pneumatically operated plate cylinder with a diameter of 105 mm, which ensures accurate plate positioning and reliable plate handling.
