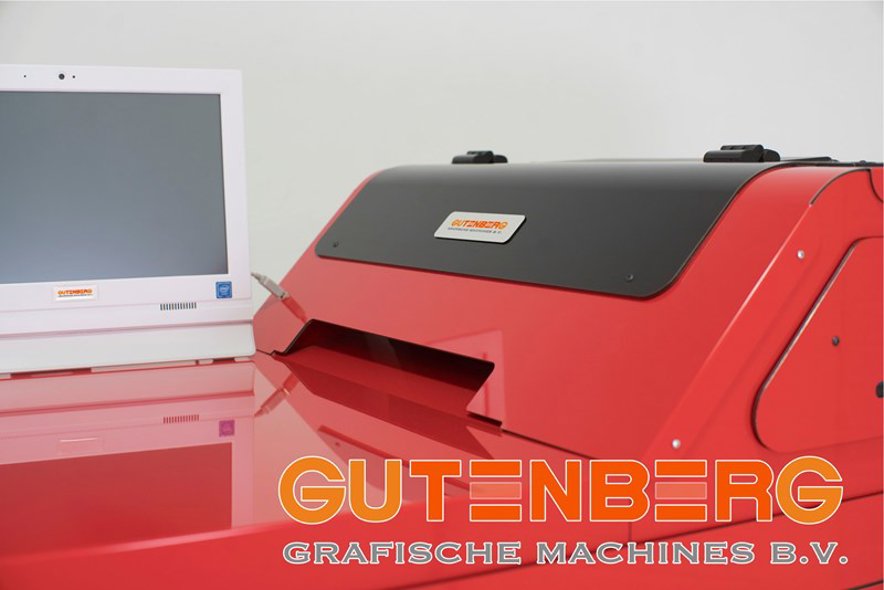

Machine Description
New System.

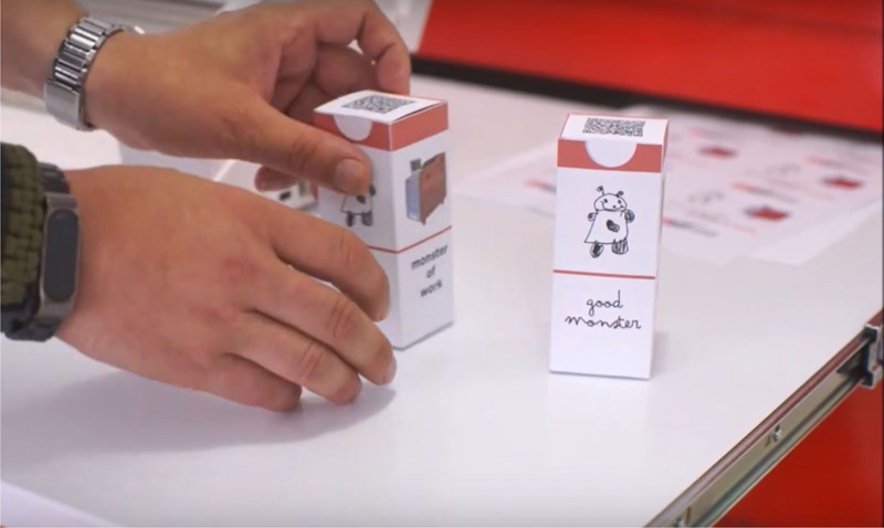

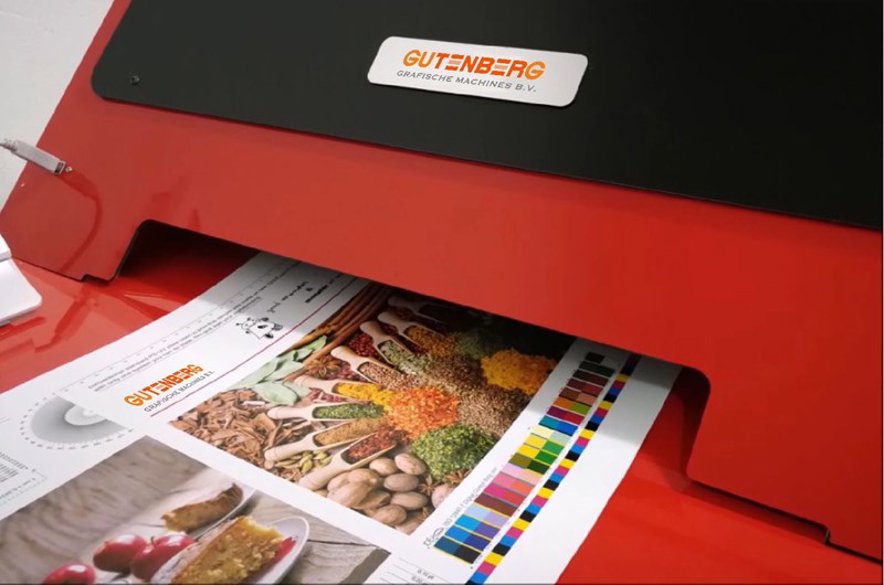

digital printing.

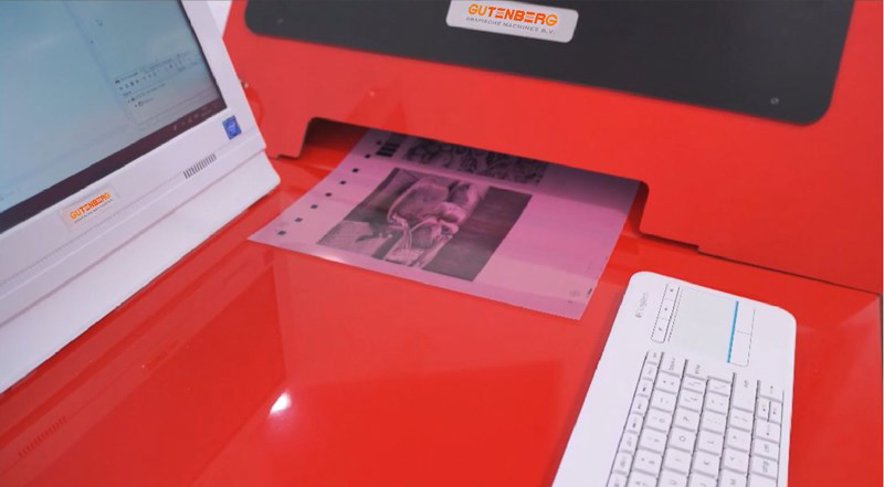

CTF Professional films.

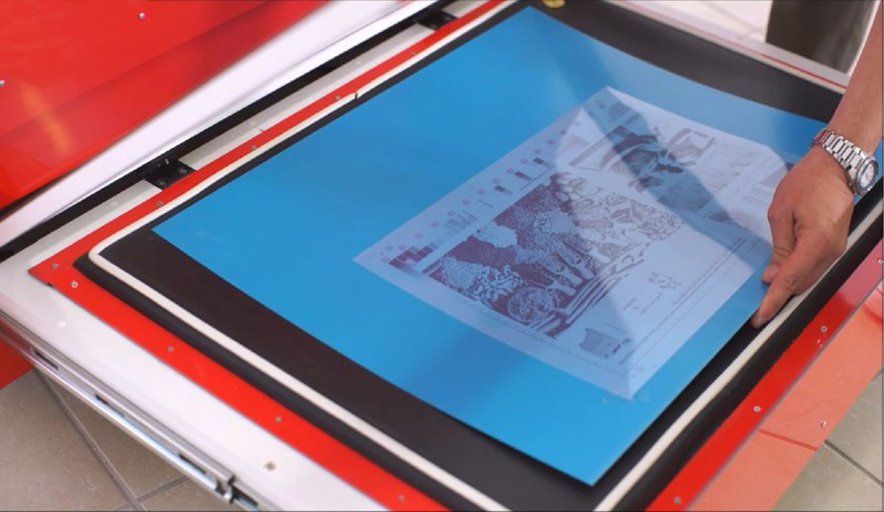

Plate exposure.

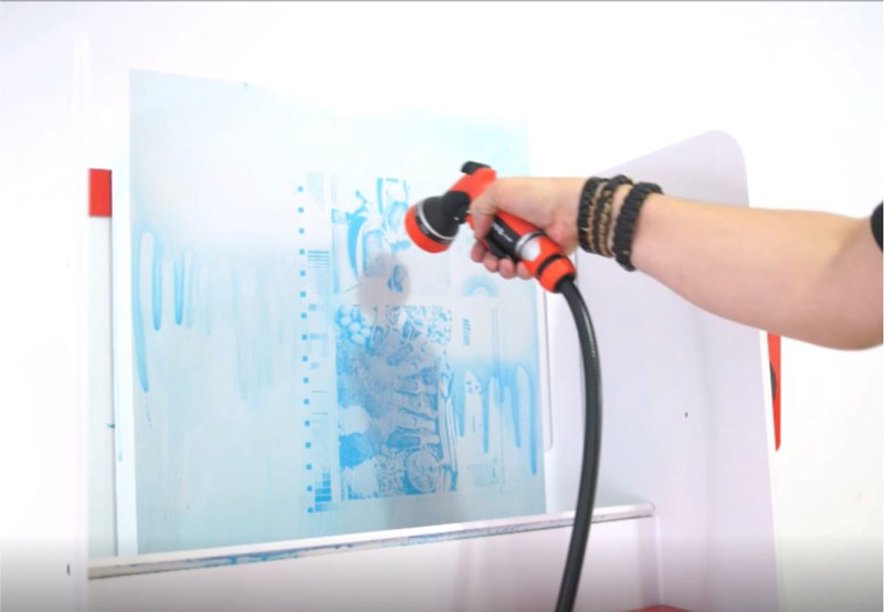

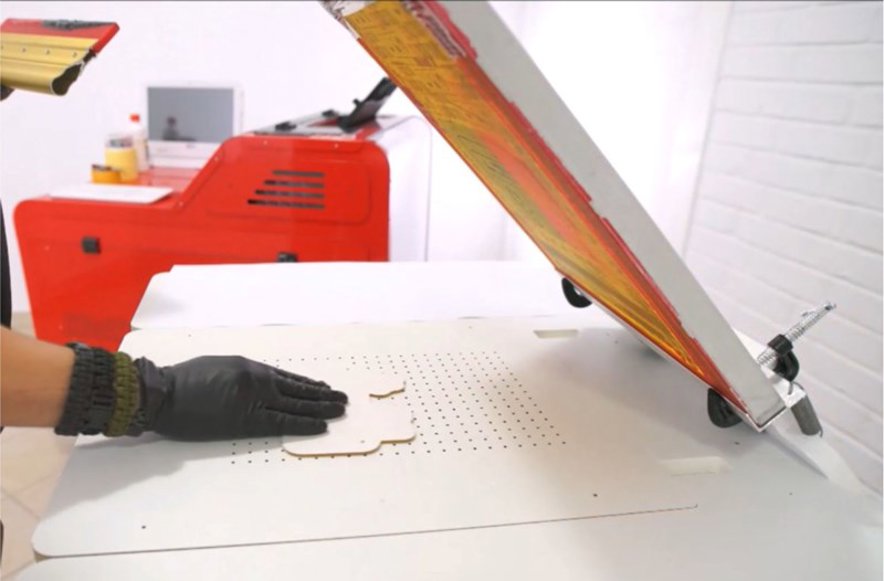

screen printing film ,.
flexography plate.

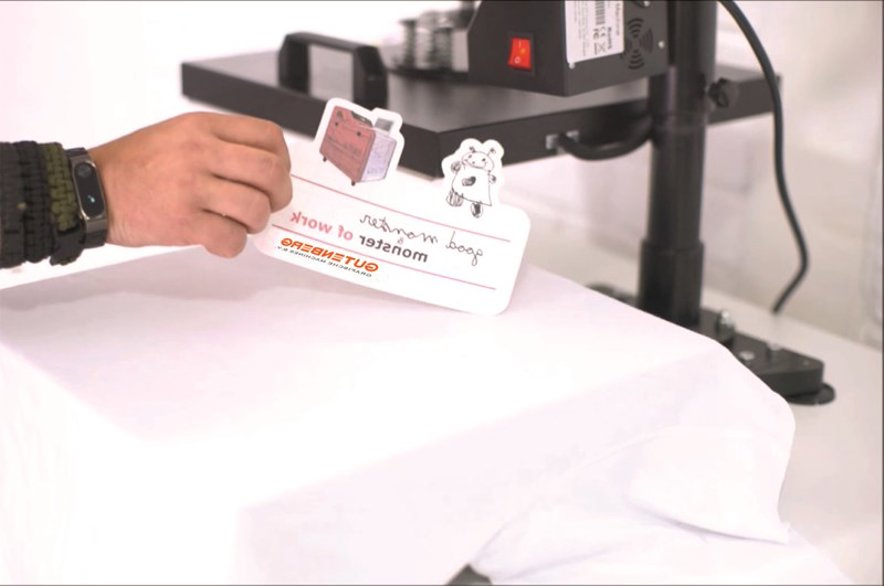

Transfer to textiles.
A3+ size.
colors addressed by GutenBerg RIP 4 (CMY+2xK film).
Media width max 330mm (13").
Ink supply build-in from bottles.
A4 size maximum output speed in black/color per hour 900/450/h.
Maximum addressed resolution 2880dpix2880dpi.
Maximum suggested raster line frequency for AM hybrid screening 170lpi.
Print repeatability in Y direction declared mechanically 0.1% (normally achieved on film 0.025%).
Mechanical registration accuracy head scan direction less than 0.03mm.
Imaging speed for A4 size F13 test file (High quality 170lpi CMYK) 11m:14s.
Imaging speed for A4 size F13 test file (text quality & raster up to 60lpi) 0m:41s.
Machine size ready to work (High x Width x Depth) 1321x1180x765mm.
Additional operational space in front of machine suggested minimum 800mm.
Movable desktop size 950x650mm.
Maximum o?set plate size to UV LED copy fame 700x550mm.

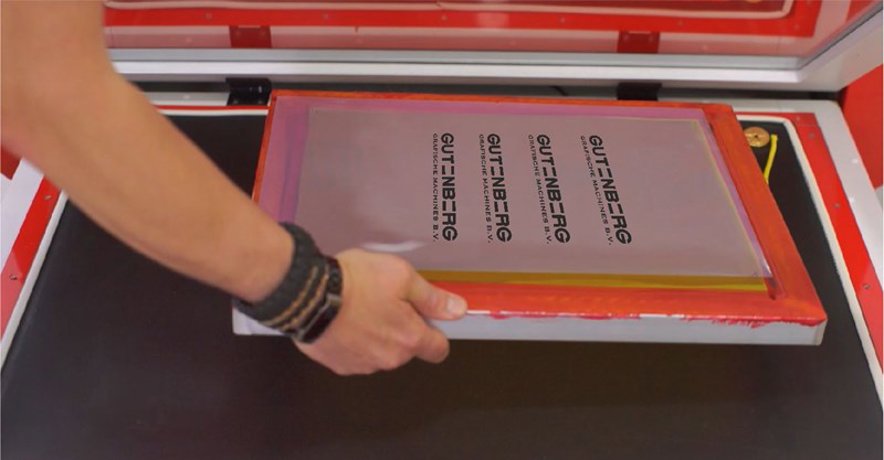

Maximum screen frame size to UV LED copy fame 650x450x30mm.
size of transportation box (air & sea wooden crate) 1250x1200x800mm.
Transport weight of standard set 237kg.
Machine net weight of standard set 174kg.
Windows 7/8.1/10 and Mac OS x.
Maximum power consumption 290W.
Communication ports USB.
Maximum thickness for sheet media to digital print 350g/m2
| Model | Gutenberg-CTFP |
|---|---|
| Manufacturer | Gutenberg |
| Year | 2019 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Netherlands |
About Gutenberg - CTFP
The Gutenberg CTFP is a high-performance, commercial-grade sheet-fed offset printing press designed for large-scale printing operations. Belonging to the category of commercial printing machines, this press is intended for high-volume production of a wide range of printed materials, including brochures, catalogs, and packaging materials. Key features of the Gutenberg CTFP include its advanced paper handling system, high-speed printing capabilities, and precise registration control. The benefits of this machine include increased productivity, improved print quality, and reduced production costs. Typical applications of the Gutenberg CTFP include commercial printing, packaging, and label printing.
Key Technical Aspects:
Dimensions and Specifications : The Gutenberg CTFP has a length of 7,500 mm, a width of 2,500 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size capacity of 750 x 1,050 mm.
Paper Handling : The paper handling system of the Gutenberg CTFP features a high-capacity feeder with a maximum pile height of 1,500 mm, capable of handling paper weights ranging from 60 to 400 gsm. The machine is equipped with a dual-delivery system, allowing for simultaneous printing and delivery of sheets.
Printing Unit : The printing unit of the Gutenberg CTFP is equipped with eight printing units, each capable of producing up to 15,000 sheets per hour at a maximum print speed of 15,000 sheets per hour. The machine features a maximum print resolution of 254 lpi and utilizes advanced offset printing technology.
Ink System : The ink system of the Gutenberg CTFP utilizes a high-precision, servo-driven ink pumping system, ensuring consistent and accurate ink transfer. The machine is equipped with a 20-liter ink tank and features an automatic ink replenishment system.
Plate Cylinder : The plate cylinder of the Gutenberg CTFP features a diameter of 1,200 mm and a circumference of 3,770 mm. The plate cylinder is designed for precise registration control, ensuring accurate and consistent print quality.
