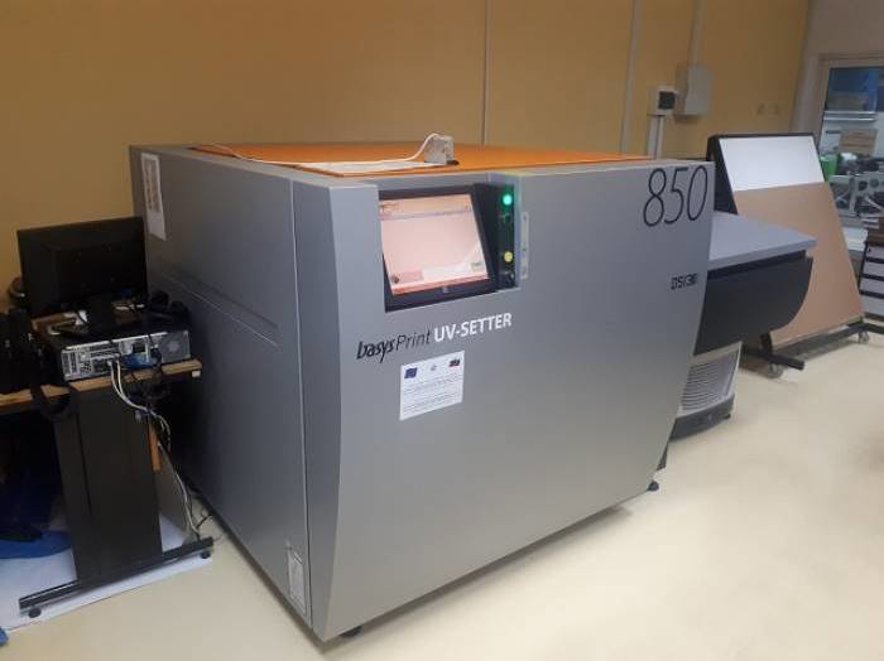

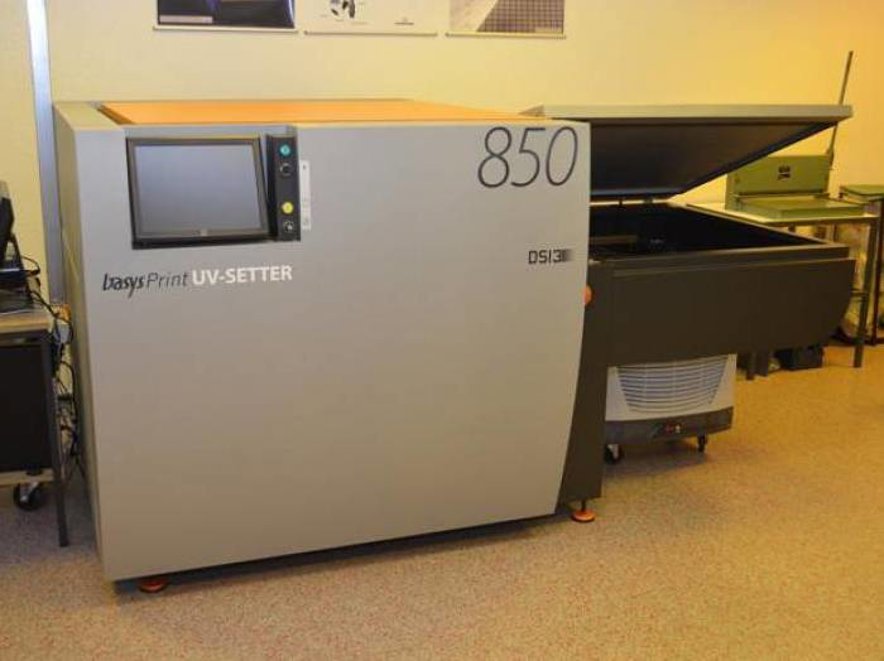

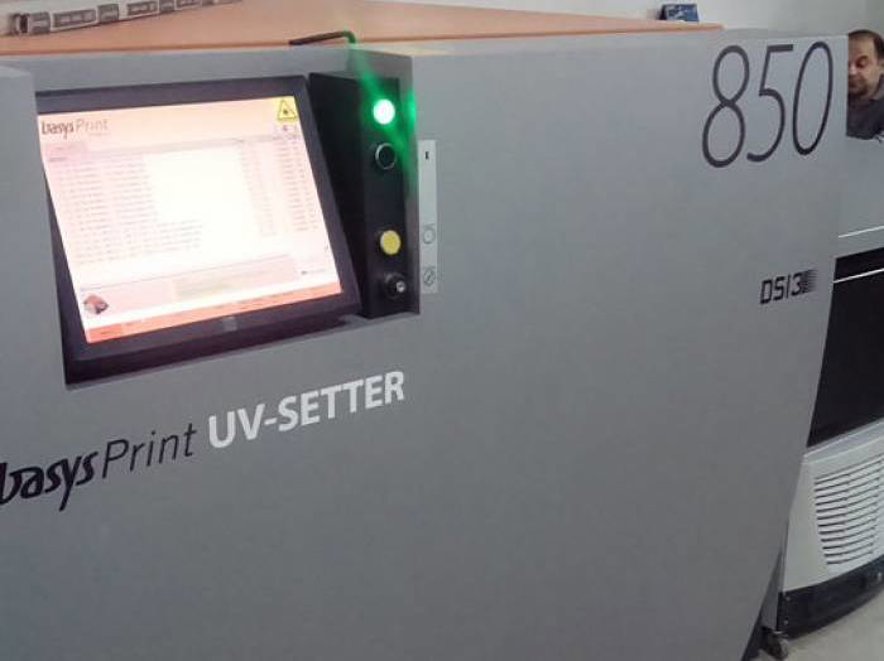

Basysprint - UV Setter 850

Key Technical Aspects:

Dimensions and Specifications : The Basysprint UV Setter 850 has a footprint of 2,450 mm x 1,450 mm x 1,800 mm (L x W x H) and weighs approximately 1,200 kg. The machine has a maximum plate size capacity of 1,070 mm x 850 mm and a minimum plate size capacity of 300 mm x 400 mm.

Paper Handling : The Basysprint UV Setter 850 features an automated plate handling system, which includes a plate loader, plate transport system, and plate stacker. The machine can handle up to 600 plates per hour and has a maximum plate thickness capacity of 0.3 mm.

Printing Unit : The Basysprint UV Setter 850 uses advanced UV technology to produce high-quality printing plates. The machine has a maximum resolution of 2,540 dpi and a print speed of up to 60 plates per hour. The printing unit is equipped with a high-intensity UV LED array, which provides consistent and reliable plate exposure.

Ink System : The Basysprint UV Setter 850 does not use ink, as it is a plate setter and not a printing press. Instead, it uses a UV-sensitive coating on the printing plates, which is exposed and developed during the plate-making process.

Plate Cylinder : The Basysprint UV Setter 850 features a high-precision plate cylinder, which is designed to ensure accurate and consistent plate registration. The plate cylinder is equipped with a vacuum system, which holds the plate in place during the exposure process.
