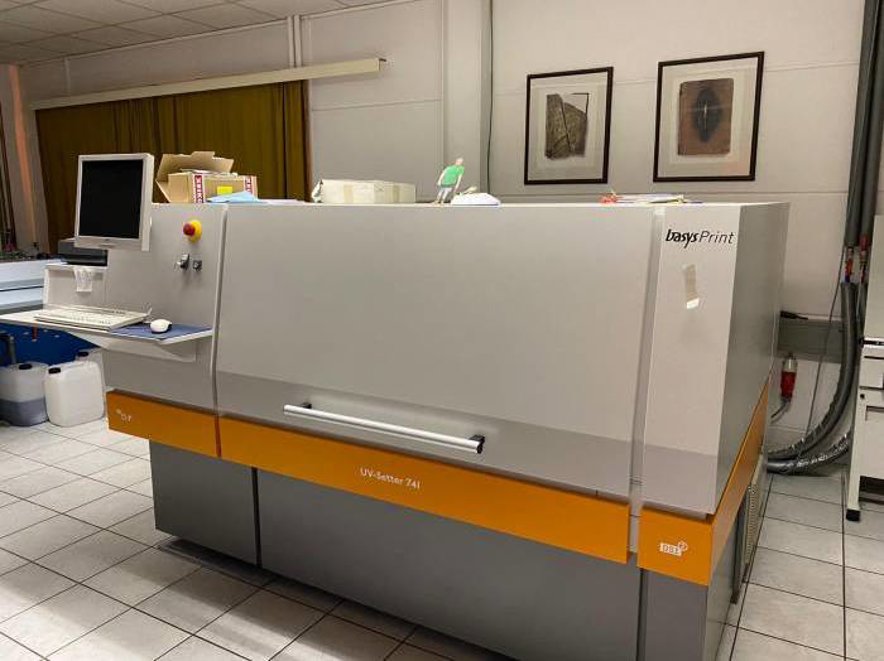

Basysprint - UV Setter 741

Key Technical Aspects:

Dimensions and Specifications : The Basysprint UV Setter 741 has a footprint of 1,450 mm x 1,200 mm x 1,800 mm (L x W x H) and weighs approximately 1,200 kg. The machine has a maximum plate size capacity of 1,050 mm x 800 mm and a minimum plate size capacity of 300 mm x 200 mm.

Paper Handling : The Basysprint UV Setter 741 features an automatic plate handling system, which includes a plate feeder, a plate transport system, and a plate stacker. The machine can handle up to 600 plates per hour and has a maximum plate thickness capacity of 2.4 mm.

Printing Unit : The Basysprint UV Setter 741 uses advanced UV exposure technology, which provides high-quality plate production with a resolution of up to 2,540 dpi. The machine has a maximum exposure speed of 1,200 mm/min and is equipped with a high-intensity UV lamp.

Ink System : The Basysprint UV Setter 741 does not use ink, as it is a plate setter and not a printing press. Instead, it uses a UV exposure process to create the printing image on the plate.

Plate Cylinder : The Basysprint UV Setter 741 features a high-precision plate cylinder, which is designed to ensure accurate plate registration and consistent plate quality. The plate cylinder is equipped with a vacuum system to ensure secure plate holding during the exposure process.
