Machine Description
Configuration: Thermal CTP (External Drum)..
Year: 2006..
Plate Type: Thermal aluminum plates (830 nm)..
Max plate size: 82 x 116 cm (32.2 x 45.6 inches)..
Min plate size: 45 x 37 cm..
Resolution: 1200 to 2400 dpi (standard) or 3000 dpi (optional)..
Productivity: 8 to 20 plates per hour (depending on the imaging head: Silver, Gold, or XT)..
Loading system: Manual loading, semi-automatic, or fully automatic (Autoloader/Multi-cassette)..
Laser type: Multi-channel infrared laser diode (GLV technology in some models)..
Plate thickness: 0.15 mm to 0.30 mm..
Internal punch: Optional..
Workflow interface: Usually paired with Agfa Apogee..
Total weight: approximately 1,150 kg (main engine only)..
Machine dimensions (L x W x H): 2.45 m x 1.35 m x 1.45 m..
Power consumption: approximately 3.0 kW to 4.5 kW....
The Agfa Avalon LF is a high-performance thermal computer-to-plate (CTP) system designed for precision plate imaging in commercial printing environments. As part of the CTP systems category, this external drum thermal CTP machine delivers exceptional accuracy and efficiency for producing high-quality aluminum printing plates. Key features include multi-channel infrared laser diode technology, flexible resolution options up to 3000 dpi, and compatibility with thermal aluminum plates (830 nm). The Avalon LF supports a wide range of plate sizes and thicknesses, making it suitable for diverse printing applications such as newspapers, magazines, packaging, and commercial print jobs. Its robust design, optional automation features, and integration with Agfa Apogee workflow ensure reliable performance and streamlined production.
Key Technical Aspects:
Dimensions and Specifications : The Agfa Avalon LF has a compact footprint with machine dimensions of 2.45 m (L) x 1.35 m (W) x 1.45 m (H) and a total weight of approximately 1,150 kg. It operates with a power consumption ranging from 3.0 kW to 4.5 kW. The system supports resolutions from 1200 to 2400 dpi (standard) or 3000 dpi (optional) and achieves productivity rates of 8 to 20 plates per hour, depending on the imaging head configuration (Silver, Gold, or XT). The machine is equipped with a multi-channel infrared laser diode and optional GLV technology in select models.
Plate Cylinder : The Avalon LF utilizes an external drum configuration for thermal plate imaging, accommodating thermal aluminum plates with a spectral sensitivity of 830 nm. It supports plate sizes ranging from a minimum of 45 x 37 cm to a maximum of 82 x 116 cm (32.2 x 45.6 inches), with an extended maximum plate width of 2000 mm. Plate thickness compatibility spans from 0.15 mm to 0.30 mm. The system offers optional internal punch functionality and supports manual, semi-automatic, or fully automatic loading via Autoloader or Multi-cassette systems.
| Model | Agfa-Avalon LF |
|---|---|
| Reference Number | AA11098D |
| Manufacturer | Agfa |
| Year | 2006 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | 3800.00 EUR |
| Location | 103 Rue des Écoles, 38121 Reventin-Vaugris, France |
Special Features
- Max. Plate width: 2000 mm

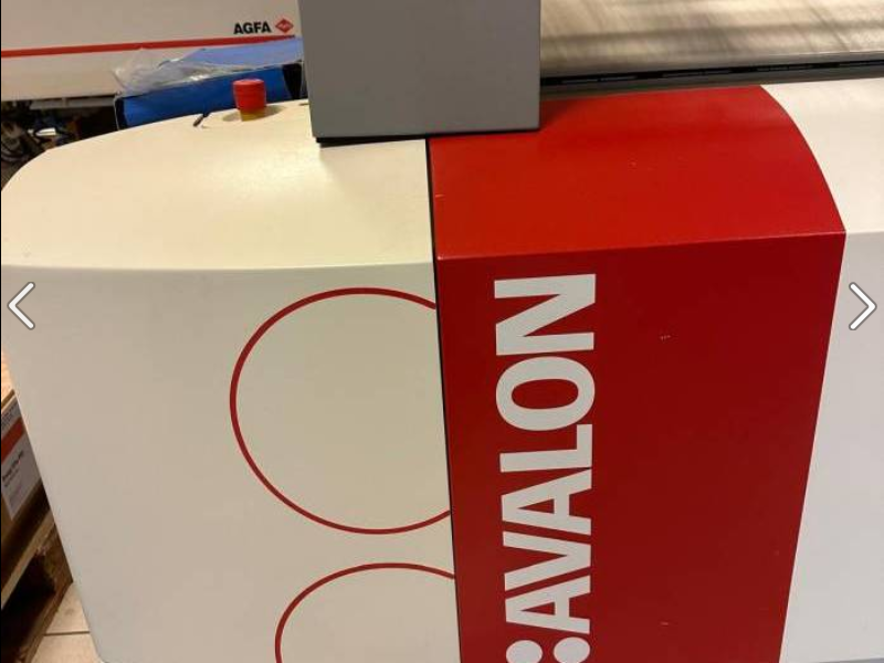

Agfa - Avalon LF
