Machine Description
Sheet sizes:.
.
- Maximum cutting size: 1.600 x 1.100 mm.
.
- Minimum cutting size: 600 x 520 mm.
.
Cutting size with front waste:.
.
- Maximum cutting size: 1.600 x 1.075 mm.
.
- Minimum cutting size: 580 x 492 mm.
.
- Gripper margin adjustable: 15 +/- 3 mm.
.
- Thickness of corrugated board up to 9 mm.
.
- Thickness of solid board from 1 mm.
.
- Cutting force, maximum: (400 tons) 4MN.
.
- Production speed: up to 6.500 sheets/hour.
.
Bobst Flexo 160.
.
1994.
.
Sheet sizes:.
.
- Maximum cutting size: 1.600 x 1.100 mm.
.
- Minimum cutting size: 600 x 520 mm.
.
- Maximum printing size: 1.600 x 1.100 mm.
.
- Printing diameter: 440 mm.
.
Thickness of printing plates:.
.
- Maximum: 8 mm.
.
- Minimum: 3 mm.
.
Diameter of rubber inking roller:.
.
- Maximum: 216 mm.
.
- Minimum: 204 mm.
.
- Thickness of corrugated board up to 9mm.
.
- Thickness of solid board from 1 mm.
.
- Production speed: up to 6.700 sheets/hour.
.
Roda Prefeeder FPK 1600.
.
2000.
.
Material characteristics:.
.
- Maximum pile height: 2,000 mm.
.
- Maximum pile weight: 1,400 kg.
.
- Pile height: 50 - 200mm.
.
- Minimum sheet size: 600 x 400 mm.
.
- Maximum sheet size: 1,650 x 1,270 mm.
.
- Maximum speed: 9,000 sheets/hour.
.
- Regulation height: 50 – 200 mm.
.
Technical specifications:.
.
- Machine length: 7. 150 mm.
.
- Length of the machine on the ground: 3.450 mm.
.
- Width of the machine: 4.000 mm.
.
- Height of the machine: 3.750 mm.
.
- Weight: 6.300 kg.
.
- Minimum height of the feed roller conveyors: 305 mm.
.
Electrical connection:.
.
- Installed power: 14 kW.
.
- Electrical voltage: 400V - 50Hz -3PE.
.
- Control voltage: 24VDC.
.
Pneumatic connection:.
.
- Compressed air consumption: 15m³/hour at 6 bar.
.
- Connection: 1/2".
.
Pallmac 1600 inline.
.
1999.
.
Technical data:.
.
- Control voltage: 380/220V - 24 VDC.
.
- Frequency: 50 Hz.
.
- Maximum rated power (Imax): 12 A.
.
- Rated power (In): 9 A.
.
- Connected load: 6 kW.
.
- Air pressure: 6 bar.
.
- Compressed air consumption: 1500 l/minute.
.
Product data:.
.
- Maximum length: 1. 100 / 800 mm / Minimum: 100 mm.
.
- Width Maximum: 1,600 / 550 mm / Minimum: 200 mm.
.
- Height Maximum: 240 mm / Minimum 60 mm.
.
Maximum after separation 100 x 200 mm...

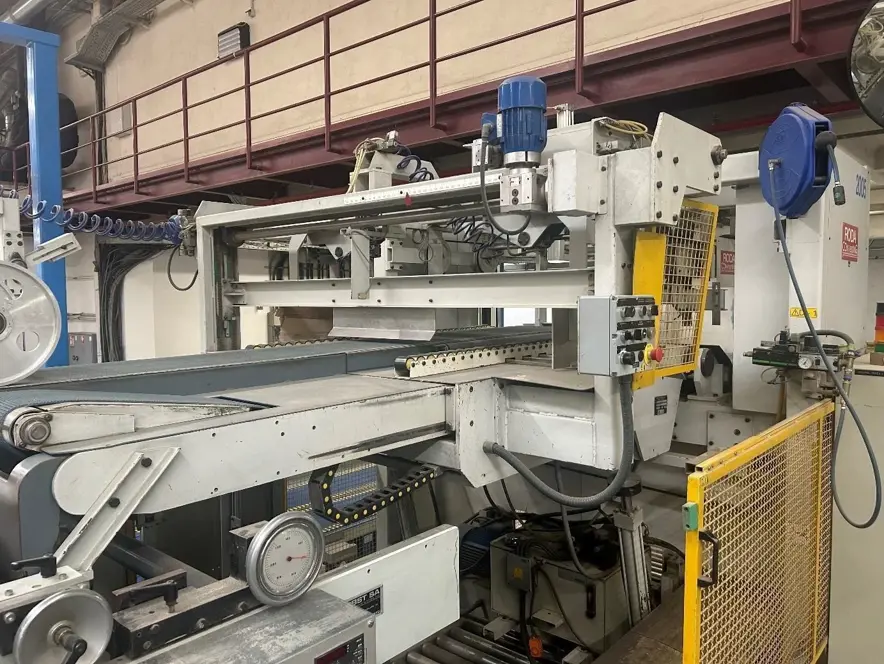

The Bobst 160 A-Matic is a high-performance corrugated cardboard production line designed for precision cutting, creasing, and printing of corrugated and solid board materials. Part of the renowned Bobst Flexo 160 series, this 1994 model integrates advanced automation with robust engineering to deliver exceptional productivity and versatility. Key features include a maximum cutting size of 1,600 x 1,100 mm, adjustable gripper margins, and a powerful 4MN cutting force, making it ideal for high-volume packaging production. The system is complemented by the Roda Prefeeder FPK 1600 and Pallmac 1600 inline unit, ensuring seamless material handling and separation. With production speeds up to 6,700 sheets/hour and compatibility with board thicknesses up to 9 mm, this line is well-suited for corrugated box manufacturing, display production, and industrial packaging applications.
Key Technical Aspects:
Dimensions and Specifications : The Bobst 160 A-Matic features a maximum cutting size of 1,600 x 1,100 mm and a minimum cutting size of 600 x 520 mm, with a front waste-adjusted maximum of 1,600 x 1,075 mm and minimum of 580 x 492 mm. The machine accommodates corrugated board up to 9 mm thick and solid board from 1 mm, delivering a maximum cutting force of 4MN (400 tons). Production speed reaches up to 6,500 sheets/hour. The Roda Prefeeder FPK 1600 supports a maximum pile height of 2,000 mm, pile weight of 1,400 kg, and sheet sizes from 600 x 400 mm to 1,650 x 1,270 mm, with a maximum speed of 9,000 sheets/hour. The prefeeder measures 7,150 mm in length, 4,000 mm in width, and 3,750 mm in height, weighing 6,300 kg. The Pallmac 1600 inline unit handles product dimensions from 100 mm to 1,100 mm in length, 200 mm to 1,600 mm in width, and 60 mm to 240 mm in height.
Paper Handling : The system processes sheet sizes ranging from 600 x 520 mm to 1,600 x 1,100 mm, with a gripper margin adjustable to 15 ± 3 mm. The Roda Prefeeder FPK 1600 supports pile heights from 50 mm to 2,000 mm and regulation heights between 50–200 mm, with a minimum feed roller conveyor height of 305 mm. The Pallmac 1600 inline unit ensures precise separation for sheets as small as 100 x 200 mm.
Printing Unit : The Bobst Flexo 160 printing unit offers a maximum printing size of 1,600 x 1,100 mm, matching the cutting dimensions. The printing diameter is 440 mm, supporting high-quality flexographic printing for corrugated and solid board applications.
Plate Cylinder : The printing unit accommodates printing plates with thicknesses ranging from 3 mm to 8 mm, ensuring compatibility with various plate materials and printing requirements.
Ink System : The system utilizes a rubber inking roller with a diameter range of 204 mm to 216 mm, providing consistent ink transfer for optimal print quality on corrugated and solid board substrates.
| Model | Bobst-160 A-Matic |
|---|---|
| Manufacturer | Bobst |
| Year | 1994 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Germany |
