Machine Description
The best choice for making a paper bowl..

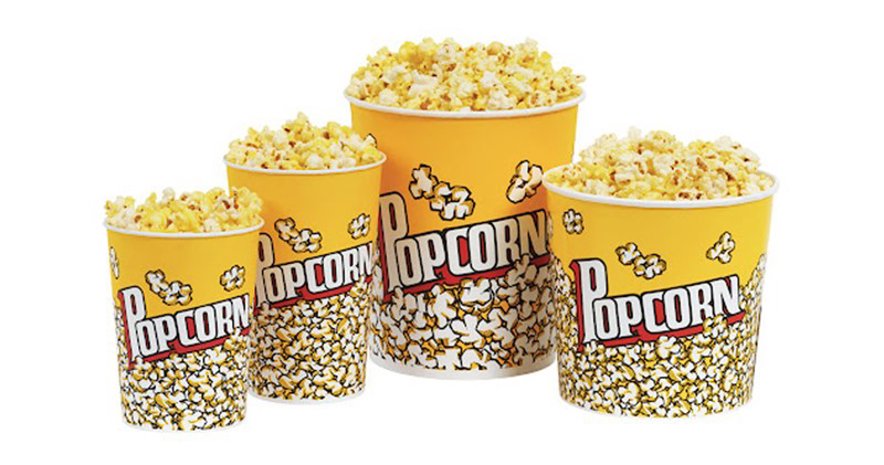

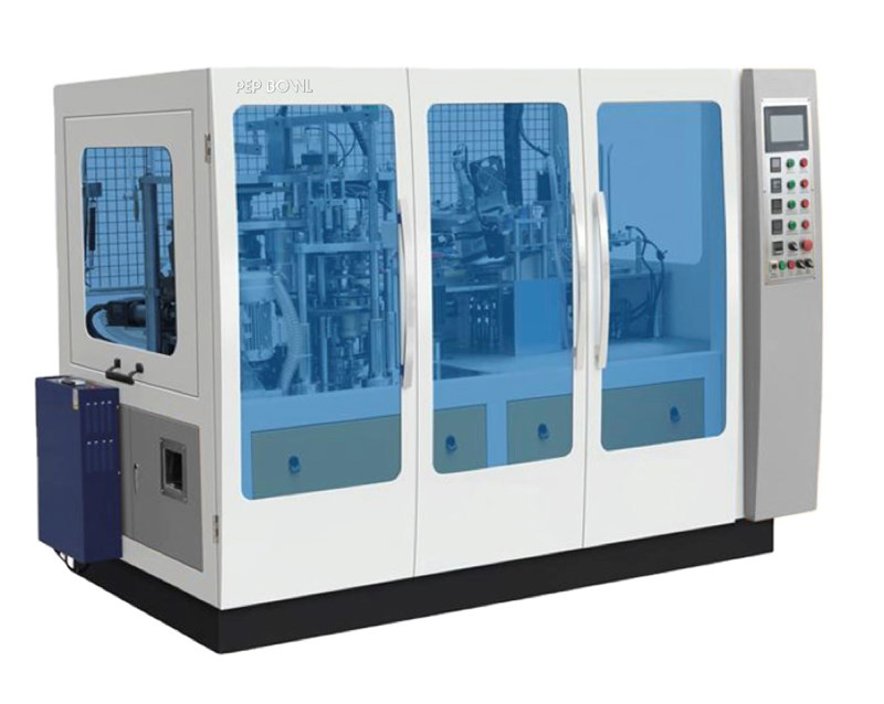

This paper bowl former enjoys stable performance, standard manufacture and good production capacity. The paper tube forming machine is extremely applicable to make popcorn cups, paper tubs and more..
Ideal for: Round paper cups, noodle and vending cups ice cream and food containers....
.
Features.
• The Turnplates: The Machine adopts two turnplates to process the paper cup top. Compare to three turnplates, two turnplates can simplify and stabilize the high-speed processing process and ensure better product quality. This design is also good for producing a high bowl.
• The Transmission: The transmission part adopts an automatic lubrication system which can reduce mechanical wear and make the machine function smoothly..
• The Processing: Independent edible lubrication system can make the cup processing process cleaner. Installing according to the custom’s requirement..
• The Control System: The machine comes with a PLC control system, sensor failure detecting, and can stop working automatically if the machine has any problem so it can greatly improve operation safety and reduce labour cost..
.
Technical Data.
• Cup Size: 24-40 OZ.
• Cup Top Diameter: Max 150 mm.
• Cup Height: Max 110 mm.
• Raw material: Single or Double PE/PLA Coated.
• Paper GSM: 190-500 g/m2.
• Speed : 80-90 pcs/min.
• Power Source: 220V / 380V 50Hz.
• General Power: 12 KW.
• Gas Source: 0.5 m3/min.
• Weight: 4000 KG.
• Packing Size : L 2900 x W 1860 x H 2000 mm.
• Packing Material: Wooden Case.
.
Electronic Component.
• PLC: Mitsubishi (Japan).
• Touch Screen: Schneider (France).
• Frequency Converter: Schneider (France).
• Relay: Schneider (France).
• Servo Motor: Mitsubishi (Japan).
• Apparatus: LS (Korea).
• Button: Autonics (Korea).
• Temperature Controller: Autonics (Korea).
• Bearing: NSK (Japan).
• Swiss Hot Air: Leister (Swiss).
• Pneumatic Component: SMC (Japan).
• Solid-State Relay: Autonics (Korea).
• Photoelectric Switch: Autonics (Korea)
| Model | Gutenberg-PB-90 |
|---|---|
| Manufacturer | Gutenberg |
| Year | 2021 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Netherlands |
About Gutenberg - PB-90
The Gutenberg PB-90 is a high-performance, sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is ideal for printing high-quality materials such as brochures, catalogs, and packaging materials. Key features of the PB-90 include its high-speed printing capabilities, advanced paper handling system, and precise registration control. The benefits of using the PB-90 include increased productivity, reduced waste, and improved print quality. Typical applications of the PB-90 include commercial printing, packaging, and label printing.
Key Technical Aspects:
Dimensions and Specifications : The Gutenberg PB-90 has a length of 23.6 feet (7.2 meters), a width of 6.6 feet (2 meters), and a height of 7.5 feet (2.3 meters). It weighs approximately 22,000 pounds (10,000 kilograms) and has a maximum printing speed of 18,000 sheets per hour.
Paper Handling : The PB-90 features a advanced paper handling system with a maximum sheet size of 28.7 x 40.2 inches (73 x 102 cm) and a minimum sheet size of 12.6 x 18.1 inches (32 x 46 cm). The machine is equipped with a 5,000-sheet feeder, a 2,000-sheet delivery, and a sheet-rejection system.
Printing Unit : The PB-90 uses a sheet-fed offset printing process with a maximum printing speed of 18,000 sheets per hour. It has a printing resolution of 254 lpi (lines per inch) and uses a combination of oil-based and UV inks. The machine is equipped with 8 printing units, each with a maximum printing area of 28.7 x 40.2 inches (73 x 102 cm).
Ink System : The PB-90 uses a combination of oil-based and UV inks, with a maximum ink capacity of 20 liters per unit. The machine features an automatic ink supply system and an ink-saving system that reduces ink consumption by up to 20%.
Plate Cylinder : The PB-90 features a plate cylinder with a diameter of 4.3 inches (11 cm) and a circumference of 13.4 inches (34 cm). The plate cylinder is equipped with a automatic plate changing system, which allows for quick and easy plate changes.
