Machine Description

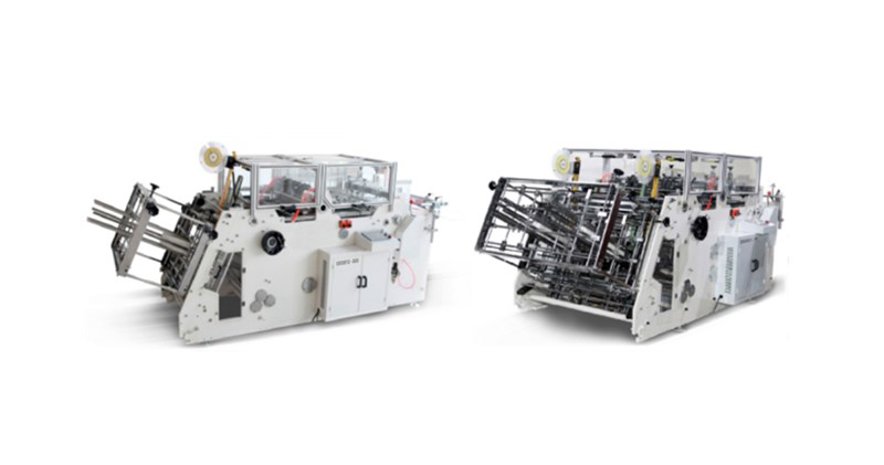

OROBOX its an ideal choice to produce disposable food trays such as hamburger boxes, snack trays, boat trays, food pails, cardboard tray, noodle boxes, spaghetti boxes, chips boxes, bento paper lunch boxes, tiffin paper lunch boxes,.
.
Features.
• The Belts: To improve the feeding paper stability and change moulds more convenient. We use a wider belt instead of two narrow belts. The narrow belt is easily abrased by papers. Also, you should adjust the distance of the two belts when you change the moulds. For wide paper, it is more endurable and doesn’t need to be adjusted..
• The Counting Paper: It adapts counting paper tape equipment to count products quickly and accurately..
• The Glue: To fill the water food grade glue into the glue container and the cut sponge dip some of the glue, and then point on the surface of the paper..
• The Frame: The frame of the collecting box is separated into three parts, each part can be opened. It is easier for changing moulds or repairing..
• The Control Paper: In order to feed paper more automatically, we use both PLC operations with a photoelectric sensor and servo motor to control the paper feeding part. It has two advantages.
It makes the feed paper part easily operate when you change the moulds. The old design is adjusted by cam. When you change the different sizes of moulds, we need to replace the different sizes of cams. It is very complex and takes much time for a change..
It makes the paper feeding part more smoothly and fluently working. The old design is easily misses paper feeding when the machine running..
.
Technical Data.
• Production Capacity :.
.
OPE-1200 : 80-320 pcs/min.
• Suitable Material : 200-600 gsm card paper, PE coated paper, kraft paper, corrugated paper.
• Length : L100-450 mm, degree: 5° & -40°.
• Width :.
.
OPE-1200: B100-400 mm.
• Height :.
.
OPE-1200: H15-200 mm.
• Total Power :.
.
OPE-1200 : 6.25 KW.
• Total Weight :.
.
OPE-1200: 2.5T.
• Overall Dimension :.
.
OPE-1200 : 3600 x 1850 x 1700 mm.
• Power Source : 380V 50HZ.
• Degree of box : 5°- 40°.
• Carton material : 200 gsm/m2 - 600 gsm/m2.
• Corrugated paper : Up to 1.5mm.
P.S. If special size and configuration, we can do it according to your requirement..
.
Electronic Component.
• Motor : Main Motor - Gontngtai.
Servo Motor - Inovance.
Gluing Motor – JSCC (Taiwan).
• Electric Elements :.
PLC - Inovance.
HMI - Weinview (Taiwan).
Frequency Converter : Inovance.
Relay : Schneirder (France).
Low Voltage Apparatus : Schneirder (France).
Bottom : Autonics (Korea).
Close to the Switch / Photoelectric Switch : Autonics (Korea).
Power Switch : Mean Well (Taiwan).
• Pneumatic: Main Air Cylinder - Airtac (Taiwan).
• Belt :.
Paper Feeding Belt - Tiger (Italy).
Convey Belt.
• Bearing: HRB/BEM
| Model | Gutenberg-OB-800 + OB-1200 |
|---|---|
| Manufacturer | Gutenberg |
| Year | 2021 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Netherlands |
About Gutenberg - OB-800 + OB-1200
The Gutenberg OB-800 and OB-1200 are high-performance offset printing presses designed for commercial and industrial printing applications. These machines are categorized as sheet-fed offset presses, ideal for printing high-quality materials such as brochures, catalogs, and packaging materials. Key features of the Gutenberg OB-800 and OB-1200 include advanced paper handling systems, high-speed printing capabilities, and precise registration control. The benefits of these machines include increased productivity, reduced waste, and exceptional print quality. Typical applications include commercial printing, packaging, and label printing.
Key Technical Aspects:
Dimensions and Specifications : The Gutenberg OB-800 has a length of 6,300 mm, a width of 1,800 mm, and a height of 1,900 mm, with a weight of approximately 8,000 kg. The OB-1200 has a length of 7,300 mm, a width of 2,000 mm, and a height of 2,100 mm, with a weight of approximately 10,000 kg. Both machines have a maximum sheet size of 800 mm x 1,200 mm (OB-800) and 1,200 mm x 1,200 mm (OB-1200), with a maximum printing speed of 15,000 sheets per hour.
Paper Handling : The Gutenberg OB-800 and OB-1200 feature advanced paper handling systems, including a feeder with a capacity of 5,000 sheets, a delivery system with a capacity of 10,000 sheets, and an optional inline finishing system. The machines are equipped with automatic sheet alignment, sheet detection, and anti-static devices to ensure smooth paper flow and minimize waste.
Printing Unit : The printing unit of the Gutenberg OB-800 and OB-1200 features a maximum printing speed of 15,000 sheets per hour, with a resolution of 254 lpi (lines per inch). The machines utilize a conventional offset printing process with a maximum printing area of 790 mm x 1,190 mm (OB-800) and 1,190 mm x 1,190 mm (OB-1200).
Ink System : The ink system of the Gutenberg OB-800 and OB-1200 uses a conventional offset ink system with a maximum ink capacity of 20 kg per color. The machines feature an automatic ink supply system, ink temperature control, and an ink recycling system to minimize waste and reduce environmental impact.
Plate Cylinder : The plate cylinder of the Gutenberg OB-800 and OB-1200 has a diameter of 1,200 mm, with a maximum plate size of 790 mm x 1,190 mm (OB-800) and 1,190 mm x 1,190 mm (OB-1200). The machines feature an automatic plate changing system, plate washing, and plate drying to ensure efficient and high-quality printing.
