Bag making Machinery for Sale | Preowned & Preloved

Bag making

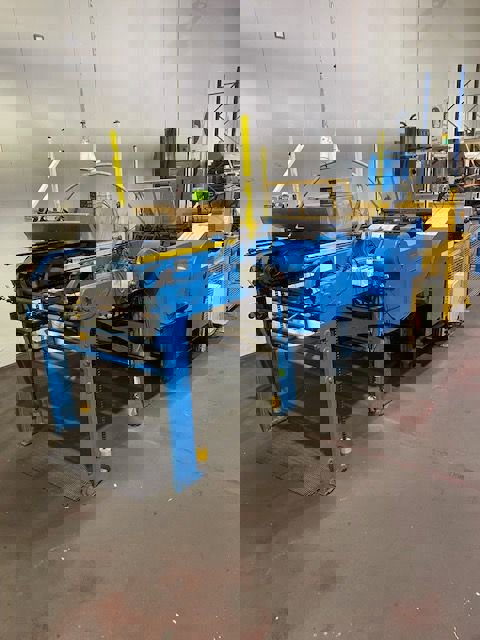

The Greaseproof Sheeter by Windmoller & Holscher is designed for reliable, high-quality conversion of greaseproof paper for food-service and packaging applications. Running at up to 22 metres per minute, the machine produces sheet sizes from 330–425 mm wide with a fixed sheet length of 660 mm, processing paper weights from 30–70 gsm. It features two printing units with 400 mm repeat cylinders, cutting lengths of 660 mm, and accommodates roll diameters up to 650 mm. This configuration makes it well suited for producing printed greaseproof wraps and liners for bakeries, takeaway outlets, and specialty food packaging. Running Speed 22 metres per minute Minimum width sheet size 330 mm Maximum width sheet size 425 mm Sheet length 660 mm Minimum paper width 330 mm Maximum Paper width 425 mm Minimum Paper gsm 30 gsm Maximum Paper gsm 70 gsm Printing units 2 Print Cylinders 400 mm repeat Cutting lengths 660 mm Maximum Roll O/D 650 mm

Melbourne City

Australia

16719

Paper Bag Making

By Windmoeller & Hoelscher QMT 1309 (Serial No. 16719), this Bag Machine is designed for efficient, mid-range paper bag production with integrated printing and lamination capability. The machine operates at speeds up to 60 metres per minute, producing bag widths from 70–240 mm and processing paper widths between 250–500 mm in weights ranging from 35–70 gsm. It features three printing units, supports roll diameters up to 1,000 mm, and offers print cylinder repeats of 200, 220, 260, and 310. Gusset sizes from 30–90 mm are available across selected bag widths (125–200 mm), providing flexibility for various retail and food-service applications. The integrated lamination unit runs at up to 50 metres per minute and handles lighter paper grades from 26–32 gsm, with roll diameters up to 750 mm, enabling the production of laminated specialty bags where enhanced strength or moisture resistance is required. Running Speed 60 metres per minute Minimum width bag size 70 mm Maximum width bag size 240 mm Minimum paper width 250 mm Maximum Paper width 500 mm Minimum Paper gsm 35 gsm Maximum Paper gsm 70 gsm Printing units 3 Maximum Roll O/D 1,000 mm Print Cylinders 200, 220, 260, and 310 Repeats Gussett sizes 30 - 90 mm on the following width bags: 125, 160, 175, 200, mm wide bags. Lamination unit Yes Running Speed 50 metres per minute Minimum width bag size 70 mm Maximum width bag size 240 mm Minimum paper width 250 mm Maximum Paper width 500 mm Minimum Paper gsm 26 gsm Maximum Paper gsm 32 gsm Maximum Roll O/D 750 mm

Melbourne City

Australia

Bag making

Manufactured by Windmoeller & Hoelscher, is a versatile, high-performance paper bag production line capable of running at speeds up to 65 metres per minute. It accommodates bag widths from 70–310 mm and paper widths from 250–750 mm, processing lightweight papers between 35–70 gsm. Equipped with three printing units and supporting roll diameters up to 1,000 mm, the machine offers a wide range of print cylinder repeats (230–630) for flexible branding and design requirements. Gusset capabilities from 30–90 mm across multiple bag widths (125–300 mm) enable efficient production of retail, takeaway, and industrial paper bags with consistent quality and reliable throughput. Running Speed 65 metres per minute Minimum width bag size 70 mm Maximum width bag size 310 mm Minimum paper width 250 mm Maximum Paper width 750 mm Minimum Paper gsm 35 gsm Maximum Paper gsm 70 gsm Printing units 3 Maximum Roll O/D 1,000 mm Print Cylinders 230, 260, 300, 310, 320, 340, 360, 380, 390, 400, 430, 470, 530, 630 Repeats Gussett sizes 30 - 90 mm on the following width bags: 125, 160, 175, 200, 220, 240, 260, 275, and 300 mm wide

Melbourne City

Australia

Bag making

Around 1970 Bag width: 70-380 mm Bag length: 160-680 mm Bag side width: 20-90 mm Cutting length: 170-690 mm Folding button: 10-30 mm In-line printer: 3 colors Maximum speed: 400/800 bags/minute Paper thickness: 30-100 gr/sqm Paper width max: 900 mm Paper reel diameter: 1.050 mm Paper reel core diameter: 76 mm Dismantled

Serbia

Bag making

Used FMC Wicket Machine Maximum working material width: 710 mm Maximum draw length: 390 mm Computer and touch screen Possibility to adjust the tension of material between front and rear draw rollers This wicket equipment includes: Driven unwind stand: - Width: 1500 mm - Maximum reel diameter: 1000 mm - Motorized edge guide included Folding triangle motorized, equipped with bottom gusset Main machine equipped with: - Hole punchers for wicket - 2 sets - Side-weld head - 2 sets of 6 collecting wicket arms (important for long bags) - Vacuum pump Accessories : INLINE Hot Pin Unit LINEAR PERFORATION UNIT Bag sizes: Width: 100-400 mm Length ( lip included ): 210-700 mm Average working Speed: 250 bags/ minute Maximum speed: 300 bags/ minute The machine is with 3 motors and servo-motors : - One motor for sealing head - One motor for front draw rollers - One motor for rear draw rollers

Egypt

Bag making

2 colors Width: 600 mm Printing on each cylinder rotation: 600x525 mm2 Printing on two-cylinder rotations: 600x525 mm2 Minimum bag length: 100 mm Maximum thickness of material: - standard: 2.5 mm - automatic lifting-up system: 8 mm Maximum stereo size: 500x480 mm2 Stereo Thickness: 3 mm Machine speed: 1200-2400/ hour

Hungary

Bag making

Designed for the production of zipper doypack pouches, sachets, as well as Stabilo-type pouches (without zipper). Packaging type: Zipper doypack, sachet, Stabilo 15,000 operating hours Included: Water cooler (chiller) for seal cooling PEARL punching tool for creating round holes in doypacks Die-cutting sets for: Euro-holes, Easy-open features, Rounded corners, Pencil notches Two parallel zipper preheating stations (for increased performance) Capability to seal three webs simultaneously Possibility to produce Stabilo-type pouches (without zipper) Functional Capabilities: Production of Doypacks, 3-side seal bags, and Stabilo pouches (no zipper) Three-web operation (top/bottom webs + middle insert for gussets or ZIP) Double preheating ZIP stations for higher throughput Transverse and longitudinal sealing (metal/metal and metal/rubber, up to 40 mm seal width) Full servo-drive system: index, seal, cut, tension, ZIP Die-cut modules: Euro-hole, V-notch, easy-open, rounded corners Mechanical speed: up to 210 cycles/minute Film width: up to 1520 mm Pouch width: up to 820 mm Draw length: up to 610 mm (or up to 1220 mm in skip mode) Suitable for mono-materials and multi-layer laminated films

Poland

Bag making

Automatic Paper Bag Making Machine 3 types of handles Maximum sheet format: 1200x600 mm Minimum sheet format: 620x350 mm Sheet weight: 120-190 g/sqm Bag width: 200-450 mm Bottom width: 80-170 mm Bag length: 250-540 mm Top turn in size: 40-60 mm Handle patch length:  188.5 mm Handle patch width: 30-50 mm Handle patch weight: 140-350 g/sqm Handle patch roll width: 60-100 mm Twist rope diameter: 4-6 mm Twist rope height: 170-195 mm Maximum Production speed: 70 bags/minute

Slovenia

Bag making

Sheet width: 600-1050 mm Sheet length: 400-600 mm Paper weight: 100-120 g/sqm Bag width: 220-350 mm Bag length: 290-470 mm Bottom width: 65-160 mm Tube length: 340-540 mm Interval of holes: 80-120 mm Maximum speed: 70 bags/minute

South Korea

Bag making

Bag size Bag Width: 100-200 mm Bottom width: 60-140 mm Finished Length: 205 – 510 mm Cutting length: 260-550 mm Sheet size Maximum sheet width: 810 mm Maximum diameter: 1200 mm Sheet basis weight: Inner layer paper: 50-70g/sqm Outer layer: 60-90g/sqm Paper tube inner diameter: 70 mm Bottom sheet size Maximum sheet width: 200-240 mm Maximum diameter: 600 mm Sheet weight: 70-90g/sqm Paper tube inner diameter: 76 mm Maximum productivity: 120 - 240 bags/minute

South Korea

Bag making

Speed: 500 m/minute Maximum Paper Reel width:1600 mm Paper Reel inner diameter: 76 / 152 mm Maximum paper reel diameter: 1650 mm Minimum cutting width: 50-70 mm Maximum cutting width: 1000 mm Paper thickness: 30-250 g/sqm Maximum Reel weight: 1800 kg Nordson Gluing pump

Turkey
