Machine Description
4 Printing Units Blanket to Blanket.
Year: 2010.
Cut-off: 2 x 578 mm.
Cylinder circumference: 1156 mm.
Web width: 1905 mm.
Max.speed: 45.000 Rev.PH.
Productions hours: ca. 36.000.
Web Direction: Left to Right.

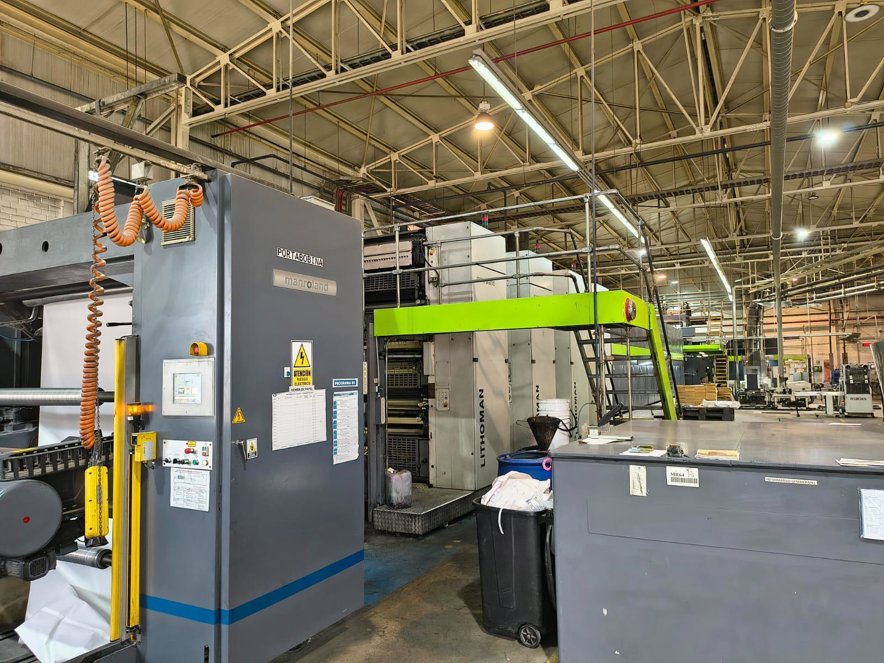

Konfiguration: Megatec DLC Splicere, Auto loading.
MAN infeed unit.
E&L web Guide.
Websevering device.

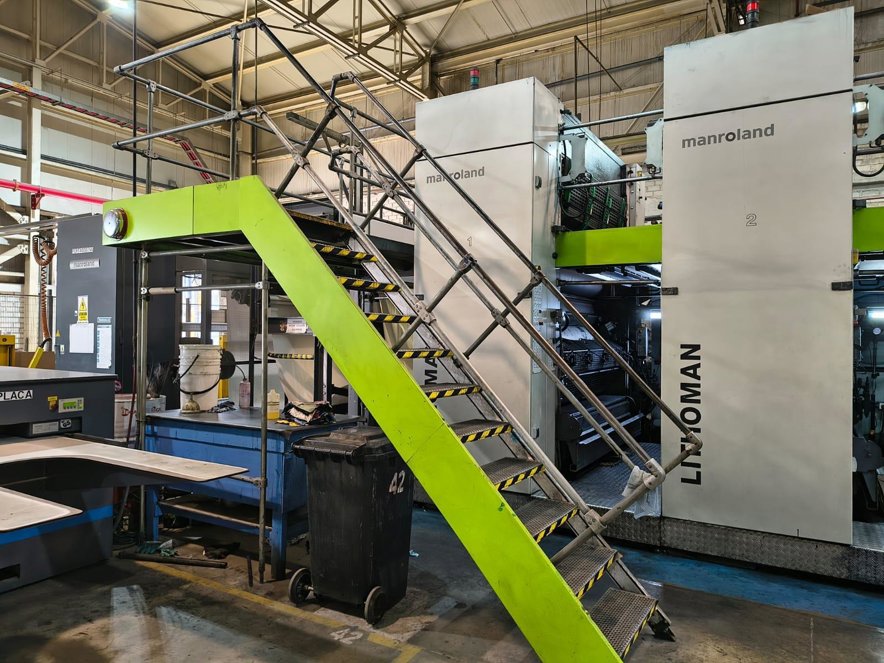

4 MAN Lithoman printing units - Blanket to Blanket.

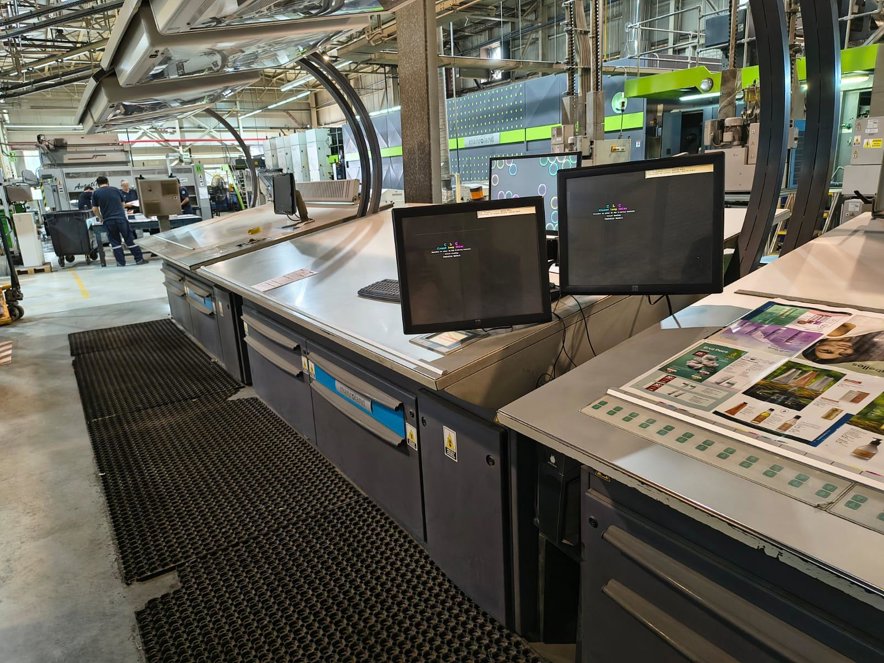

MAN Roland Pecom Press control station.
- 1 Main Control Console.

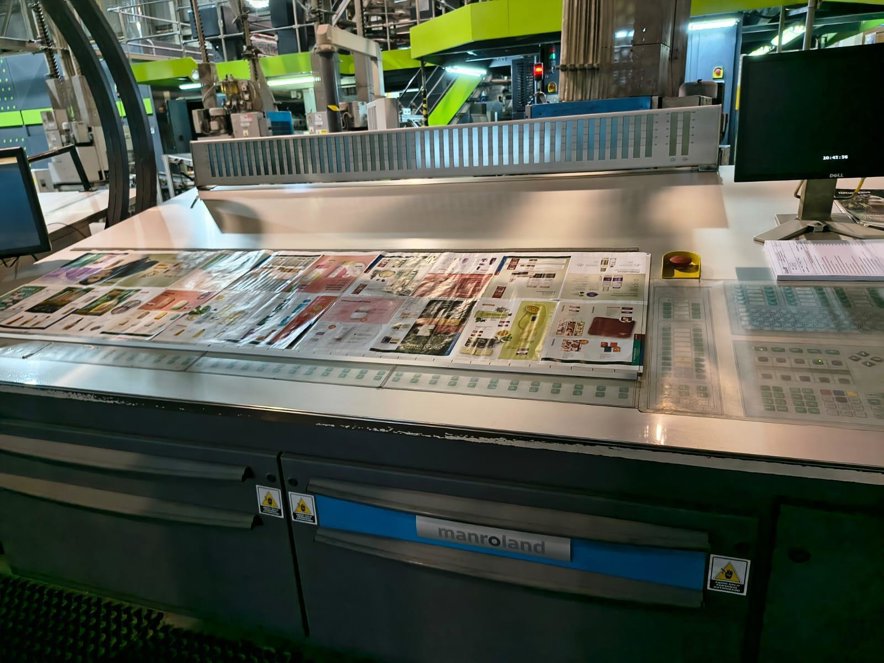

- 2x Color Console.
- Electrical Drive & Control system.
- Semiautomatic plate loading.

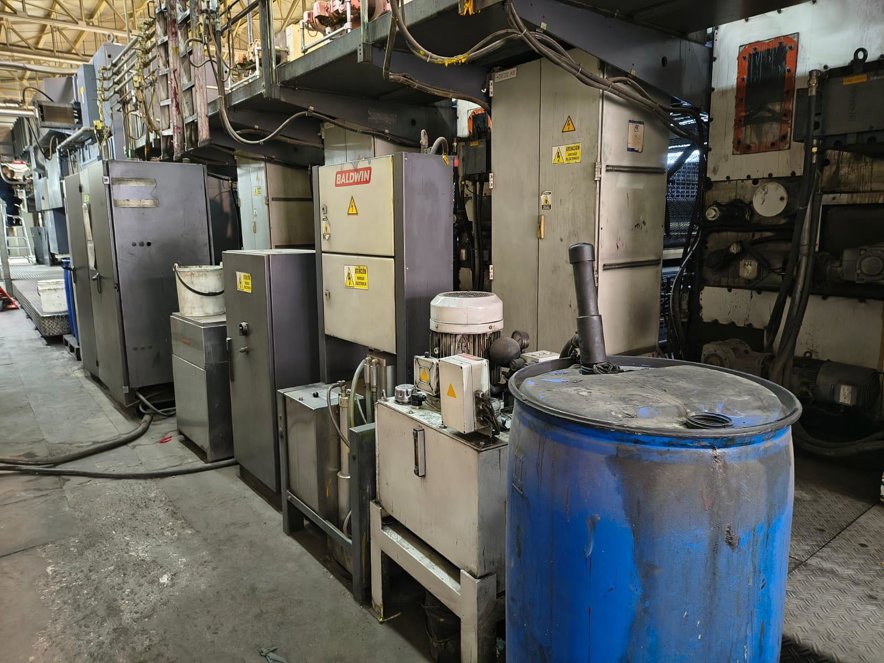

- Baldwin blanket washing device.
- Technotrans Deltad400 refrigeration Unit.
1 Baldwin web catcher.

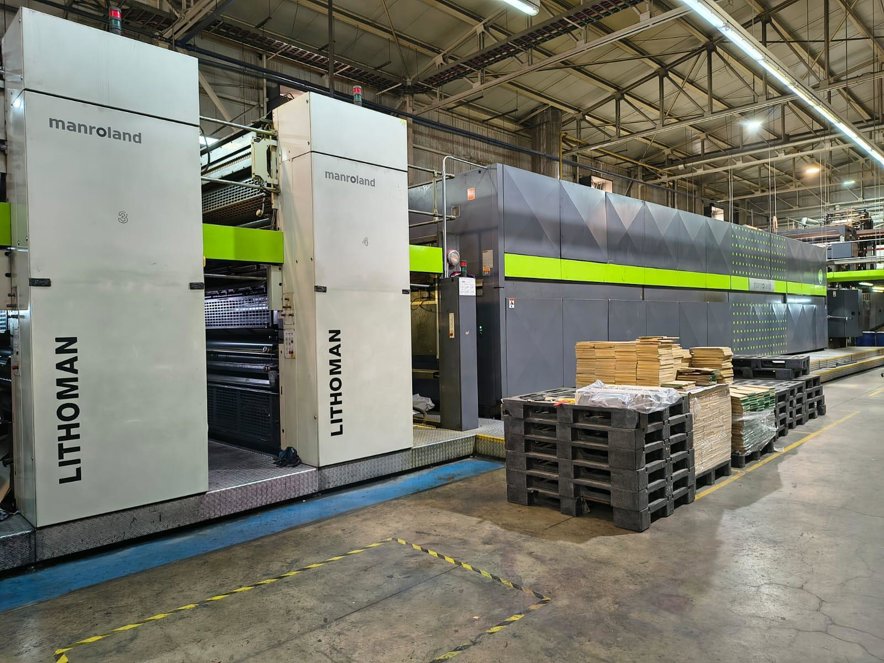

1 Megatec DDTNV hotair dryer (15.3 mtr).
1 MAN-6 Chill Roll Stand.
- BALDWIN first chill roll cleaning device.
- Servo drive.
E&L web guides.
WEKO Silicon Applicator.
Spine Moiserting and gluing.
Quad / Tech RGS.
- Automatic color console.
- Automatic Cut off control.
- Closed Loop color control.

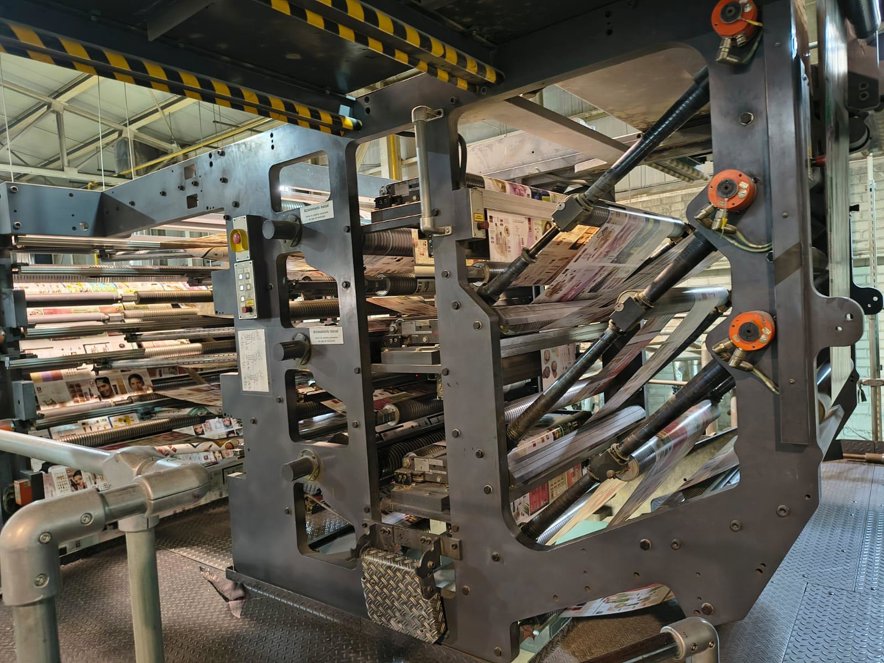

MAN Folder Superstructure.
- two slitter shafts.
- three sets of turner bars.
- three compensators.
- three on air loaded former.
- three web guides.
MAN PFW 2:5:5 collect / Non-collect Folder.
Products A3, A4, d.p & Delta.
2 X A4 delivieries (upper & lower).
Accumulator for both A4 streams to lower A4 delivery.
Plate bender.
Complete set books and drawings...
The Manroland LITHOMAN IV 64 Pages is a high-performance heatset web offset printing press designed for commercial printing applications. This 4-color blanket-to-blanket press delivers exceptional print quality at speeds up to 45,000 revolutions per hour, making it ideal for high-volume production of magazines, catalogs, brochures, and other commercial print products. Built in 2010, this 64-page configuration features advanced automation, precise color control, and versatile finishing capabilities, ensuring efficient operation and consistent output for demanding print environments.
Key Technical Aspects:
Dimensions and Specifications : The LITHOMAN IV features a cylinder circumference of 1156 mm with a cut-off of 2 x 578 mm, supporting a maximum web width of 1905 mm. The press operates at speeds up to 45,000 revolutions per hour with approximately 36,000 production hours logged. The machine includes a 15.3-meter Megatec DDTNV hot air dryer and a 6-chill roll stand for efficient ink drying and cooling.
Paper Handling : The press is equipped with a Megatec DLC splicer for automatic roll loading, MAN infeed unit, E&L web guides, and a web severing device. It processes paper in a left-to-right web direction and includes a Baldwin web catcher, WEKO silicon applicator, and Quad/Tech RGS for precise web control and finishing.
Printing Unit : The machine comprises 4 blanket-to-blanket printing units with MAN Roland Pecom press control, including 1 main control console and 2 color consoles. It features semiautomatic plate loading, Baldwin blanket washing devices, and Technotrans Deltad400 refrigeration for temperature control. Advanced features include automatic cut-off control, closed-loop color control, and servo-driven components for precise registration and print consistency.
Plate Cylinder : The press includes semiautomatic plate loading and a plate bender for efficient plate preparation. The system supports precise plate positioning and is integrated with the Pecom control station for streamlined operation.
| Model | Manroland- LITHOMAN IV 64 Pages |
|---|---|
| Manufacturer | Manroland |
| Year | 2010 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Brynjulf Bulls plass 1, 0250 Oslo, Norway |
Manroland - LITHOMAN IV 64 Pages
Send Message to Seller
Login to Send Message to Seller
Avail Financing
We work with multiple financial partners to help you avail credit facility to buy your equipment. Kindly confirm your details and our representative shall contact you.
Shipping & Logistics
Please provide basic information on port of origin and destination and the right person shall contact you.
Jewa Trading GMBH
We have been working in the graphic arts industry for 34 years. In addition to selling machines, we also offer complete relocation of machines.
Explore Inventory trending_flatFind the Right Equipment
Kindly add details of the equipment you seek; and you shall find. Our community of manufacturers, sellers, and professionals will procure it for you.
Login to Post your Requirements
Recently Added Machines
The World of Print at your Fingertips
The Machine Dalal Mobile Apps
Download our Machine Dalal App Regular updates from our magazine with illustrations, innovations, commodities, history, media, art and a whole lot more from the magnificent world of Print.
Get the App
The Machine Dalal Newsletter
Industry News, Research, Product Updates, Information on Equipment Manufacturers and Brands.
The Machine Dalal Newsletter keeps the reader updated on the latest from the world of print, packaging and converting. New and used equipment for sale from all around the world to interesting stories from the print world. Learn more on the newest technologies and launches from experts. Interviews with industry veterans and stalwarts.
Regular updates from our magazine with illustrations, innovations , commodities, history, media, art and a whole lot more from the magnificent world of Print.

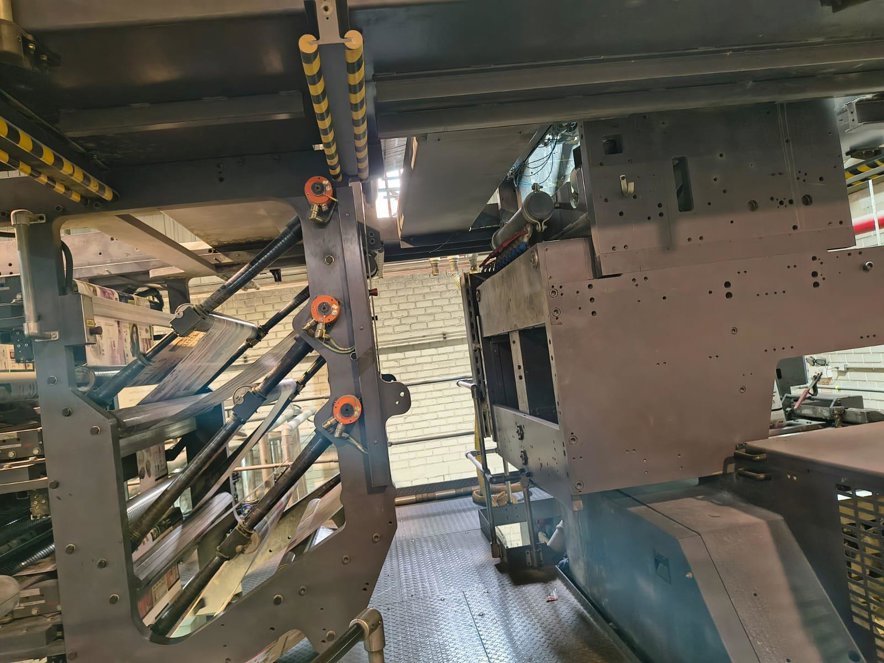

Commercial / Heatset | LITHOMAN IV 64 Pages
