Machine Description
Format: 315x470 mm (Berlin format).

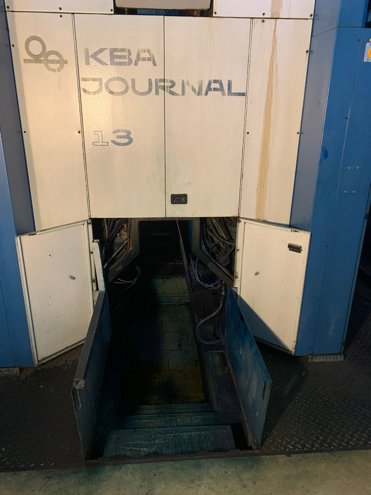

Printing machine: KBA Journal.

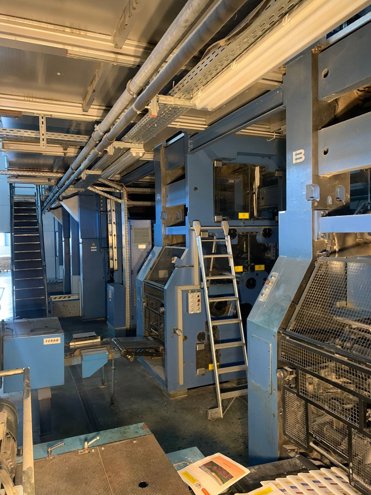

Configuration: 3 four-high towers with H printing units.

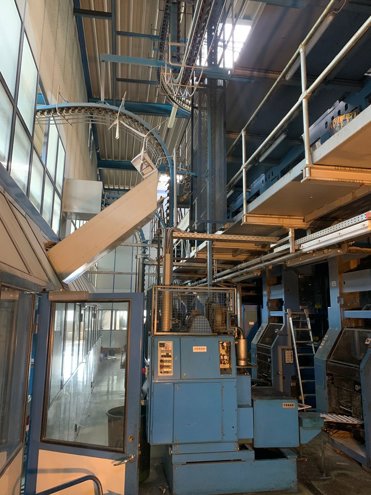

Folders: 2 KBA KF 64 (cylinder system 2:3:2).

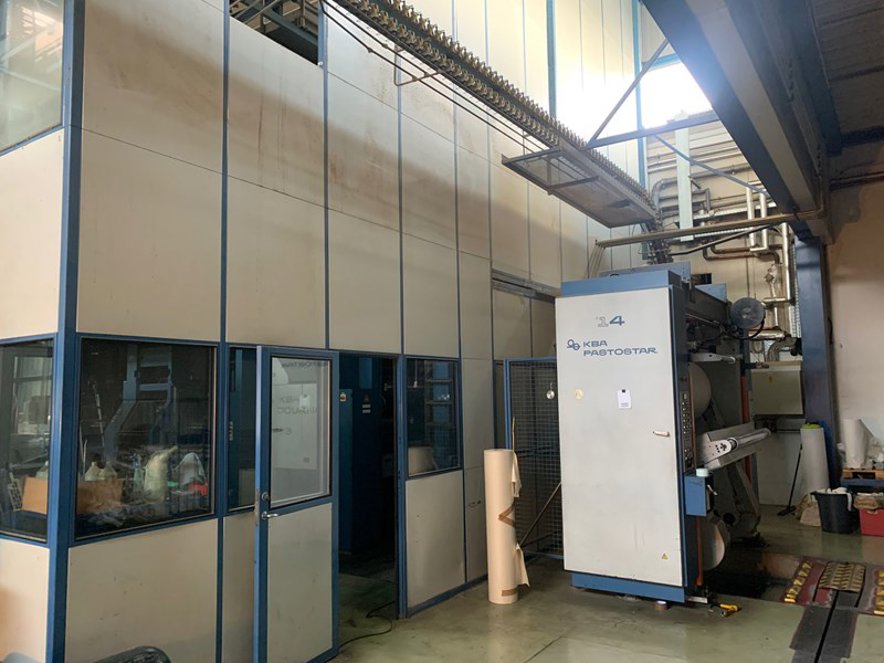

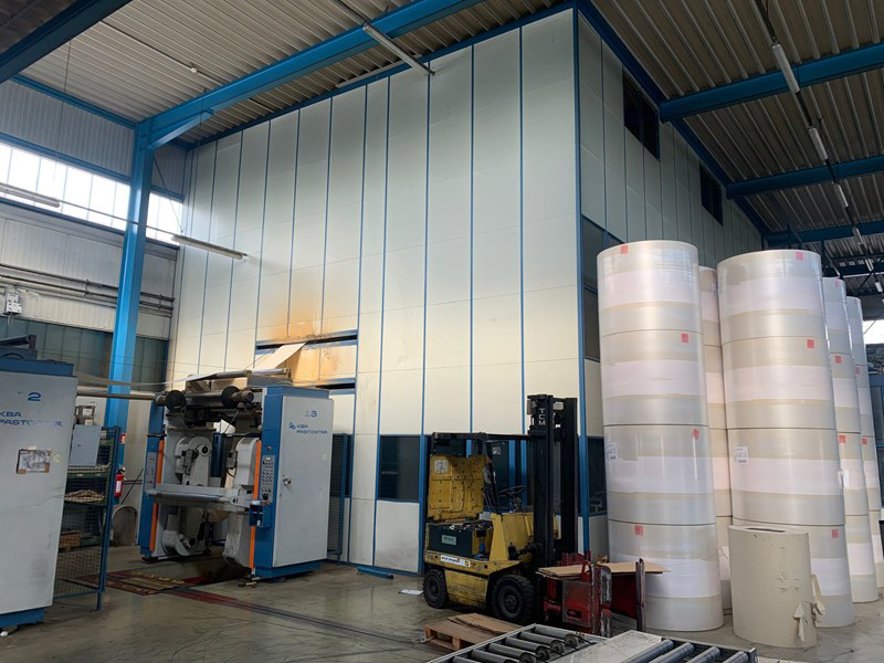

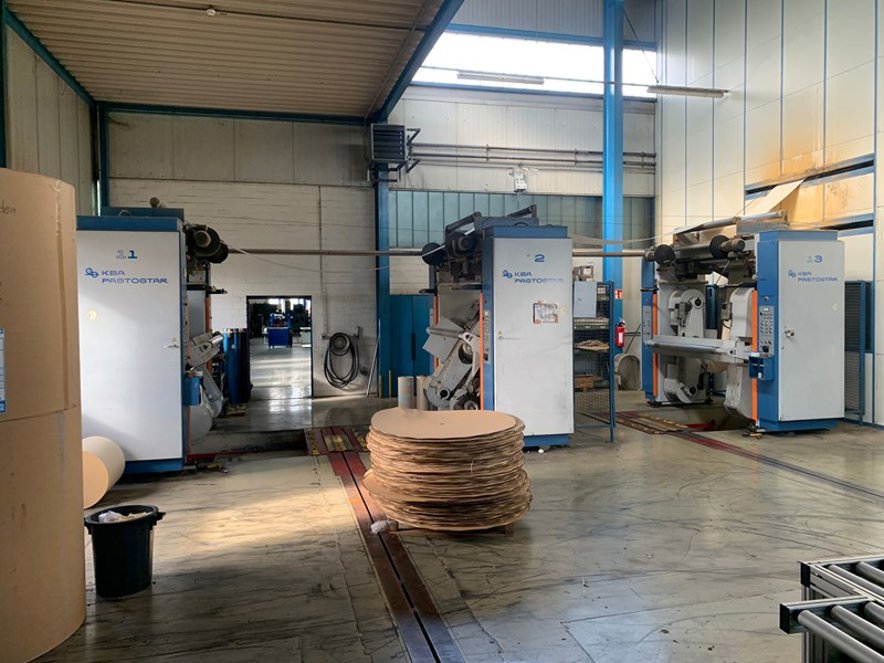

Reel splicer: 4 beltless reel carriers KBA Pastorstar.
Drive technology: Shaftless DRIVETRONIC.
Production output max.: 32,500 single production / 65,000 double production copies/h.
Colors: 48 pages in Berlin format, all pages in 4c.
96 pages tabloid all pages in 4c.
Type area single page: 280 x 420 mm (285 x 440 mm max.).
Type area panorama: 596 x 420 mm (596 x 440 mm max.).
Panorama pages can be placed on all double pages..
Paper: uncoated paper 45 gsm to 60 gsm.
Data transfer: FTP server.
Exposure: CTP direct exposure to printing plate.
Screen frequency: 40 – 48 100 lpi/ 1270 dpi for exposures.
Standard: IFRA standard is aimed at.

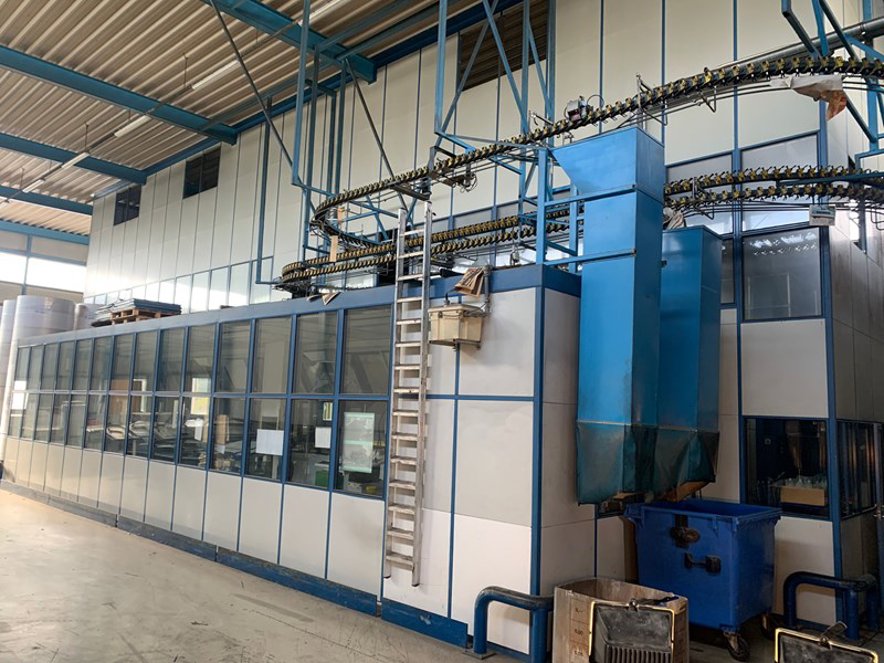

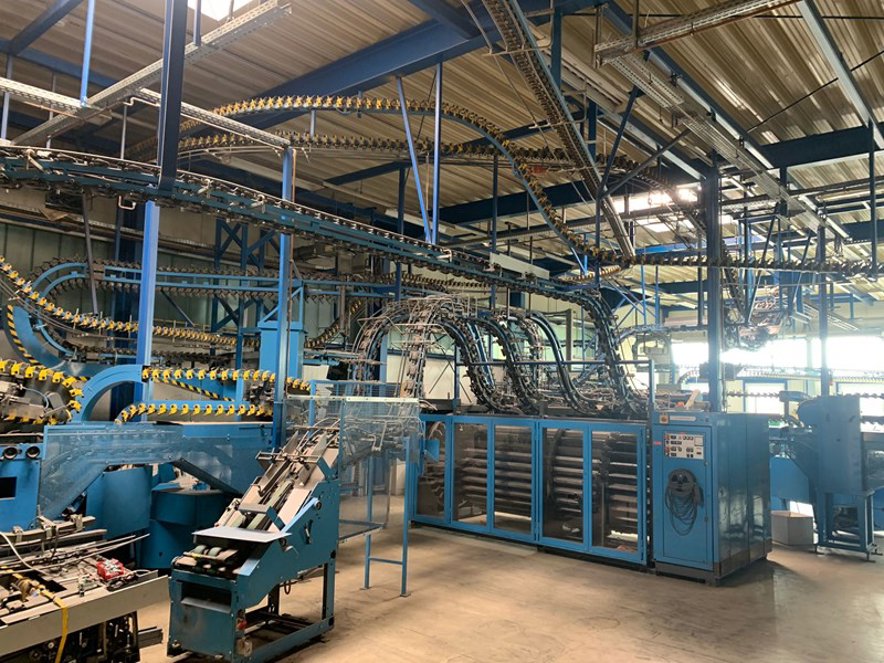

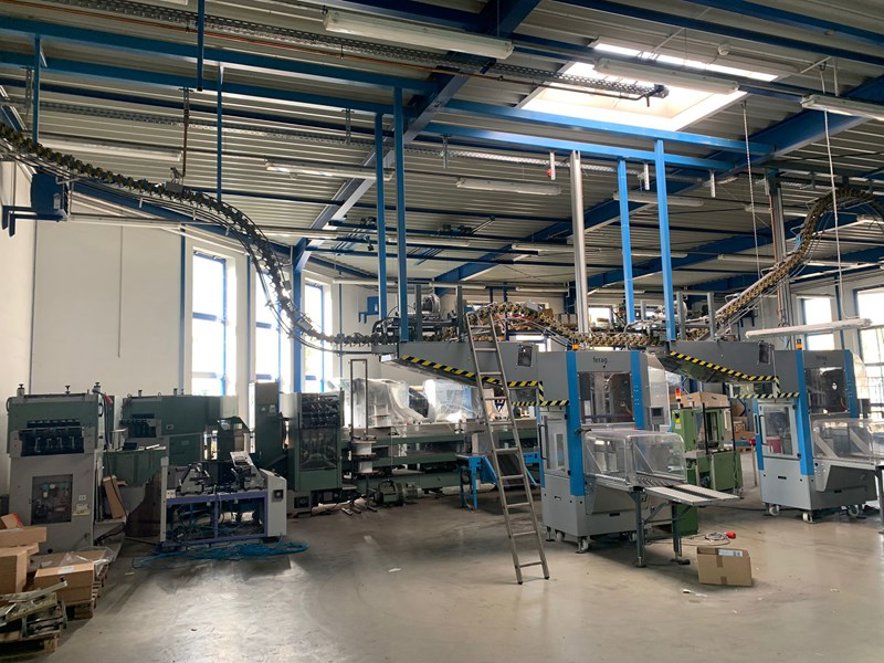

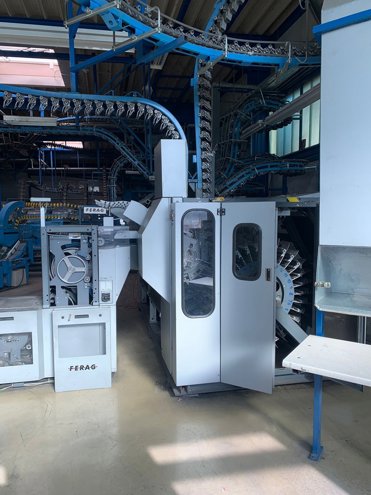

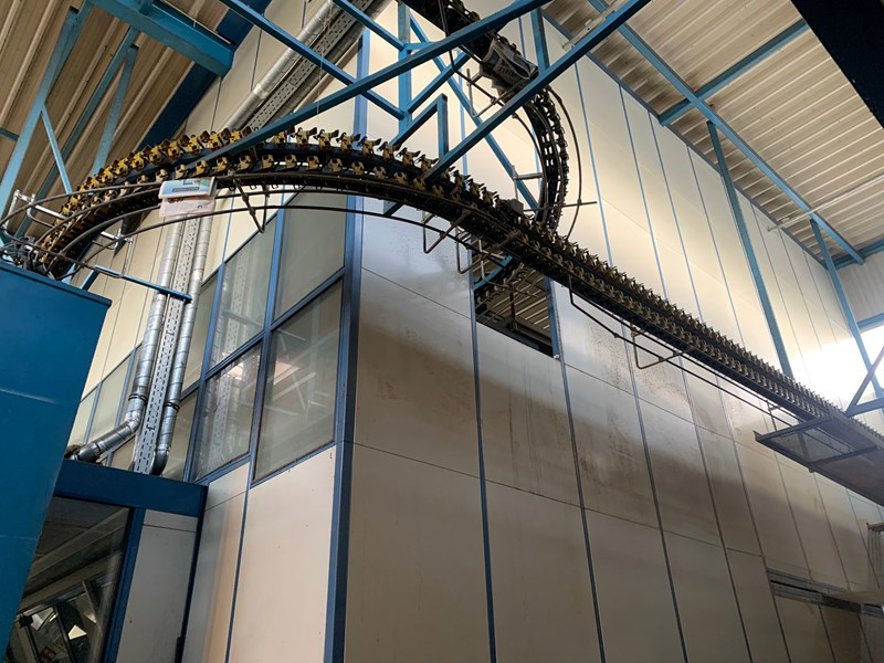

Inserting systems: 1 Ferag drum with Ferag RollStream with 15 insert stations.
1 Ferag drum with 5 insert stations for inserts or brochures in newspapers
| Model | KBA-Journal |
|---|---|
| Manufacturer | KBA |
| Year | 1998 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Netherlands |
About KBA - Journal
The KBA Journal is a high-performance sheetfed offset printing press designed for commercial and packaging printing applications. This machine is ideal for printing high-quality materials such as brochures, catalogs, and packaging materials. Key features of the KBA Journal include its high-speed printing capabilities, advanced paper handling system, and precise registration control. The benefits of using the KBA Journal include increased productivity, reduced waste, and improved print quality. Typical applications of the KBA Journal include commercial printing, packaging, and label printing.
Key Technical Aspects:
Dimensions and Specifications : The KBA Journal has a length of 23.6 ft (7.2 m), a width of 10.5 ft (3.2 m), and a height of 8.2 ft (2.5 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 28.7 x 40.2 in (730 x 1020 mm).
Paper Handling : The KBA Journal features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet size range of 12.6 x 18.1 in (320 x 460 mm) to 28.7 x 40.2 in (730 x 1020 mm). The machine is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking.
Printing Unit : The KBA Journal has a maximum printing speed of 18,000 sheets per hour and a printing resolution of 254 lpi (100 l/cm). It uses a conventional offset printing technology with a maximum of 10 printing units.
Ink System : The KBA Journal uses a high-pigmentation, quick-drying ink system with a maximum ink capacity of 22 lbs (10 kg) per unit. The machine features an automatic ink supply system and an ink temperature control system.
Plate Cylinder : The KBA Journal has a plate cylinder diameter of 4.3 in (110 mm) and a plate thickness of 0.04 in (1 mm). The machine features a semi-automatic plate changing system and a plate cleaning system.
