Machine Description
Cut-Off: 578 mm.
Cylinder circumference: 1156 mm.
Web width: 1450 mm.
Printing area max.: 572 X 1445 mm.
Paper Grammage: 40 - 130 g/m².
Speed max.: 45.000 RPM.
Direction: Left to Right.
Equipment: 1 KBA Pastomatr RC Splicer.
max. reel diameter 1270 mm.
Patras A auto reel loading.
1 KBA EZW 1450 Web Infeed.
E&L Web guid.
4 KBA C 618 Printing Units.
KBA Opera ( DriveTronic, ErgoTronic, ColorTronic).
KBA LogoTronic professional.
Minigap Technology.
Semi automatic Plate change .
VARIDAMP dampening.
TECHNOTRANS Delta.d 300W Refrigeration Unit.
BALDWIN IMPACT Blanket wash.
TECHNOTRANS Auto ink supply.
1 Graficontrol CR25 .
1 Graficontrol CR8-TS.
1 Graficontrol Densiweb.

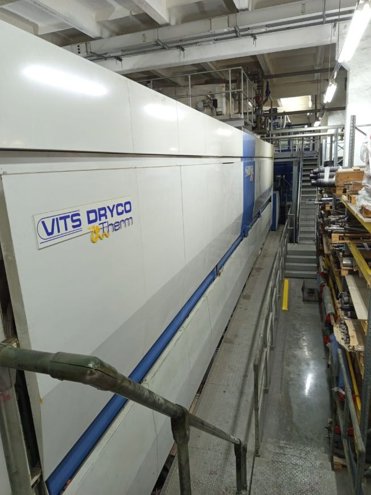

1 VITS ROTOLINE Sirius Hot Air Dryer.
integrated Afterburner.
1 BALDWIN Web Catcher.
1 KBA KWS 4 Roll Chill Unit.
1 WEKO WFG 2.4 Silicon applicator.
1 Eltex Webmoister 70.
1 E&L Web Guide.
1 KBA Folder Upper Structure.
Slitting Unit with two knives.
Two pairs of air loaded angle bars.
Two Compensators.
Two air loaded Formers.
1 HHS Autosys Vario gluing system.
1 KBA V5-1156 Folder.
production: A/3-A/4- double parallel and DELTA .
1 Axima i.cool Aquacenter S Cooling Center.
1 FALK Drucktech 200 water preparation...
The KBA COMPACTA C 618 is a high-performance heatset web offset printing press designed for commercial printing applications. Part of the renowned COMPACTA series by KBA, this machine combines precision engineering with advanced automation to deliver exceptional print quality, efficiency, and versatility. With a maximum speed of 45,000 revolutions per hour and a robust configuration of four printing units, the COMPACTA C 618 is ideal for producing high-volume commercial print jobs such as magazines, catalogs, brochures, and direct mail. Key features include advanced web handling, automated plate changing, and integrated drying systems, ensuring consistent output and reduced setup times for enhanced productivity.
Key Technical Aspects:
Dimensions and Specifications : The KBA COMPACTA C 618 features a cut-off length of 578 mm and a cylinder circumference of 1156 mm, accommodating a maximum web width of 1450 mm. The maximum printing area is 572 x 1445 mm, with a production speed of up to 45,000 revolutions per hour. The press operates from left to right and is equipped to handle paper grammage ranging from 40 to 130 g/m².
Paper Handling : The machine includes a KBA Pastomatr RC splicer with a maximum reel diameter of 1270 mm and Patras A auto reel loading for seamless paper roll changes. The KBA EZW 1450 web infeed, combined with E&L web guidance, ensures precise web control. Additional features include a BALDWIN Web Catcher, KBA KWS 4 Roll Chill Unit, WEKO WFG 2.4 silicon applicator, and Eltex Webmoister 70 for optimal paper handling and conditioning.
Printing Unit : The COMPACTA C 618 is equipped with four KBA C 618 printing units, featuring KBA Opera automation (DriveTronic, ErgoTronic, ColorTronic), LogoTronic professional, and Minigap Technology for enhanced print precision. The press includes semi-automatic plate changing, VARIDAMP dampening, and a TECHNOTRANS Delta.d 300W refrigeration unit. Blanket washing is managed by the BALDWIN IMPACT system, while the VITS ROTOLINE Sirius Hot Air Dryer with an integrated afterburner ensures efficient drying.
Ink System : The machine utilizes a TECHNOTRANS auto ink supply system, providing consistent ink distribution and reducing waste. The integrated ink management system supports high-quality print output with minimal manual intervention.
Plate Cylinder : The press features semi-automatic plate changing, allowing for quick and efficient plate adjustments. The system is designed to minimize downtime and enhance operational efficiency during job changes.
| Model | KBA-COMPACTA C 618 |
|---|---|
| Manufacturer | KBA |
| Year | 2008 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Oslo, Norway |
