Machine Description
Counter: 922 109 543.
Cut-Off: 578 mm.
Cylinder circumference: 1156 mm.
Web width: 1450 mm.
Printing area max.: 572 X 1445 mm.
Paper Grammage: 40 - 130 g/m².
Speed max.: 45.000 RPM.
Direction: Left to Right.
Equipment: 1 KBA Pastomatr RC Splicer.
max. reel diameter 1270 mm.
Patras A auto reel loading.
1 KBA EZW 1450 Web Infeed.
E&L Web guid.
4 KBA C 618 Printing Units.
KBA Opera ( DriveTronic, ErgoTronic, ColorTronic).
KBA LogoTronic professional.
Minigap Technology.
Semi automatic Plate change .
VARIDAMP dampening.
TECHNOTRANS Delta.d 300W Refrigeration Unit.
BALDWIN IMPACT Blanket wash.
TECHNOTRANS Auto ink supply.
1 Graficontrol CR25 .
1 Graficontrol CR8-TS.
1 Graficontrol Densiweb.

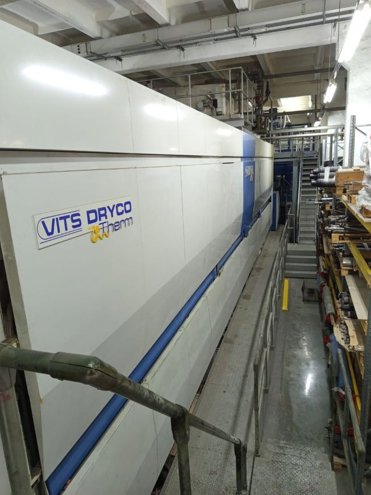

1 VITS ROTOLINE Sirius Hot Air Dryer.
integrated Afterburner.
1 BALDWIN Web Catcher.
1 KBA KWS 4 Roll Chill Unit.
1 WEKO WFG 2.4 Silicon applicator.
1 Eltex Webmoister 70.
1 E&L Web Guide.
1 KBA Folder Upper Structure.
Slitting Unit with two knives.
Two pairs of air loaded angle bars.
Two Compensators.
Two air loaded Formers.
1 HHS Autosys Vario gluing system.
1 KBA V5-1156 Folder.
production: A/3-A/4- double parallel and DELTA .
1 Axima i.cool Aquacenter S Cooling Center.
1 FALK Drucktech 200 water preparation...

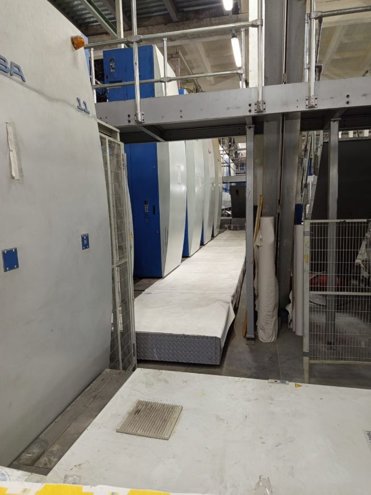

The KBA COMPACTA C 618 is a high-performance heatset web offset printing press designed for commercial printing applications. This advanced machine combines precision engineering with innovative automation features to deliver exceptional print quality, operational efficiency, and production flexibility. Key features include a maximum speed of 45,000 revolutions per hour, advanced color control systems, and integrated automation for plate changing and web handling. Ideal for producing high-volume commercial print products such as magazines, catalogs, brochures, and direct mail, the COMPACTA C 618 offers reliable performance with reduced makeready times and consistent output quality.
Key Technical Aspects:
Dimensions and Specifications : The COMPACTA C 618 features a cut-off length of 578 mm with a cylinder circumference of 1156 mm. It accommodates a maximum web width of 1450 mm and printing area of 572 × 1445 mm, operating at speeds up to 45,000 revolutions per hour (RPM) with left-to-right production direction. The machine includes a counter with reading 922 109 543 and supports a maximum reel diameter of 1270 mm.

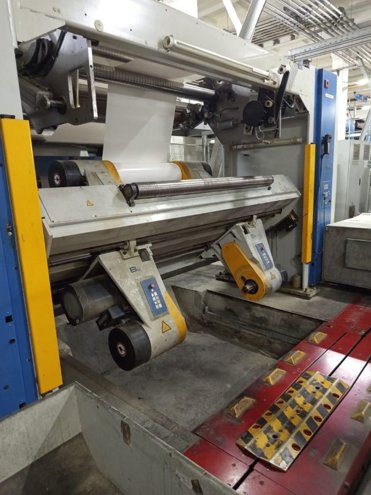

Paper Handling : This press handles paper grammage ranging from 40 to 130 g/m². It is equipped with a KBA Pastomatr RC splicer featuring Patras A auto reel loading, KBA EZW 1450 web infeed with E&L web guidance, and BALDWIN Web Catcher. Additional features include E&L web guides, Eltex Webmoister 70 for moisture control, and a comprehensive folder upper structure with slitting unit, air-loaded angle bars, compensators, and formers.

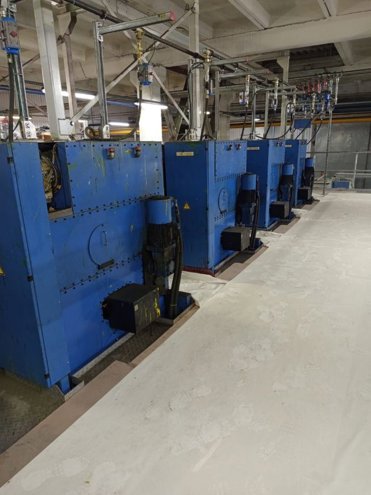

Printing Unit : The machine includes four KBA C 618 printing units featuring KBA Opera technology with DriveTronic, ErgoTronic, and ColorTronic systems. It offers LogoTronic professional automation, Minigap Technology for reduced cylinder gaps, semi-automatic plate changing, VARIDAMP dampening system, and TECHNOTRANS Delta.d 300W refrigeration unit. The press also incorporates BALDWIN IMPACT blanket wash and TECHNOTRANS auto ink supply, along with Graficontrol CR25, CR8-TS, and Densiweb quality control systems.
Ink System : The COMPACTA C 618 utilizes TECHNOTRANS Auto ink supply system for precise ink management. It features a TECHNOTRANS Delta.d 300W refrigeration unit to maintain optimal ink temperatures and consistency throughout the printing process.
Plate Cylinder : The press employs semi-automatic plate changing technology with Minigap Technology that reduces cylinder gaps for improved print quality and reduced waste. The plate cylinders are integrated with the KBA Opera system for enhanced automation and control.
| Model | KBA-COMPACTA C 618 |
|---|---|
| Manufacturer | KBA |
| Year | 2008 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Dronning Mauds gate 1, 0250 Oslo, Norway |
