Machine Description
Cut-Off: 620 mm.
Web with max.: 1000 mm.
Web width min.: 420 mm.
Printing area max.: 614 X 995 mm.
Paper Grammage: 30 - 130 g/m².
Speed: 50.000 RPM.
Direction: Left to Right.
Equipment: 1 KBA pastostar RC Reelstand.
max. reel diameter 1270 mm.
Patros auto reel loading.
1 KBA EZW 1000 Infeed.
E&L Web guid.
5 KBA C 215 Printing Units.
Direct Drive.
Minigap Technology.
Fully automatic Plate change on Unit 1 & 2 (flying plate change capability).
Semi automatic Plate change on Unit 3,4 &5.
Oxy-Dry Kombi Blanket wash.
Auto ink supply.
1 VITS OTS Sirius Hot Air Dryer.
integrated Afterburner.
1 KBA Web Catcher.
1 KBA KWS 3 Roll Chill Unit.
1 WEKO WFG 2.4 Silicon applicator.
1 E&L Web Guide.
1 KBA Folder Upper Structure.
Slitting Unit with two knives.
Two pairs of air loaded angle bars.
Two Compensators.
Two air loaded Formers.
1 KBA 16 page Pinless Folder.
production: A/3-A/4- double parallel and DELTA .
1 KBA 8 page stacked Folder.
2 X 8 page A/4.
1 Remote Folder Console.
1 Planatol Gluing System.
1 Grafikontrol CR20 automatic Color Register Control.
1 Grafikontrol CR8 automatic Ribbon- Cut-off Register.
1 GRAFIkontrol Densiweb - Automatic Closed Loop Color Control.
1 Technitrans Delta d 160W Refrigaration/Recirculation for Dampening.

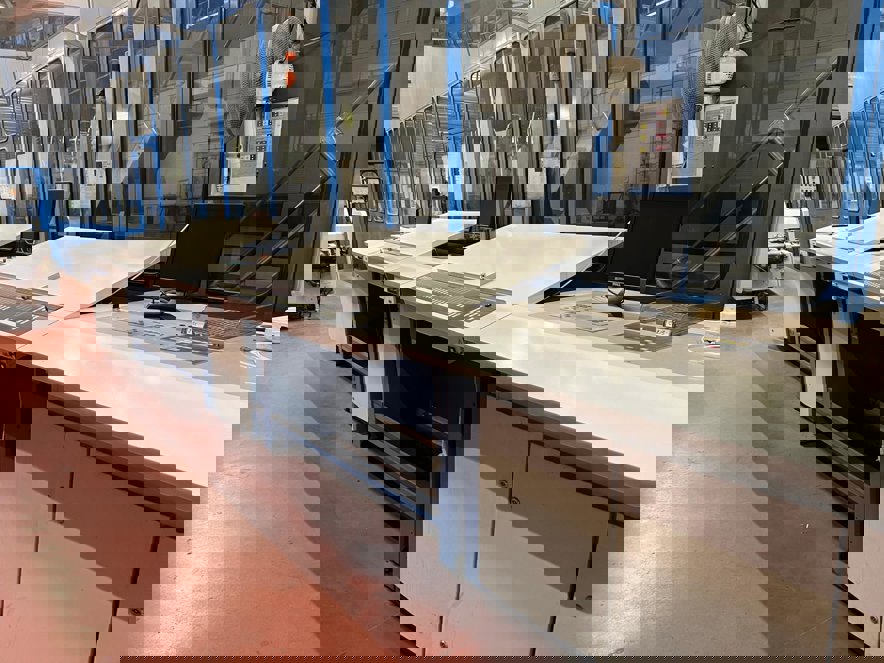

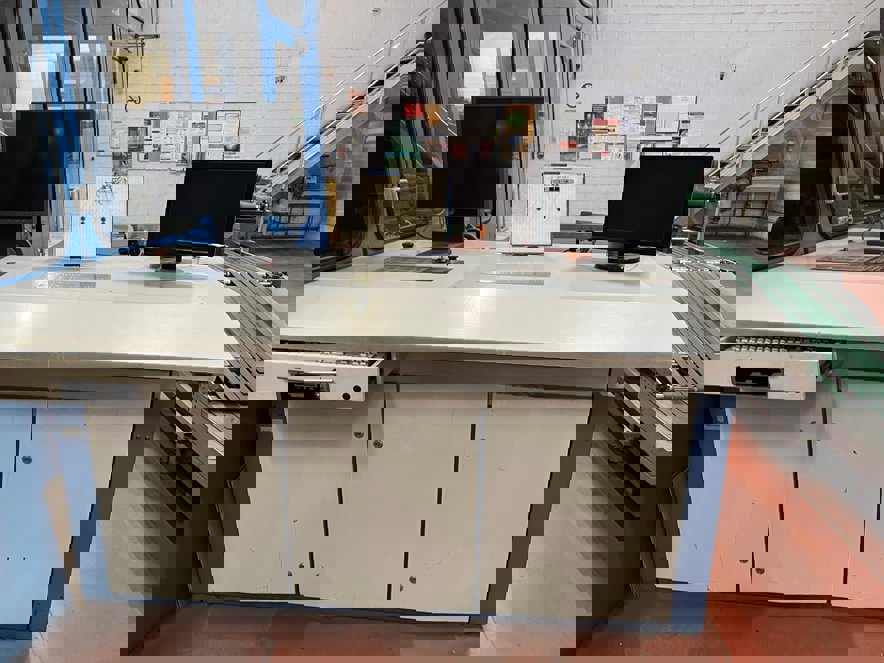

1 KBA Main Control Desk.
2 KBA Color Desks.
1 KBA Drivetronic Drive and Control System.
Rexroth variator replaced in 2021.
KBA Opera.
1 Sulzrer Central Chilling System.
1 Berth AKA 200M Plate Bender.
1 AKA 200S Blanket Bender.
1 Plate punch.
1 Set of Manuals and Drawings.
1 All C215 Spare Part & Rollers.
1 Noise Enclosure.
1 Small Forklift Truck with reel Clamps (STILL R70-30T.
Post Press.

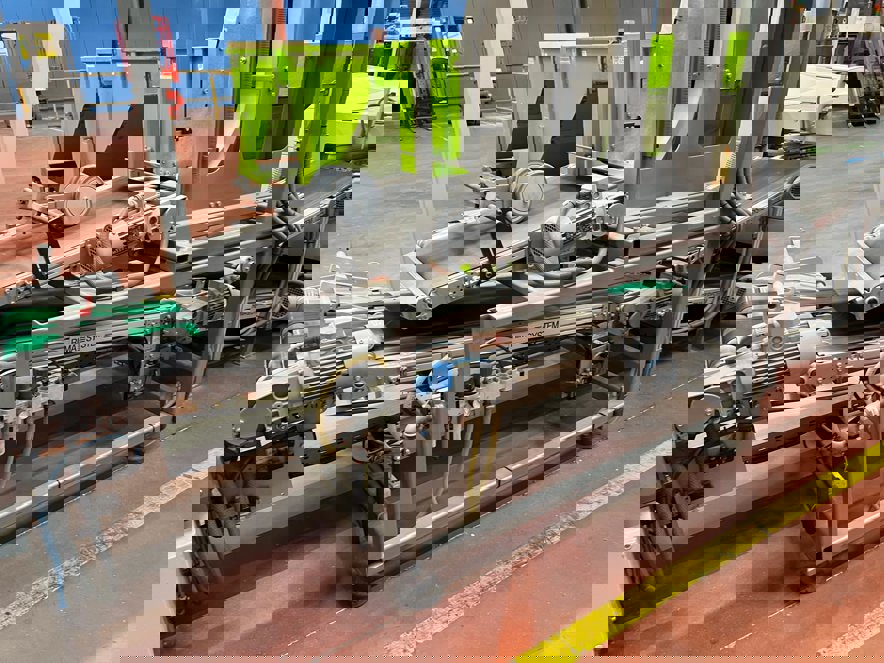

Equipment: 1 Exit Conveyors.
1 RECMI Combined Bump/Flow Turn.
1 Waste Copy Conveyor.
1 Rotaschneider Rotary Trimmers.
1 Rotoschneider Bump Turn.
1 Gämmerler KL 540 Comensating Stacker.
1 RECMI HC610 Log Stacker and Palletizer.
Condition: Excellent (8)...

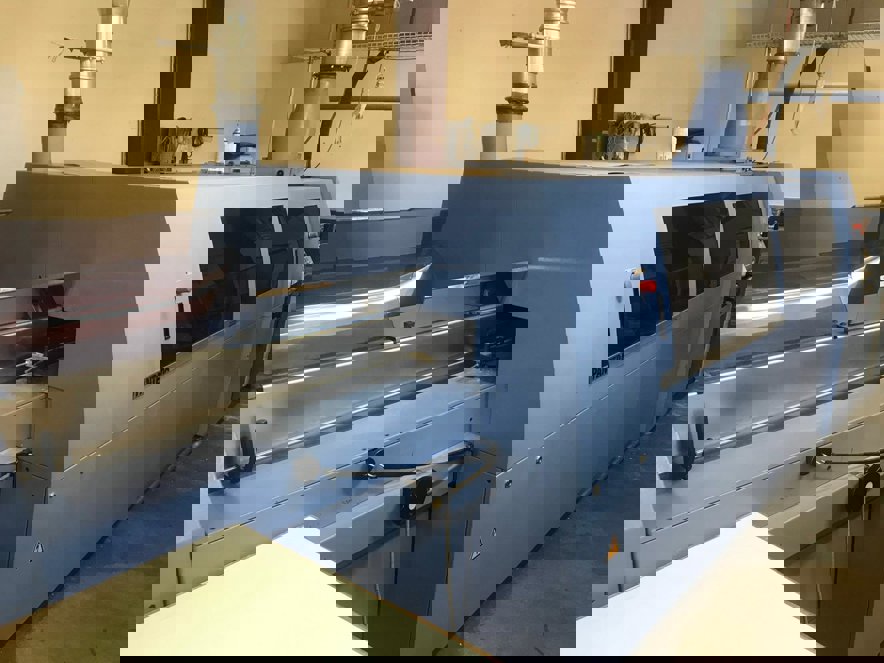

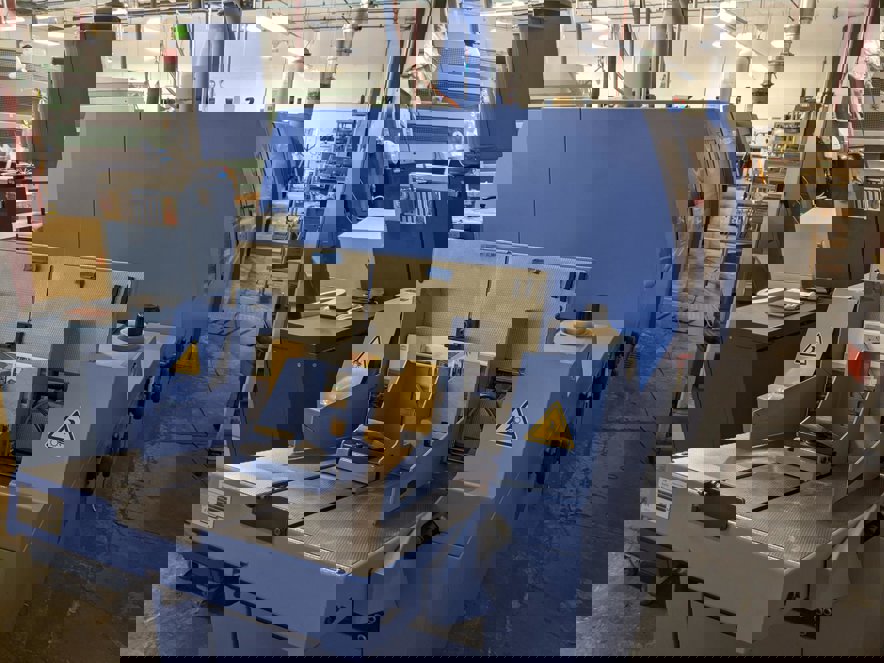

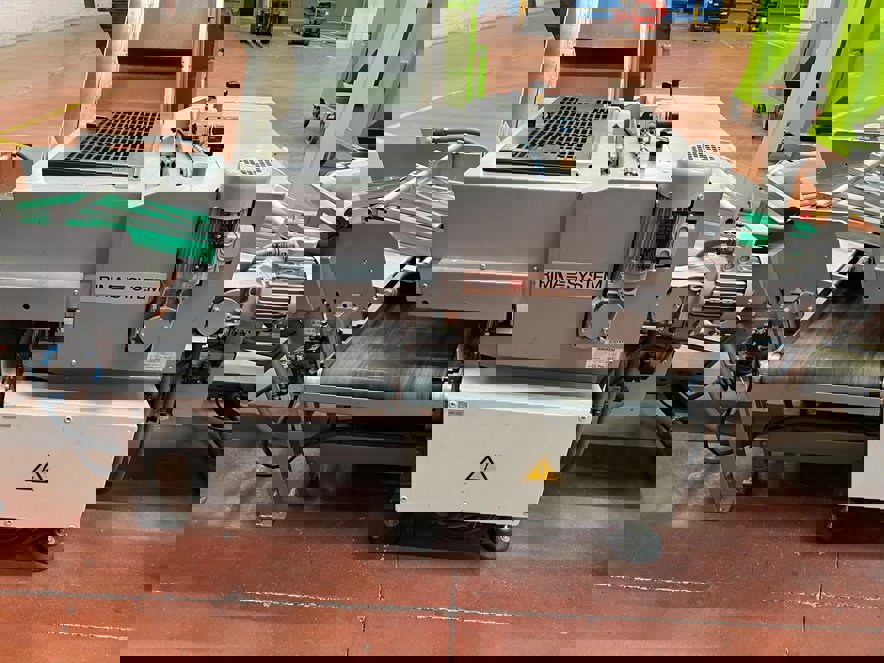

The KBA COMPACTA C 215 is a high-performance heatset web offset printing press designed for commercial printing applications. This robust machine combines precision engineering with advanced automation features to deliver exceptional print quality at speeds up to 50,000 revolutions per hour. Ideal for producing magazines, catalogs, brochures, and direct mail, the COMPACTA C 215 offers versatility with its 5 printing units, fully automatic plate changing capabilities, and comprehensive finishing options. The press incorporates KBA`s Minigap Technology for reduced waste and improved efficiency, along with state-of-the-art color control systems for consistent, high-quality output.
Key Technical Aspects:
Dimensions and Specifications : The COMPACTA C 215 features a maximum cut-off length of 620 mm with a web width range from 420 mm to 1000 mm. The maximum printing area measures 614 x 995 mm, accommodating paper grammage from 30 to 130 g/m². Operating at speeds up to 50,000 RPM (revolutions per hour) with left-to-right web direction, the press includes a comprehensive control system with KBA Drivetronic and Opera software.
Paper Handling : The press is equipped with a KBA pastostar RC reelstand supporting maximum reel diameter of 1270 mm and featuring Patros auto reel loading. The KBA EZW 1000 infeed system includes E&L web guidance, with additional web guides throughout the press. The machine handles continuous web processing through a VITS OTS Sirius hot air dryer with integrated afterburner, KBA web catcher, and KWS 3 roll chill unit.
Printing Unit : The press features 5 KBA C 215 printing units with direct drive technology and Minigap Technology for reduced waste. Units 1 and 2 offer fully automatic plate changing with flying plate change capability, while units 3-5 feature semi-automatic plate changing. Each unit includes Oxy-Dry Kombi blanket wash systems and automatic ink supply. The press is equipped with a 16-page pinless folder capable of A/3, A/4, double parallel, and DELTA production, along with an 8-page stacked folder for 2 x 8 page A/4 output.
Ink System : The COMPACTA C 215 features automatic ink supply systems across all five printing units, complemented by Technitrans Delta d 160W refrigeration/recirculation for dampening solution temperature control. The press includes Grafikontrol Densiweb for automatic closed-loop color control and two dedicated KBA color desks for precise ink management.
Plate Cylinder : The press offers advanced plate handling with fully automatic plate changing on units 1 and 2 (including flying plate change capability) and semi-automatic plate changing on units 3-5. The system includes a Berth AKA 200M plate bender, AKA 200S blanket bender, and dedicated plate punch for efficient plate preparation.
| Model | KBA-COMPACTA C 215 |
|---|---|
| Manufacturer | KBA |
| Year | 2002 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Oslo, Norway |
