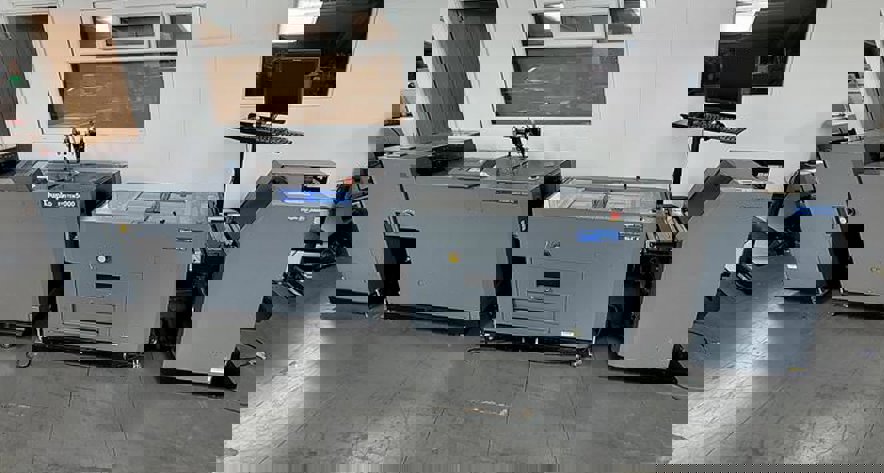

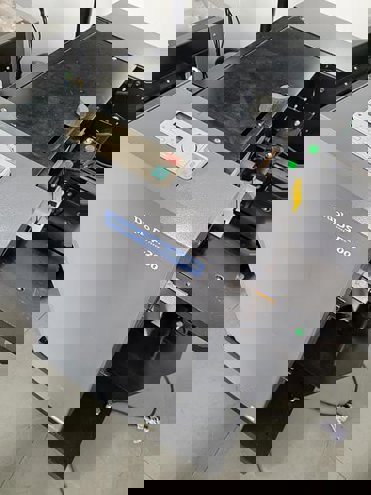

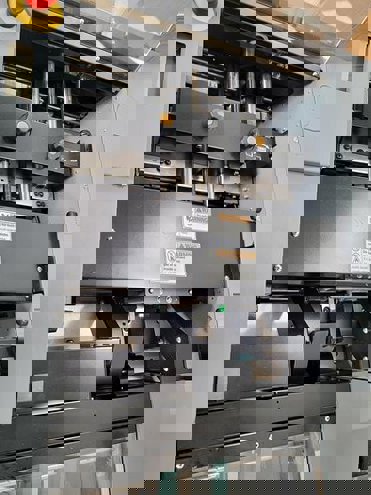

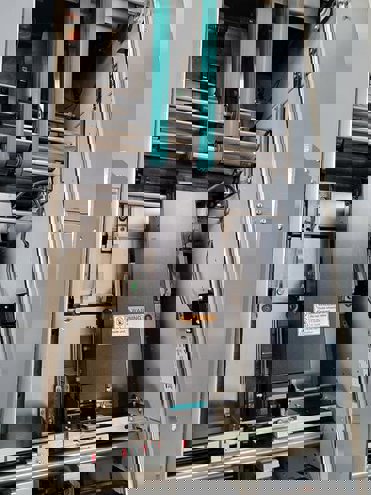

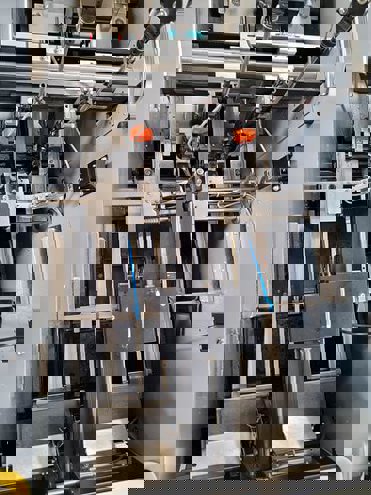

Duplo - 5000

Collator and booklet production Duplo 5000
Collator and booklet production Duplo 5000
Collator and booklet production Duplo 5000
Collator and booklet production Duplo 5000
Collator and booklet production Duplo 5000

Machine Description

The Duplo 5000 Sheet Feed + Bookletmaker system F/S/T dbm the most productive and technologically-advanced collating and booklet making solution in the industry . . . the System 5000! Redefining the word automatic, Duplo presents the first and only truly automatic finishing machine that delivers cutting edge technology and unprecedented speeds of up to 5,000 booklets and 10,000 collated sets per hour. Produces a range of applications including A4/A5 booklets, A3-A6 booklets, CD books, report manuals, product brochures, catalogs, academic journals and loop stitch brochures..
The heavy-duty System 5000 demonstrates superb versatility with its ability to feed up to 12-point cover and a variety of sheet sizes..
.
The Duplo SCC Unit provides the slit/cut/crease module to produce incredibly finished booklet quality. The SCC unit can handle sheets that need trimming to size, this avoids guillotining, you can also score before folding to avoid cracking. .
.
All of these small features put together just amount to perfection with regards to your booklets..
.
Add this unit onto your Duplo System to get your high quality booklets today!.
.
A Duplo system is quite simply the intelligent choice for your print business..
.
Paper Size: Letter, legal, ledger, A#, A4, B4, Custom sizes between 8.5" x 11" and 11" x 17".
.
Paper Weight: 14-42 lbs.
.
Speed: Up to 2,000 sets per hour.
.
Error Detection: Bin Empty.
.
Double Feed.
.
Mis-feed,.
.
Cover Open.
.
Paper Jam.
.
Downstream finisher error.
.
Dimensions (LxWxH): 44" x 30" x 40".
.
Weight (lbs): 300.
.
1 x Duplo System 5000 trimmer .
.
1 x Duplo System 5000 Dynamic Bookletmaker.
.
Combines litho and digital work.
.
Four finishing styles.
.
High performance paper handling.
.
Automatic set up of bookletmaker.
.
Creasing of selected pages to avoid cracking.
.
Camera system to compensate for image drift.
.
Clear PC-based set up interface.
.
Paper Size:.
.
Length: 170 to 500 mm - Width: 120 to 356 mm.
.
Paper Type:.
.
Fine Quality Paper: 80.0 to 300.0 gsm.
.
Art/Coated Paper: 84.9 to 300.0 gsm.
.
Fine Quality Paper: 60.0 to 127.9 gsm.
.
Art/Coated Paper: 84.9 to 157.0 gsm.
.
Slitting Range: (Both edges are slit).
.
Front edge: 4 to 25 mm.
.
Rear edge: 4 to 25 mm.
.
Cutting Range: .
.
Lead edge: 4 to 25 mm.
.
Tail edge: 4 to 25 mm.
.
Maximum Process Speed:.
.
Slitter: 60 sheets/min.
.
Cutter: 25 sheets/min.
.
Creaser: 60 sheets/min.
.
A3: 150 sheets/min.
.
A4: 200 sheets/min.
.
Power Supply: 120V - 240V, 50Hz/60Hz.
.
Power Consumption -120W, 1.4 - 0.6A

ModelDuplo-5000
ManufacturerDuplo
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationLancaster University, Bailrigg, Lancaster, United Kingdom

About Duplo - 5000

The Duplo 5000 is a high-performance, fully automatic saddle-stitching machine designed for high-volume printing and finishing applications. This machine is ideal for commercial printers, in-plant printers, and binderies that require efficient and precise booklet production. The Duplo 5000 offers advanced features, high-speed production, and exceptional quality, making it an excellent choice for a wide range of applications, including catalogues, brochures, and magazines.

Key Technical Aspects:

Dimensions and Specifications : The Duplo 5000 measures 144 inches (3658 mm) in length, 48 inches (1219 mm) in width, and 60 inches (1524 mm) in height, with a weight of approximately 3,500 pounds (1588 kg). The machine has a maximum booklet size capacity of 12.5 inches (318 mm) x 18 inches (457 mm) and a minimum booklet size capacity of 4 inches (102 mm) x 6 inches (152 mm).

Paper Handling : The Duplo 5000 features a 36-station collating tower with a maximum sheet capacity of 10,000 sheets. The machine is equipped with two feeders, each with a capacity of 2,000 sheets, and a cover feeder with a capacity of 1,000 sheets. The Duplo 5000 also features an automatic sheet detection system and a precision sheet alignment system.

Stitching Unit : The Duplo 5000 has a high-speed stitching unit that can produce up to 9,000 booklets per hour. The machine features a patented wire clinching system that ensures precise and consistent stitching. The stitching unit is also equipped with an automatic wire feed system and a wire saving device.

Ink System : Not applicable, as the Duplo 5000 is a finishing machine and does not have an ink system.

Plate Cylinder : Not applicable, as the Duplo 5000 is a finishing machine and does not have a plate cylinder.
