Horizon - VAC 100a
Machine Description
We are pleased to offer:.

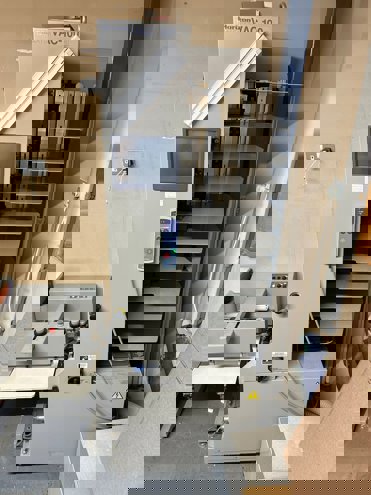

Used Horizon VAC 100a Collator with ST 20 Delivery Year 2009.
Specification.
The Horizon VAC-100A Collator with ST-20 Delivery is a highly reliable and fully automatic collating system designed for professional print finishing environments..
Renowned for its accuracy and flexibility, the VAC-100A uses a suction rotor feeding system that ensures smooth, mark-free handling of a wide range of paper stocks..
With 10 bins per tower and the ability to expand up to 6 towers (60 stations), this model provides excellent scalability for medium to high-volume production..
The attached ST-20 stacker unit efficiently receives collated sets and automatically offsets them laterally for easy separation. The stacker can unload completed sets directly onto a wheeled pallet, ensuring continuous operation with minimal manual intervention..
This combination delivers outstanding productivity, consistency, and versatility—ideal for commercial printing, booklet production, and finishing operations..
.
VAC-100 Series.
Number of Bin: 10 bins.
Sheet Feeding System: Suction Rotor Feeding System.
Expandability: Up to 6 towers (60 stations)..
Sheet Size: Max. 350(W) x 500(L) mm (13.77" x 19.68") / Min. 148(W) x 148(L) mm (5.83" x 5.83").
Sheet Weight Range: 52 gsm to 208 gsm.
Bin Pile Height: Max. 55 mm (2.2").
Sheet Overlap: 4 Steps.
Collating Interval: Automatic Setting and Variable Setting.
Production Speed: Max. 9,900 sets/hr. (A5LEF, Straight Receiving) / Max. 8,900 sets/hr. (A4LEF, Straight Receiving).
Program Collation: Double Cycle / Dual Cover Feed / Preset Tabbing.
.
Stacker Unit (ST-20 Delivery).
Type: Automatic offset stacker receiving tray.
Function: Laterally shifts each collated set to separate completed stacks.
Unloading System: Stack of collated sets can be unloaded directly onto a wheeled pallet.
Operation: Collating restarts automatically when the stacker returns to its home position.
Sheet Overlap: 4-step adjustment.
Collating Interval: Automatic and variable setting.
Production Speed: Up to 9,900 sets/hour (A5 LEF, straight receiving) / Up to 8,900 sets/hour (A4 LEF, straight receiving).
Program Modes: Double cycle, dual cover feed, preset tabbing .
Good working order.
Available immediately...
The Horizon VAC 100a Collator with ST 20 Delivery is a high-performance, fully automatic collating system designed for professional print finishing environments. Part of the renowned VAC-100 series, this machine excels in accuracy, flexibility, and productivity, making it ideal for medium to high-volume production. Featuring a suction rotor feeding system, it ensures smooth, mark-free handling of diverse paper stocks while supporting expansion up to 60 stations (6 towers). The integrated ST-20 stacker unit automatically offsets collated sets for easy separation and unloads them onto a wheeled pallet, minimizing manual intervention. With a maximum speed of 9,900 sets/hour and advanced program modes like double cycle and dual cover feed, this 2009 model is well-suited for commercial printing, booklet production, and finishing operations.
Key Technical Aspects:
Dimensions and Specifications : The VAC 100a supports a maximum sheet size of 350(W) x 500(L) mm (13.77" x 19.68") and a minimum of 148(W) x 148(L) mm (5.83" x 5.83"). It accommodates paper weights from 52 gsm to 208 gsm, with a maximum bin pile height of 55 mm (2.2"). Production speeds reach up to 9,900 sets/hour (A5 LEF) or 8,900 sets/hour (A4 LEF) in straight receiving mode. The system includes 10 bins per tower, expandable to 6 towers (60 stations), and features automatic or variable collating intervals with 4-step sheet overlap adjustment.
Paper Handling : The machine employs a suction rotor feeding system for precise, mark-free paper handling across a wide range of stocks. Each bin supports a maximum pile height of 55 mm (2.2"), with 4-step overlap adjustment for optimal collation. The ST-20 stacker unit automatically offsets collated sets laterally and unloads them onto a wheeled pallet, enabling continuous operation with minimal manual intervention.
| Model | Horizon-VAC 100a |
|---|---|
| Manufacturer | Horizon |
| Year | 2009 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Ringwood, UK |
