Machine Description
We are pleased to offer:.

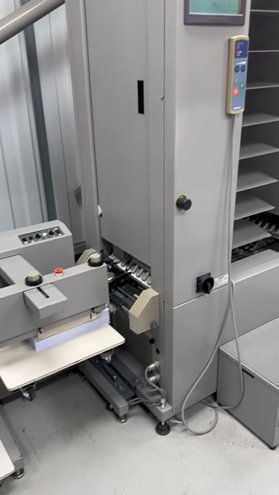

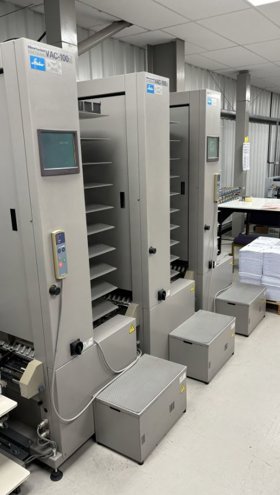

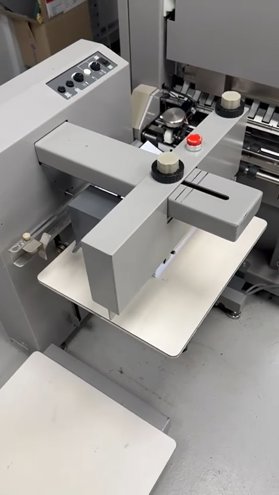

Used 3 X Horizon VAC-100-A-M-C TOWERS With ST-20 Stacker Year 2001.
Specification.
-Air-Suction Collator VAC-100.
Included: VAC-100A, VAC-100M, VAC-100C.
Module Configuration: VAC-100a / VAC-100m / VAC-100c.

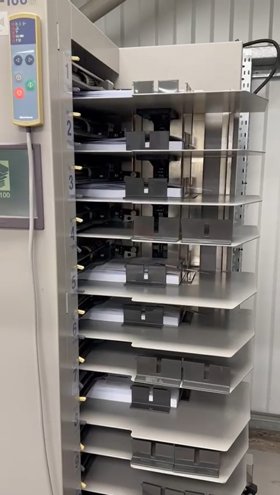

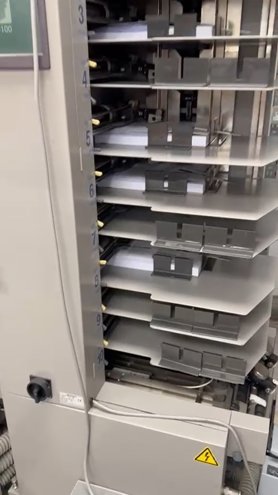

Number of Bin: 10 bins.
Sheet Feeding System: Suction Rotor Feeding System.
Sheet Size Max. 350(W) x 500(L) mm (13.77" x 19.68") Min. 148(W) x 148(L) mm (5.83" x 5.83").
Sheet Weight Range: 52 gsm to 208 gsm.
Bin Pile Height: Max. 55 mm (2.2").
Sheet Overlap: 4 Steps.
Collating Interval: Automatic Setting and Variable Setting.
Production Speed: Max. 9900 sets/hr..
Only when connected with the StitchLiner5500..
Machine Weight: VAC-100a : 290 kg / VAC-100m: 290 kg / VAC-100c : 290 kg.
Voltage / Frequency: Single Phase 200 V, 50 / 60 Hz Single Phase 220 / 230 / 240 V, 50 Hz.
.

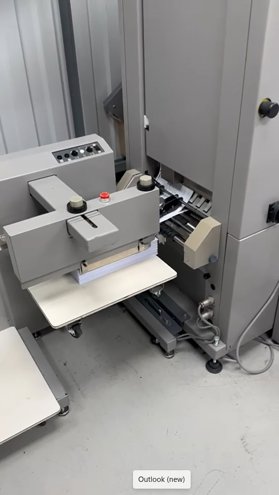

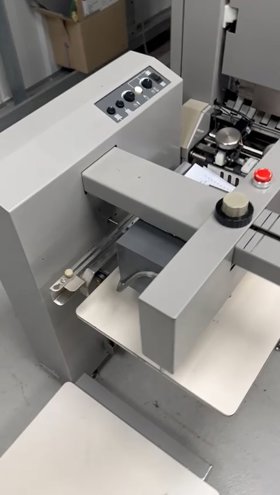

-ST-20 Stacker Delivery.
Flexible stacking: It can stack sheets flat or offset, adapting to different print jobs..
It can stack papers up to 320 mm high, which means fewer stops to empty it..
Neat and tidy: The ST-20 stacks papers precisely, keeping everything in order..
Max. sheet size: 450 x 310 mm.
Min. sheet size: 185 x 128 mm.
Max. Pile Height: 320 mm.
Dimensions: 652 x 550 mm.
Weight: 62 kg.
Good working order.
Available immediately.
.
.
Read More:.
https://www.jerrycurtin.com/machine/en-134447/3-x-horizon-vac-100-a-m-c-towers-with-st-20-stacker...
This listing features three used Horizon VAC-100a, VAC-100m, and VAC-100c air-suction collating towers, paired with an ST-20 stacker, designed for efficient collating and inserting operations. Ideal for print finishing, mailing, and document production environments, these units excel in high-speed collation of sheets into organized sets. The system offers precise sheet handling, flexible stacking options, and robust performance, making it suitable for commercial printers, binderies, and in-plant print shops requiring reliable, high-volume collation with minimal downtime.
Key Technical Aspects:
Dimensions and Specifications : The Horizon VAC-100 series consists of three modular towers (VAC-100a, VAC-100m, VAC-100c), each weighing 290 kg with dimensions optimized for integration into production lines. The system operates on single-phase 200V (50/60 Hz) or 220/230/240V (50 Hz) power. The included ST-20 stacker measures 652 x 550 mm and weighs 62 kg, supporting a maximum pile height of 320 mm. All units were manufactured in 2001 and are available immediately in good working order.
Paper Handling : The VAC-100 towers feature a suction rotor feeding system with 10 bins per module, accommodating sheet sizes from 148 x 148 mm (5.83" x 5.83") to 350 x 500 mm (13.77" x 19.68"). The system handles paper weights ranging from 52 gsm to 208 gsm, with a maximum bin pile height of 55 mm (2.2"). Collating speed reaches up to 9,900 sets per hour when integrated with the StitchLiner5500. The ST-20 stacker supports sheet sizes from 185 x 128 mm to 450 x 310 mm, offering flexible flat or offset stacking for varied print jobs.
| Model | Horizon-VAC 100a |
|---|---|
| Manufacturer | Horizon |
| Year | 2001 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Ringwood, UK |
