Machine Description
We are pleased to offer:.

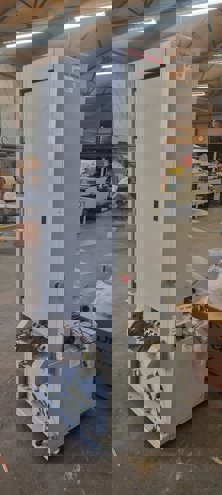

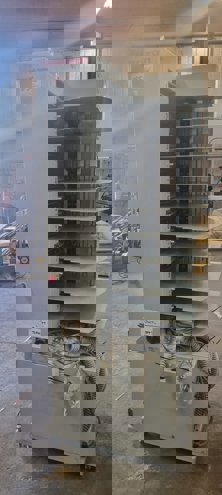

Used Horizon 1000m Tower Collating Module Year 2016.
Specification.
The Horizon 1000M Tower is a modular collating (gathering) tower designed to expand the capacity of a Horizon VAC-1000 collating system. It is intended as an expansion module that integrates seamlessly with other Horizon towers to build a multi-tower collating line for high-volume sheet gathering prior to finishing..
.
Unlike the primary VAC-1000a tower, the 1000M tower does not include its own control display and is configured solely to add additional feed stations to an existing system. Its design allows print finishing operations to adapt the system to varying production volumes by increasing the total number of sheet bins available..
.
Horizon’s rotary vacuum suction feeding system ensures reliable paper feeding and stacking across a wide range of paper weights and formats, supporting continuous production flow when combined with other towers in a VAC-1000 line..
VAC-1000.
Model: VAC-1000m.
Serial Number: 024301.
Number of Bins: 10 bins each bin.
Sheet Feeding System: Suction Rotor System.
Sheet Size (Width × Length): Max. 350 × 500 mm / Min. 148* × 148 mm.
*Machine can collate the sheet of 120 mm or 4.73” width when option guide is attached..
Sheet Weight Range: Art / Coated Paper: 73.3 to 207 gsm, Normal Paper: 52.3 to 207 gsm, 8-page fold signature: up to 104.7 gsm.
Bin Stack Height: Max. Stack Height: 55 mm / Max. Stack Weight: 11 kg or 24.3 lb each bin.
Sheet Overlap Front delivery: 4 Steps Maximum, Large, Middle and Small / Rear delivery: 4 Steps Maximum, Large, Middle and Small.
Production Speed 10 bins: Max. 9,900 sets per hour (A5LEF, Straight Receiving) Max. 8,900 sets per hour (A4LEF, Straight Receiving) *Production speed is limited by the type of finisher or sheet weight..
Receiving Tray: Swing Type SW-20 /Stack Type ST-60, ST-40 / Jogger Type PJ-77, PJ-77R.
Voltage / Frequency: Single Phase 208 / 220 V, 50 or 60 Hz, Single Phase 230 to 240 V, 50 or 60 Hz.
Machine Dimensions: 930 (W) × 652 (D)* × 1,962 (H) mm.
*1 Blower box excluded: 693 mm or 27.3” (D) when including the projection.
Good working order.
Available immediately...
The Horizon Collator VAC-1000m is a high-performance modular collating tower designed for expanding the capacity of Horizon VAC-1000 collating systems. Part of the "Collating and inserting lines" category, this 2016 model serves as an expansion module, seamlessly integrating with existing Horizon towers to create a multi-tower collating line for high-volume sheet gathering prior to finishing. The VAC-1000m enhances production flexibility by adding 10 additional feed stations, enabling print finishing operations to adapt to varying production demands. Featuring Horizon’s reliable rotary vacuum suction feeding system, it ensures consistent paper handling across diverse paper weights and formats, supporting continuous workflow efficiency in commercial printing, direct mail, and publishing applications.
Key Technical Aspects:
Dimensions and Specifications : The Horizon VAC-1000m measures 930 mm (W) × 652 mm (D) × 1,962 mm (H), with a depth of 693 mm excluding the blower box. Operating on single-phase power at 208/220V or 230–240V, 50/60 Hz, it delivers a maximum production speed of 9,900 sets per hour (A5LEF, straight receiving) and 8,900 sets per hour (A4LEF, straight receiving), with performance dependent on finisher type and sheet weight. The machine is designed for immediate availability and is in good working order.
Paper Handling : The VAC-1000m supports sheet sizes ranging from 148 × 148 mm (minimum) to 350 × 500 mm (maximum), with an optional guide enabling handling of sheets as narrow as 120 mm (4.73"). It accommodates a wide range of paper weights: 73.3–207 gsm for art/coated paper, 52.3–207 gsm for normal paper, and up to 104.7 gsm for 8-page fold signatures. Each of its 10 bins supports a maximum stack height of 55 mm and a stack weight of 11 kg (24.3 lb). The suction rotor feeding system ensures reliable sheet overlap with adjustable settings (4-step maximum for both front and rear delivery), while compatible receiving trays include swing (SW-20), stack (ST-60/ST-40), and jogger (PJ-77/PJ-77R) types.
| Model | Horizon-Collator VAC-1000m |
|---|---|
| Manufacturer | Horizon |
| Year | 2016 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | 46 Christchurch Rd, Ringwood BH24 1DW, UK |
