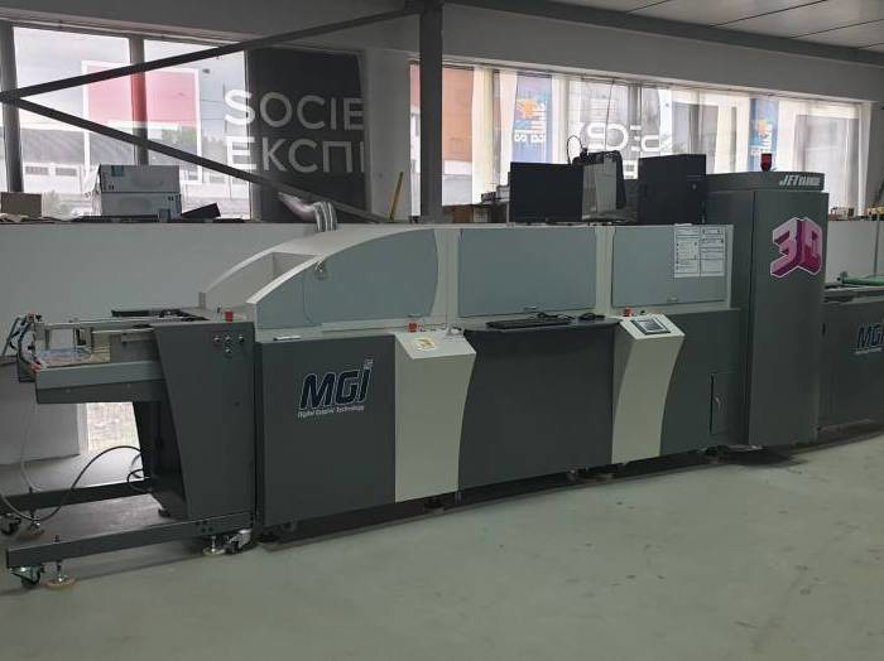

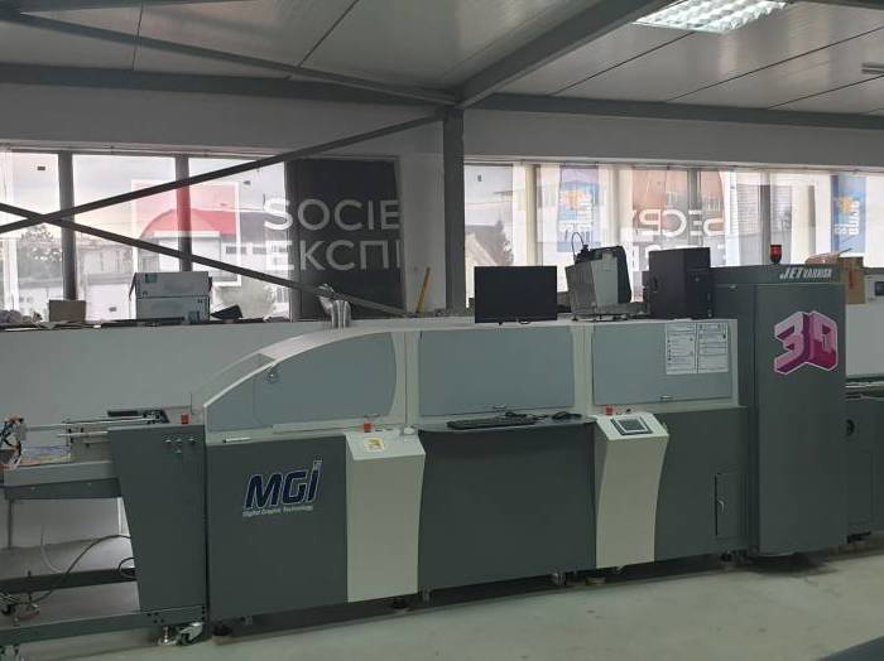

MGI - JETvarnish 3D

Key Technical Aspects:

Dimensions and Specifications : The MGI JETvarnish 3D measures 1450 mm (57.1 in) in length, 750 mm (29.5 in) in width, and 1200 mm (47.2 in) in height, with a weight of approximately 450 kg (992 lbs). The machine has a maximum sheet size capacity of 360 mm x 600 mm (14.2 in x 23.6 in) and a minimum sheet size capacity of 210 mm x 297 mm (8.3 in x 11.7 in).

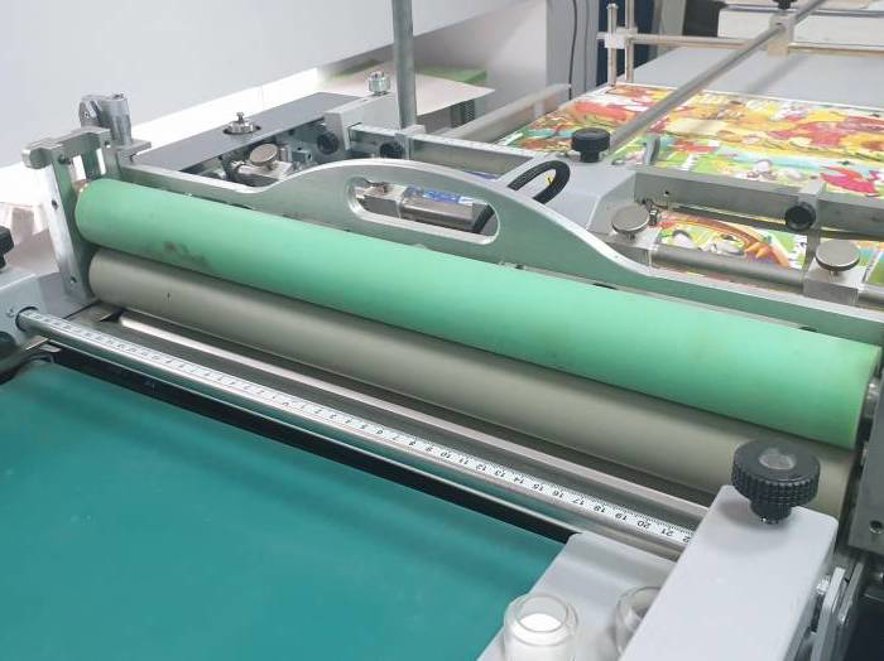

Paper Handling : The JETvarnish 3D features a single-sheet feeding system with a capacity of up to 500 sheets, and an output tray that can hold up to 200 sheets. The machine is capable of handling a wide range of paper weights, from 150 gsm to 600 gsm.

Printing Unit : The JETvarnish 3D utilizes MGI's proprietary inkjet technology, which offers a print resolution of up to 1200 dpi and a print speed of up to 3000 sheets per hour. The machine is equipped with four grayscale printheads, each with 256 nozzles, and uses a combination of UV and LED curing systems to achieve high-gloss and textured effects.

Ink System : The JETvarnish 3D uses a high-viscosity, UV-curable varnish ink, available in a range of colors and finishes. The machine features a four-color ink system, with individual ink tanks that can be replaced independently. The ink system is designed for high-volume production, with a capacity of up to 10 liters (2.64 gal) per color.

Plate Cylinder : The JETvarnish 3D does not require traditional printing plates, as it uses a digital printing process. Instead, the machine features a vacuum-driven drum that holds the sheet in place during the varnishing and foiling process, ensuring precise registration and accurate results.
