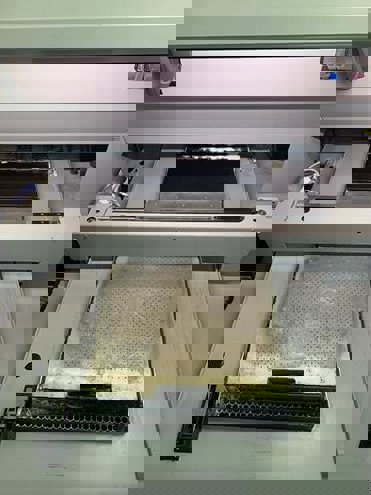

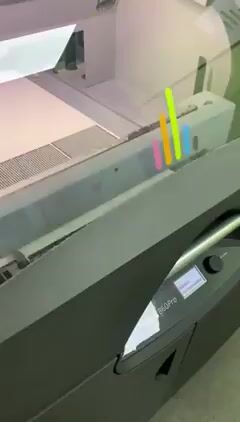

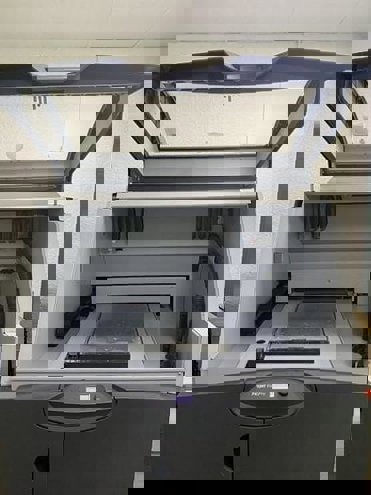

3D Systems - ProJet 860Pro Vollfarb

Key Technical Aspects:

Dimensions and Specifications : The ProJet 860Pro features a generous installation space of 508 x 381 x 229 mm (x/y/z) and an overall machine footprint of 1190 x 1160 x 1620 mm (width x height x depth). With an approximate empty weight of 370 kg, this robust system is built for industrial environments. The printer operates with a layer thickness of 0.1 mm, ensuring high-resolution output. Network connectivity is provided via LAN (Ethernet) for seamless integration into production workflows.

Printing Unit : The ProJet 860Pro is equipped with five HP11 printheads, enabling efficient and precise deposition of binder material for full-color 3D printing. The system supports a layer thickness of 0.1 mm, delivering fine detail and smooth surface finishes for complex models.

Ink System : This machine utilizes VisiJet PXL Core as the primary building material, combined with LBL 3D printing powder and VisiJet Binder (LBL 3D Binder) to achieve durable, full-color parts. The binder system ensures strong adhesion between layers while maintaining color accuracy and consistency throughout the printing process.
