Rebord - Astra

Case makers Rebord Astra
Case makers Rebord Astra
Case makers Rebord Astra
Case makers Rebord Astra
Case makers Rebord Astra
Case makers Rebord Astra
Case makers Rebord Astra
Case makers Rebord Astra

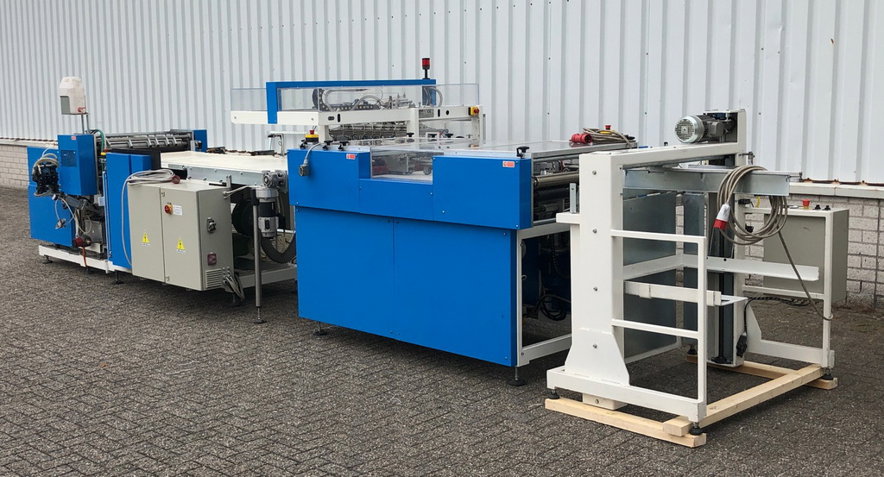

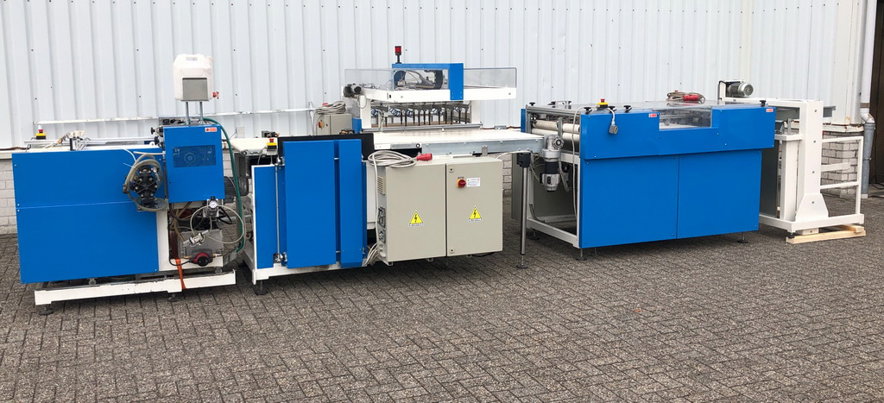

Machine Description

Minimum case size - 150 x 200 mm.
Max. case size - 700 x 1000 mm / (700 x 1200 mm when board is placed manually).
Max sheet size - 750 x 1050 mm / (750 x 1250 with extended feed board).
Speed - up to 20 cases per minute.

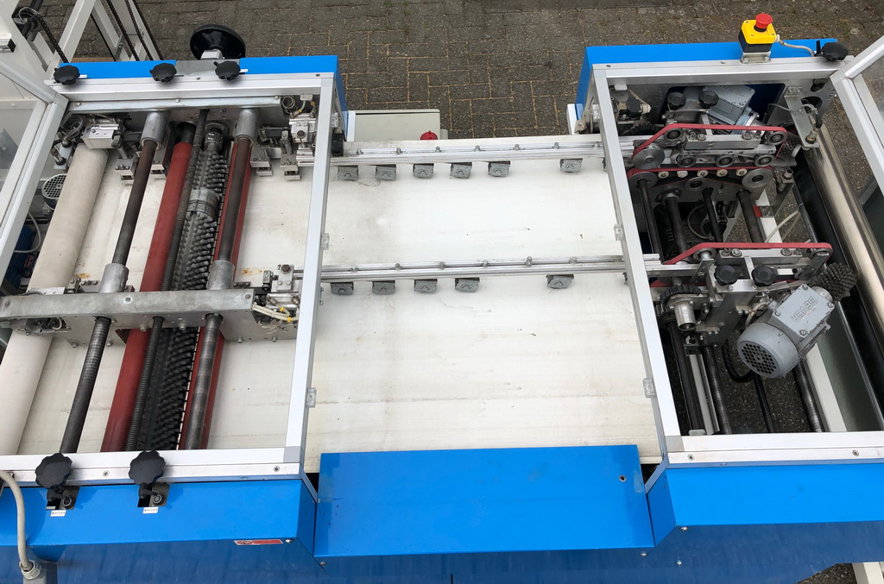

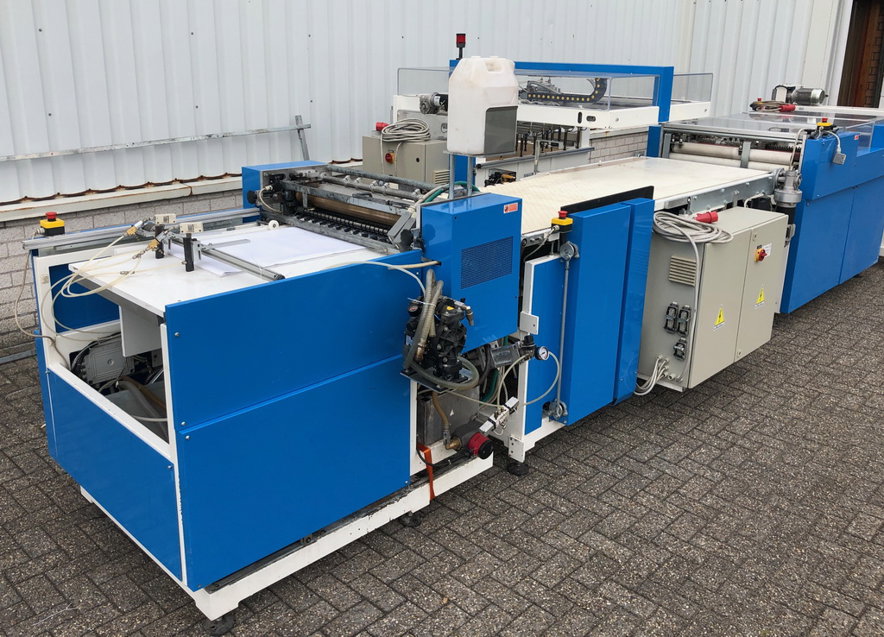

Configuration - 1 x Rebord sheet feeding station (automatic feeding of paper, cloth, buckrum and other materials).

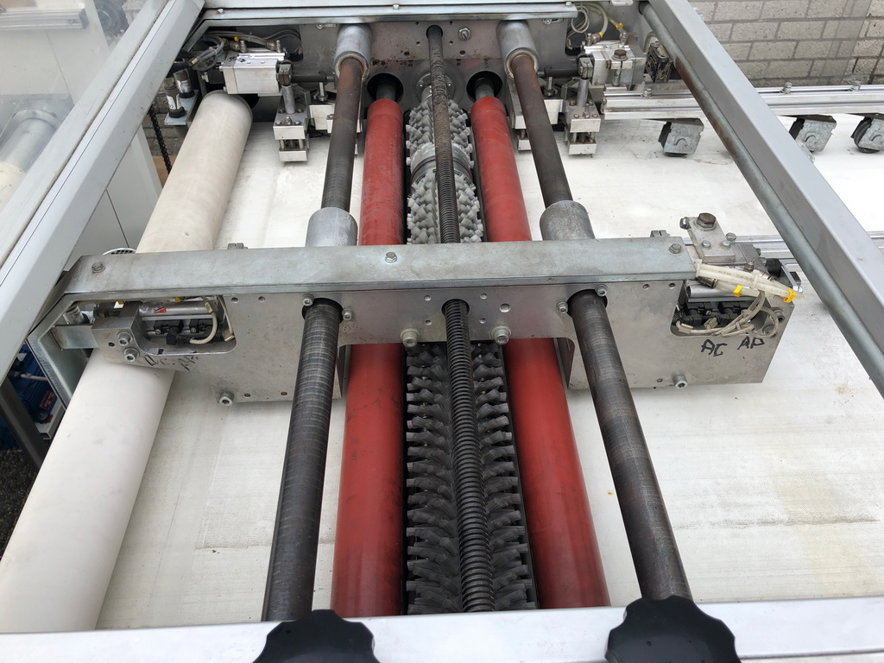

1 x Rebord top gluing station 75 cm ( Automatic gluer for paper, cloth, buckrum and other materials ).
1 x Vacuüm belt.
1 x Rebord Spotter ( Automatic feeder for single, multiple or routed boards. Suitable also for lining and mounting of materials ).

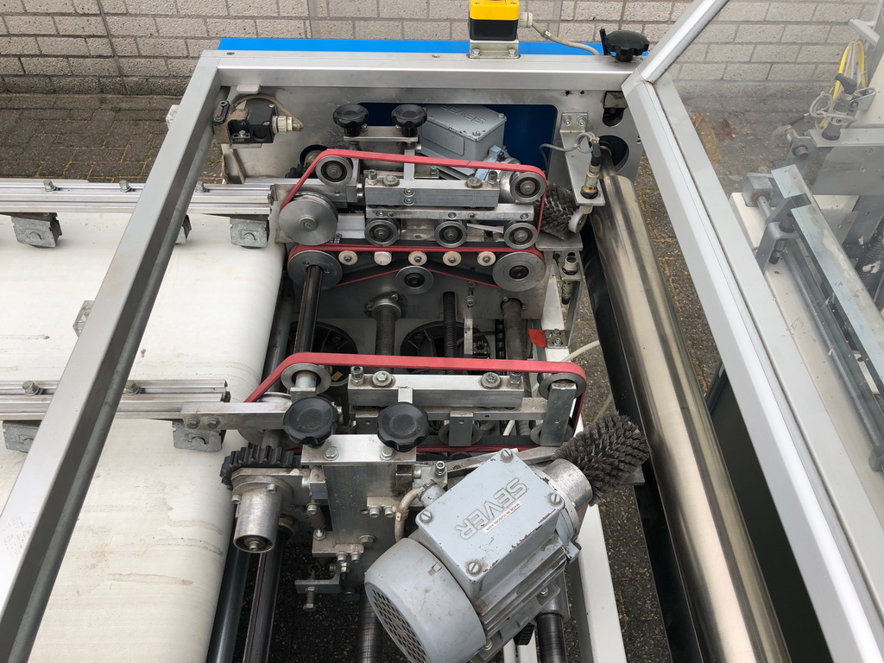

1 x Rebord turning/in machine ( 4-side turning-in + pressing in one single pass with tugging in of the fold corners).

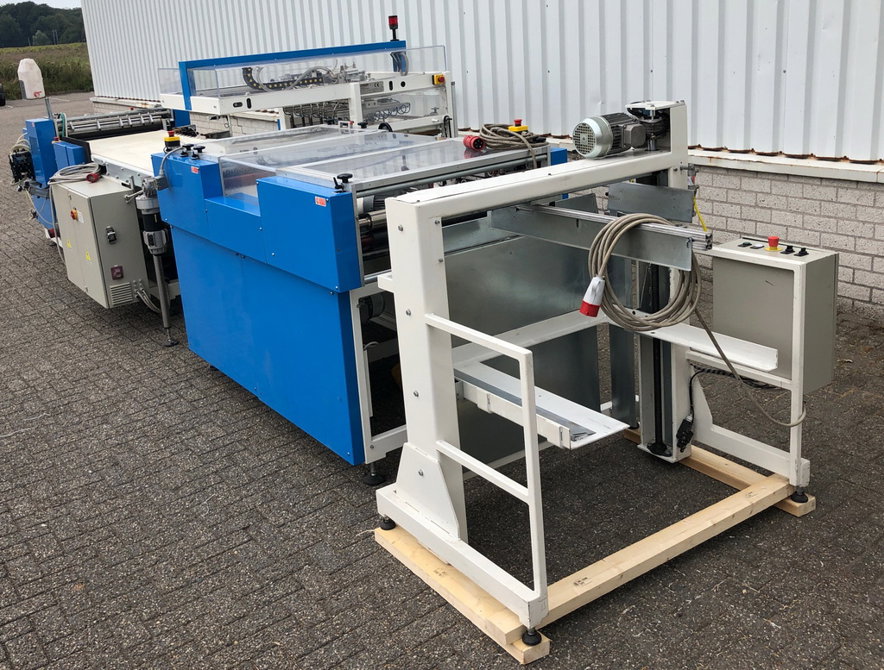

1 x Pile delivery onto a pallet.

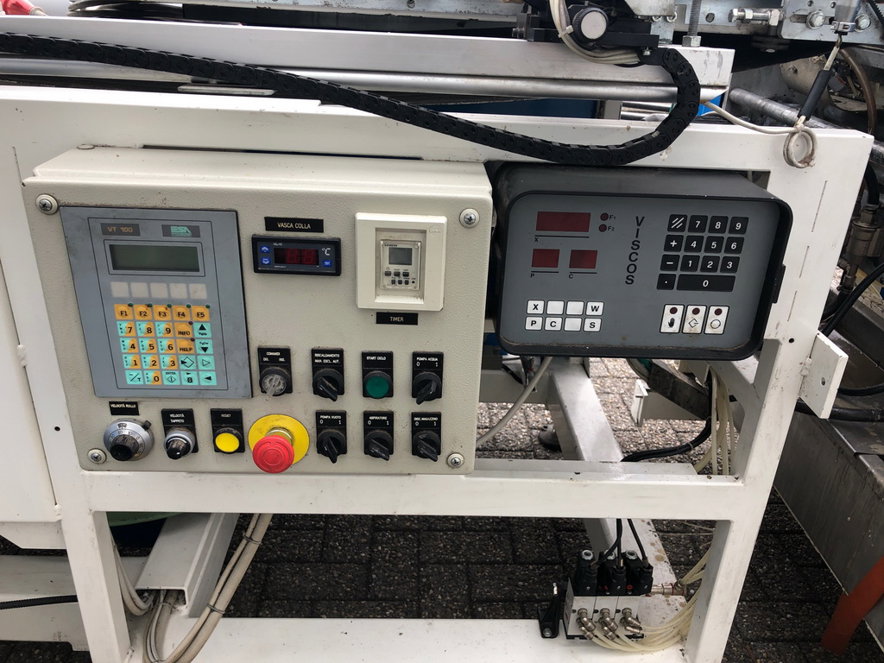

Glue - large hot animal glue tank with real viscosity measurement device, glue roller is being heated by hot water recirculation,.
with small upgrade cold PVA glue can also be used for case lining in a convenient matter

ModelRebord-Astra
ManufacturerRebord
Year1998
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Rebord - Astra

The Rebord Astra is a high-performance, sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is ideal for printing high-quality materials such as brochures, catalogs, and packaging materials. Key features of the Rebord Astra include its advanced paper handling system, high-speed printing capabilities, and precise registration control. The benefits of using the Rebord Astra include increased productivity, reduced waste, and exceptional print quality. Typical applications of the Rebord Astra include commercial printing, packaging, and label printing.

Key Technical Aspects:

Dimensions and Specifications : The Rebord Astra has a length of 7,500 mm, a width of 2,500 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour. The machine has a maximum sheet size of 750 x 1,050 mm and a minimum sheet size of 350 x 500 mm.

Paper Handling : The Rebord Astra features a advanced paper handling system with a maximum pile height of 1,500 mm and a sheet capacity of 5,000 sheets. The machine is equipped with automatic sheet alignment, sheet separation, and sheet ejection systems. It also features a dual-circuit vacuum system for precise sheet transport and registration.

Printing Unit : The Rebord Astra's printing unit features a maximum printing speed of 15,000 sheets per hour and a maximum printing resolution of 250 lpi. The machine uses a conventional offset printing process with a maximum printing area of 720 x 1,020 mm. The printing unit is equipped with a precision registration system and an automatic ink fountain system.

Ink System : The Rebord Astra uses a conventional offset ink system with a maximum ink capacity of 20 kg. The machine features an automatic ink fountain system with a precision ink metering system and an ink temperature control system.

Plate Cylinder : The Rebord Astra's plate cylinder has a diameter of 1,200 mm and a circumference of 3,770 mm. The plate cylinder is equipped with a precision plate clamping system and an automatic plate changing system. The machine features a maximum plate size of 750 x 1,050 mm and a minimum plate size of 350 x 500 mm.
