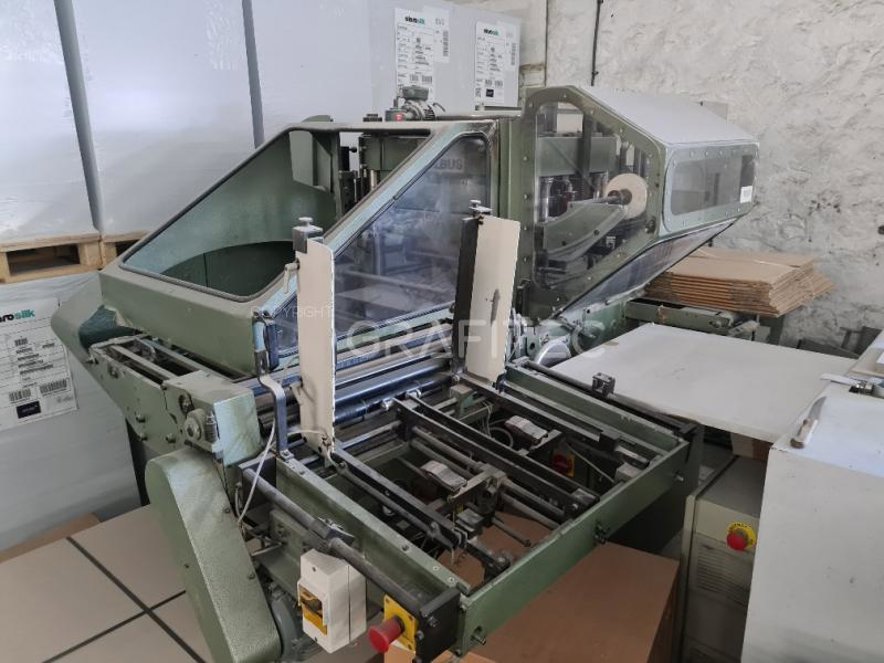

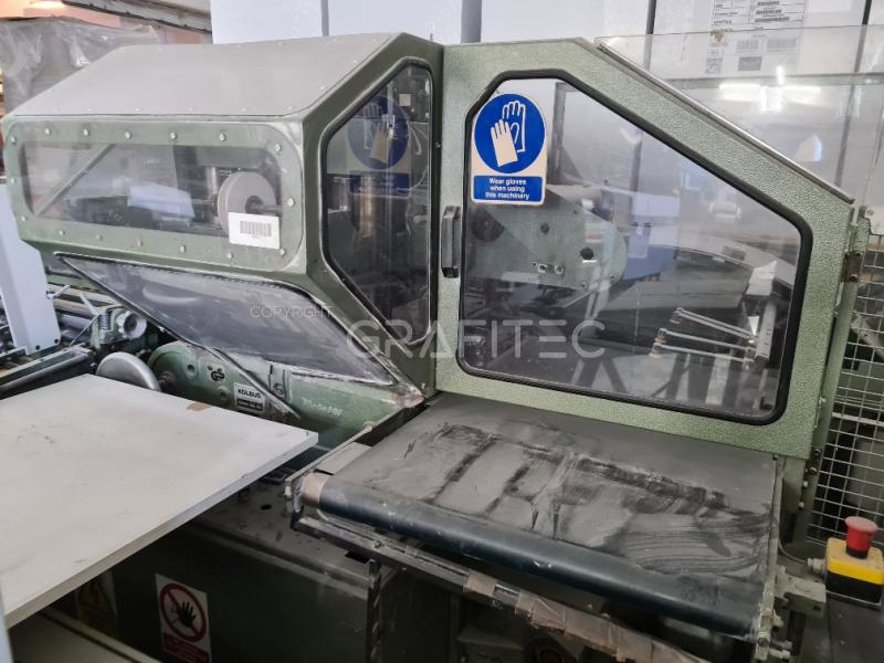

Kolbus - PE Foiler

Key Technical Aspects:

Dimensions and Specifications : The Kolbus PE Foiler measures 4,500 mm in length, 1,800 mm in width, and 2,200 mm in height, with a weight of approximately 4,500 kg. It has a maximum sheet size capacity of 760 x 1,070 mm and a minimum sheet size capacity of 350 x 500 mm.

Paper Handling : The PE Foiler features a high-capacity feeder with a maximum pile height of 1,200 mm, capable of handling sheets up to 1,000 gsm. The machine is equipped with a precision registration system, ensuring accurate sheet alignment and precise foil stamping and embossing.

Foil Stamping Unit : The foil stamping unit is equipped with a heated foil cylinder, allowing for precise temperature control and optimal foil transfer. The machine can achieve a maximum foil stamping speed of 8,000 sheets per hour, with a foil repeat range of 350-760 mm.

Embossing Unit : The embossing unit features a high-pressure embossing cylinder, capable of producing intricate embossing effects with precision and accuracy. The machine can achieve a maximum embossing speed of 6,000 sheets per hour, with an embossing repeat range of 350-760 mm.

Foil and Die Systems : The PE Foiler uses a hot foil stamping system, with a maximum foil width of 760 mm and a minimum foil width of 350 mm. The machine is compatible with a range of die systems, including flat and rotary dies, allowing for flexibility in die design and production.
