Machine Description

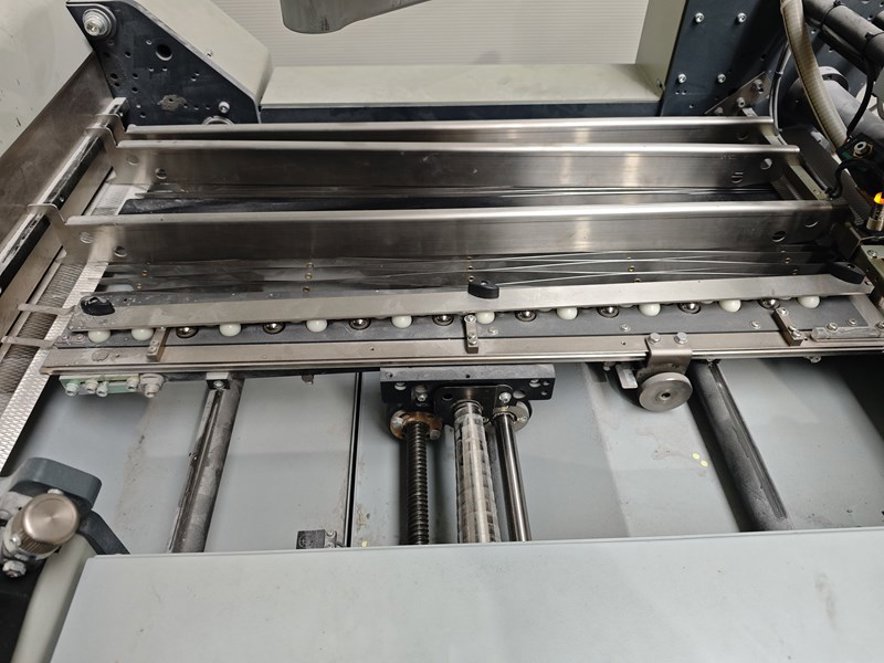

Horizon AFC-566F: Fully Automatic Combination Folding Machine, used.
.
Rollers condition:.
Parallel 0%.
Cross 20%.
.
With New Parallel Rollers. Price: 16.900 EUR.
.
The Horizon AFC-566 F combines high efficiency with easy operation, allowing even inexperienced users to quickly achieve creative folding solutions. With 17 pre-programmed fold types, fully automatic settings, and intuitive Touch&Work technology, you can maximize productivity and handle any challenge..
.
.
Folding Units.
- 1st Folding Unit: 6 folding pockets.
- 2nd Folding Unit: Folding knife plus 2 folding pockets.
.
.
Key Features.
- Versatility: Handles a wide range of fold types, from simple parallel folds to complex cross and specialty folds.
- Fully Automatic Settings: From feeder to roller gap adjustment.
- Touch&Work Technology: For easy and intuitive operation.
- 17 Standard Fold Types: For diverse folding options.
- Job Memory: Stores up to 200 jobs.
- Double Sheet Detection and Sheet Run Monitoring: Ensures high precision.
- Creasing and Perforating Device: For additional finishing options.
- Quick Setup: Ready in seconds for maximum efficiency.
.
Specifications:.
.
- Paper formats: Maximum size: 558 x 850 mm; Minimum size: 128 x 148 mm.
- Paper weights: 40 – 250 g/sqm.
- Speed: Maximum: 240 m/min; 30,000 cycles/h in cross fold.
- Feeder pile height: 740 m.

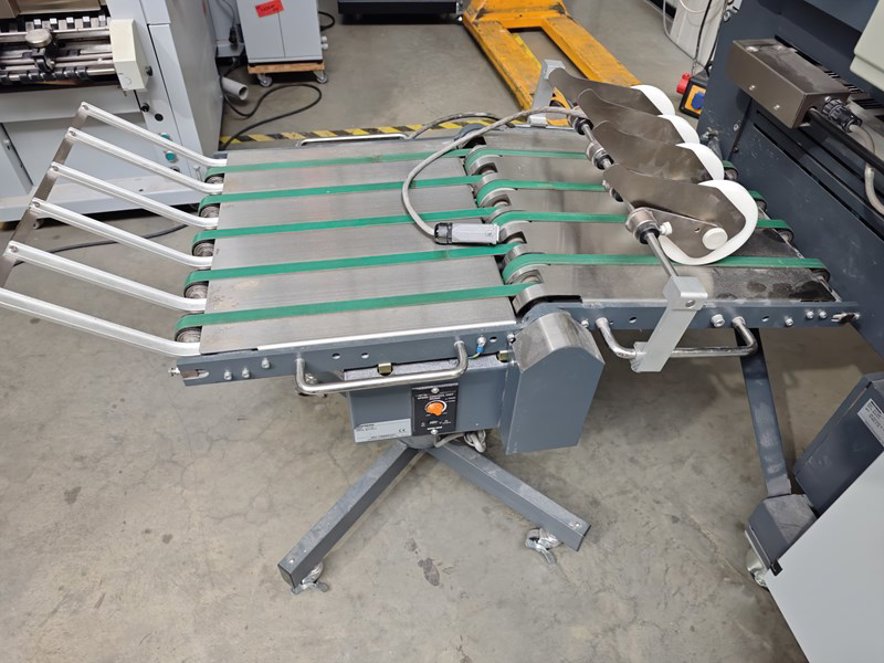

- Machine dimensions: Main body: 3,100 mm x 1,090 mm x 1,680 mm (LxWxH); Delivery: 1,320 mm x 600 mm (LxW), height variable.
- Weight: 1,270 kg.
- Power supply: 400 V, 5.6 A, 3.2 kW...
The Horizon AFC-566F is a fully automatic combination folding machine designed for high-efficiency paper folding operations. Part of the Buckle Folding Machine category, this model excels in versatility, handling a wide range of fold types from simple parallel folds to complex cross and specialty folds. With 17 pre-programmed fold types, fully automatic settings, and intuitive Touch&Work technology, it ensures quick setup and easy operation, making it ideal for both experienced and inexperienced users. Key benefits include high productivity, precision folding, and additional finishing options like creasing and perforating. Typical applications include commercial printing, bookbinding, and document finishing in production environments.
Key Technical Aspects:
Dimensions and Specifications : The Horizon AFC-566F has a main body measuring 3,100 mm (L) x 1,090 mm (W) x 1,680 mm (H) with a variable-height delivery section of 1,320 mm (L) x 600 mm (W). The machine weighs 1,270 kg and operates on a 400 V power supply with 5.6 A current and 3.2 kW power consumption. It achieves a maximum speed of 240 m/min or 30,000 cycles/hour in cross fold mode.
Paper Handling : This machine accommodates paper formats ranging from a minimum size of 128 x 148 mm to a maximum size of 558 x 850 mm. It handles paper weights between 40 – 250 g/sqm with a feeder pile height of 740 mm. The folding units include 6 folding pockets in the first unit and a folding knife plus 2 folding pockets in the second unit. Features like double sheet detection and sheet run monitoring ensure precision handling.
| Model | Horizon-AFC-564/566 |
|---|---|
| Reference Number | 23223 |
| Manufacturer | Horizon |
| Year | 2014 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
Horizon - AFC-564/566
