Machine Description

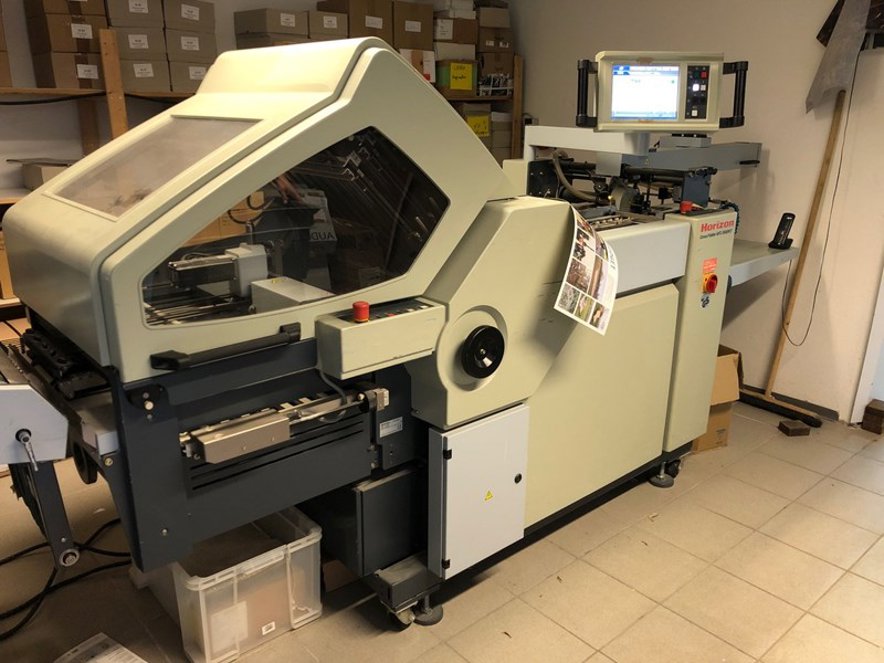

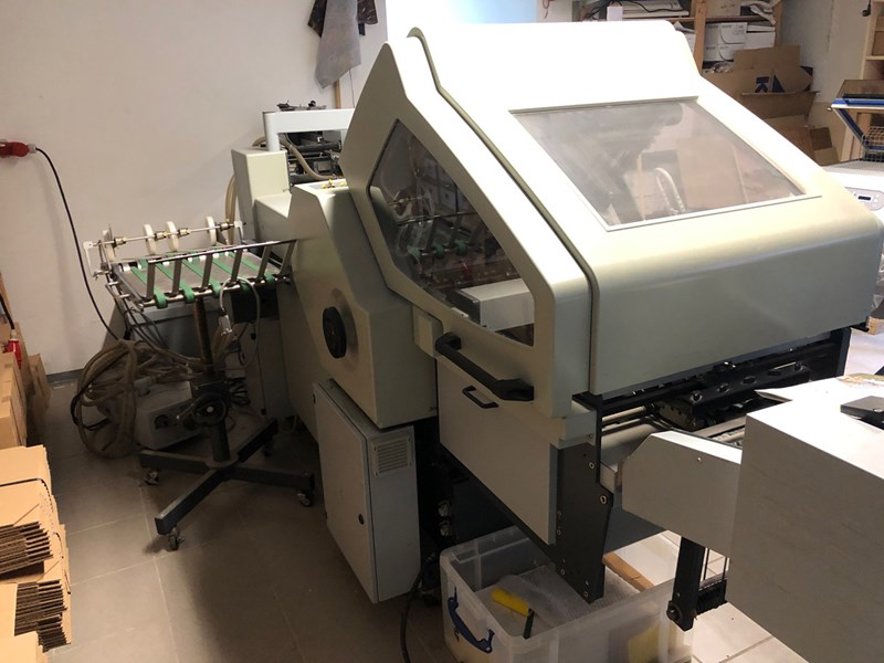

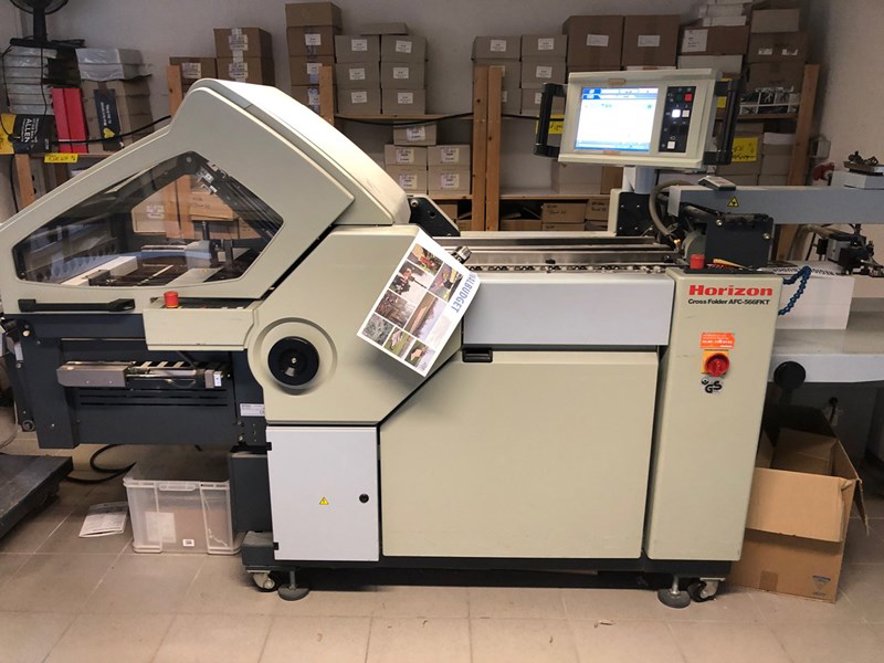

Horizon AFC-566F: Fully Automatic Combination Folding Machine, used.
.
The Horizon AFC-566 F combines high efficiency with easy operation, allowing even inexperienced users to quickly achieve creative folding solutions. With 17 pre-programmed fold types, fully automatic settings, and intuitive Touch&Work technology, you can maximize productivity and handle any challenge..
.
.
Folding Units.

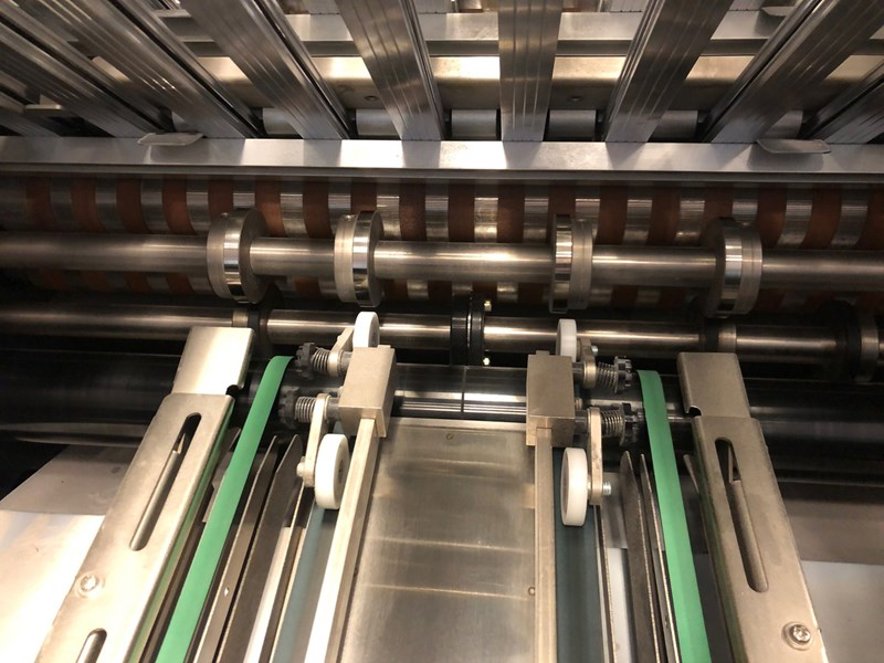

- 1st Folding Unit: 6 folding pockets.
- 2nd Folding Unit: Folding knife plus 2 folding pockets.
.
.
Key Features.
- Versatility: Handles a wide range of fold types, from simple parallel folds to complex cross and specialty folds.
- Fully Automatic Settings: From feeder to roller gap adjustment.
- Touch&Work Technology: For easy and intuitive operation.
- 17 Standard Fold Types: For diverse folding options.
- Job Memory: Stores up to 200 jobs.
- Double Sheet Detection and Sheet Run Monitoring: Ensures high precision.
- Creasing and Perforating Device: For additional finishing options.
- Quick Setup: Ready in seconds for maximum efficiency.
.
Specifications:.
.
- Paper formats: Maximum size: 558 x 850 mm; Minimum size: 128 x 148 mm.
- Paper weights: 40 – 250 g/sqm.
- Speed: Maximum: 240 m/min; 30,000 cycles/h in cross fold.
- Feeder pile height: 740 m.
- Machine dimensions: Main body: 3,100 mm x 1,090 mm x 1,680 mm (LxWxH); Delivery: 1,320 mm x 600 mm (LxW), height variable.
- Weight: 1,270 kg.
- Power supply: 400 V, 5.6 A, 3.2 kW...
The Horizon AFC-564/566 Buckle Folding Machine is a fully automatic, high-efficiency solution designed for versatile and precise folding operations. Ideal for commercial printing, bindery, and finishing applications, this machine combines advanced automation with user-friendly features to deliver consistent, high-quality results. With 17 pre-programmed fold types, Touch&Work technology, and fully automatic settings, it enables quick setup and seamless operation, even for inexperienced users. Key benefits include enhanced productivity, precise sheet handling, and the ability to handle a wide range of paper sizes and weights, making it suitable for both standard and complex folding tasks.
Key Technical Aspects:
Dimensions and Specifications : The Horizon AFC-566F has a main body measuring 3,100 mm (L) x 1,090 mm (W) x 1,680 mm (H) and a delivery unit of 1,320 mm (L) x 600 mm (W) with variable height. The machine weighs 1,270 kg and operates on a 400 V power supply with a 3.2 kW rating. It achieves a maximum speed of 240 m/min or 30,000 cycles/h in cross fold, with a feeder pile height of 740 mm.
Paper Handling : The machine accommodates paper sizes ranging from 128 x 148 mm (minimum) to 558 x 850 mm (maximum) and handles paper weights between 40 – 250 g/sqm. It features a first folding unit with 6 folding pockets and a second unit with a folding knife plus 2 folding pockets. Additional capabilities include double sheet detection, sheet run monitoring, and optional creasing and perforating for enhanced finishing.
| Model | Horizon-AFC-564/566 |
|---|---|
| Reference Number | 70265 |
| Manufacturer | Horizon |
| Year | 2010 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
