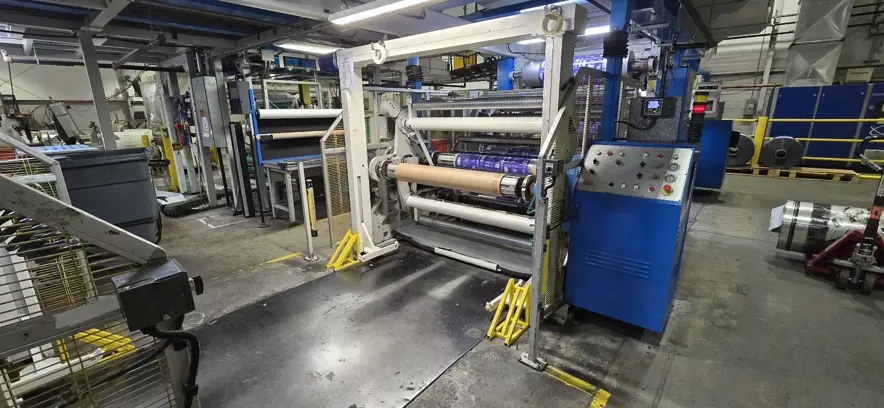

Uteco
Horizon DTH 130
2006
Flexographic equipment
Maximum film width: 1350 mm Coating width: max. 1300 mm Mechanical speed: 305 m/minute Materials to be coated: BOPP 18-40 microns, PA 12-30 microns, PET 12-24 microns, Paper 60-100 gr/sqm, Laminates 60-100 gr/sqm Materials to be laminated: BOPP 12-40 microns, CPP 12-40 microns, PA 12-30 microns, CPA 12-30 microns, LDPE 20-120 microns, PET 12-24 microns, ALU FOIL 9-18 microns, Paper 40-80 gr/m2, Laminates 40-80 gr/m2 From left to right First unwinder reel diameter: 800 mm Secondary unwinder reel diameter: 800 mm Tension range: 1,5 - 34 kg Rewinder diameter: 800 mm Reel shafts: pneumatic Core diameter: 76 m
United States

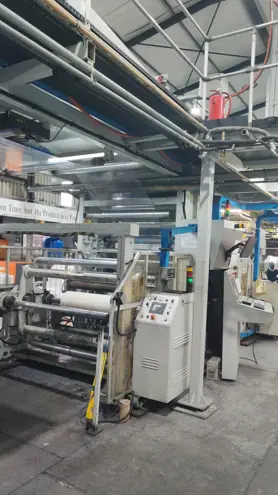

Uteco
Onyx 876 GL
2006
Gravure / Rotogravure
Maximum Width: 1450 mm Flexo CI Gearless 8 Printing Units Drying System: LPG Gas Repeat: 380 – 800 mm Mechanical Speed: 365 m/minute Doctor Blade Chamber Maximum Material width: 1410 mm Unwinder Turret - 800 OD Rewinder Turret- 800 OD Sleeve Anilox Rollers HMI Control unit for Sleeve change/Temperature/Tension, and register 3 x keypad controls Camera ReVision BST Edge guides for the rewind and unwind Chill Roll unit with Corema Chiller unit Allen Bradley PLC Control Techniques Drives for Cliché and Anilox Software upgraded in 2023 Gas drying system with an automatic air recirculation system Anilox- 4x475 ,4x320, 2x260, 1x200, 1x220, 1x140, 2x120, 2x160, 1x180, 2x100, 1x80 Sleeves-16x380, 8x400, 8x410. 8x420, 10x430, 8x450, 9x490, 8x500, 8x510, 8x520, 16x530, 12x600,8x570, 8x580, 8x600,16x620, 8x630, 8x640, 8x650, 9x660, 8x670, 8x690, 8x700, 8x750, 8x790, 8x800
South Africa
