Tecnau Preloved and Preowned
Tecnau
Libra 800
2016
Book Production
We are pleased to offer: Used TECHNAU LIBRA 800 Book Production Line Year 2016 Specification Tecnau Libra 800 line, effectively doubling the system’s on-demand book manufacturing capacity. Designed for high-variability, short-run and one-copy-per-job production, the line enables seamless finishing of unique books with zero changeover time. The Tecnau Libra 800 is a fully automated book finishing solution capable of processing each book with different formats, thicknesses, and cover styles. It integrates unwinding, book-block assembly, binding, and three-knife trimming into a single continuous workflow. With two Libra 800 units working in parallel, the system significantly increases throughput while maintaining consistent quality and precise dimensional control. Technical Specifications – Tecnau Libra 800 (per line) Productivity Up to 800 books per hour (per Libra 800 line) Combined output with two lines: up to 1,600 books per hour Input / Feeding: Continuous web input or pre-assembled book blocks Supports variable format book-of-one workflow Finished Book Size: Width: Min. 130 (5.1”)/ Max. 220 mm (8.66”), max. 297 mm (11.69”) (at reduced speed) Spine height: Min. 130 mm (5.1”), max. 305 mm (12”) Book Thickness: 2 – 60 mm (0.079-2.36”) Input from roll: Web width: Max. 540 mm Printing mode: 1 up, 2up and 3 up depending on configuration selected Paper weight: 60-120 gsm Soft Cover: Width: Min.280 mm (11”) / Max. 520 mm (20.5”), max. 680 mm (26.77”) (at reduced speed) Height(spine): Min. 140 mm (5.5”) – Max. 320 mm (12.6”) Weight: 250 gsm coated & laminated End Sheets: Width: Min. 150 mm (5.9”)-Max. 230 mm (9.06”), max. 310 mm (12.2”) (at reduced speed) Height (spine): Min. 190 mm (7.5”)- Max. 305 mm (12”) False Cover: Width: Min. 300 mm (11.8”) - Max. 620 mm (24.4”) Height: Min. 190 mm (7.5”) – Max. 305 mm (12”) Binder (Books Block): Width Min. 140 mm (5.5”)- Max. 230 mm (9.06”), max. 310 mm (12.2) (at reduced speed) Height (spine): Min. 140 (5.5”) - Max. 315 mm (12.4”) Thickness: 2-60 mm (0.079-2.36”) Trimmer: Width: Min. 130 mm (5.1”)- Max. 320 mm (12.6”) Height (spine): Min. 130 mm (5.1”) - Max. 360 mm (14.2”) Thickness: 2-60 mm (0.079-2.36”) Binding Technology: EVA glue (or hotmelt configuration) Good working order Available immediately
Ringwood
United KingdomTecnau
Unwinder 550 with Cutter C 20, SheetFeeder T 20
2018
Slitter rewinders
We are pleased to offer: Used Tecnau Unwinder 550 Year 2018 Specification Includes: Cutter C20, SheetFeeder T20 The Unwinder 550 is the ideal solution to feed today’s most advanced digital printers, feed offline high-speed inserters and all standard finishing solutions such as roll to stack, roll to fold and roll to book block solutions. The center-shaft driven Unwinder 550 feeds a roll of paper into the printer for continuous printing. Standard features of the Unwinder 550 include an interactive touch screen display, compatibility with multiple core sizes and an easy-to-use splice station. The Unwinder can be equipped with an optional splice sensor to automatically detects roll junctions and stop the feeding process to secure the safety of Ink-Jet print heads. The Unwinder 550 can also be equipped with a heavy paper kit to support graphic arts applications such as photo books, calendars, brochures and more. Speed max.: 600 ft/min - 180 m/min Feeding: Pinfed or pinless Paper weight: 10.5# bond - 140# index, 40 - 250 gsm (above 200 gsm with heavy paper kit and subject to application review) Roll diameter: 100 mm - 1320 mm or 4” - 52” Roll weight max.:1389 lb or 630 kg Web width: 155 mm - 520 mm or 6” - 20.5” Core sizes: 70, 150, 200 mm or 3”, 5”, 6” Temperature: 60 - 80° F or 15 - 27° C Acoustics: 65 dB(A) Humidity: 40 - 60% Dimensions Length: inc loop: 1420 mm (1810mm) or 56” (71.3”) / inc loop and max roll: 2310 mm or 91” Width: 1140 mm or 44.9” Height: excl. display 1085 mm (1265mm) or 42.75” (49.8”) Weight: 1587 lb or 720 kg Colour: Gray High-speed cutting Cutter c20 Speed: max. 600 ft/min 180 m/min Feeding: Pinfed or pinless Web infeed: 1 or 2 with slit merge Paper weight: 10.5# bond - 140# index, 40 - 250 gsm (paper dependent, above 200 gsm requires application review) Web width: 140 - 520 mm or 5.5” - 20.5” Form length: 89 - 457 mm or 3.5” - 18” Delivery height: 950 - 1050 mm or 37.4” - 41.3” Gutter cut: 6, 8, 10, 12mm Electrical Power: 200 - 240 VAC, 1 phase, 50/60 Hz, 10A Consumption: 2250 W (in use) 260 W (idle) Heat output: 1500 BTU/h Temperature: 50° - 90° F or 10° - 32° C Acoustics: 75 dB(A) Humidity: 40 - 60% Dimensions: Length: 1170 mm or 45” / Width: 1170 mm or 46” Height: excl. display 46” 1170 mm Weight: 1067 lb or 485 kg Colour: Gray Transport t20 feeder/by-pass Direct connection of c2x cutters to finishing units Speed: max. 750 ft/min 228 m/min Feeding: Pinfed or pinless Paper weight: 10# bond - 112# cover, 40 - 300 gsm Media type: Coated and uncoated paper Web width: 140 - 520 mm or 5.5” - 20.5” Sheet length: 89 - 2500 mm or 3.5” - 99” Applications: 1-up, 2-up Delivery height: 950 - 1050 mm or 37.4” - 41.3” Justification: Left or right edge based on web input (Adjustable to support centre justified following devices) Temperature: 66 - 84° F or 19 - 29° C Acoustics: ~ 70 dB(A) Humidity: range 50 ± 10% optimum 40% - 80% limit Dimensions: Length 773 mm or 31” / Width 1170 mm or 47” / Height 1165 mm or 46” Weight: 440 lb or 200 kg Color: Dark Grey Good working order Available immediately Read more: https://www.jerrycurtin.com/machine/en-134505/tecnau-unwinder-550-with-cutter-c-20,-sheetfeeder-t-20
RingwoodUnited KingdomTecnau

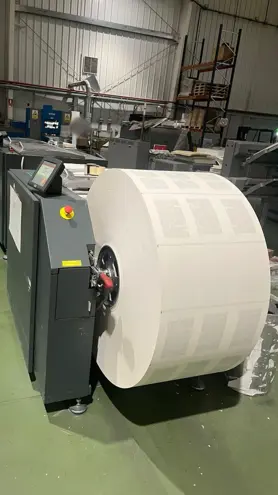

562
2017
Sheeter
Feeding from a continuous paper roll with or without feeders (pinfed or pinless) Cross and edge cutting with a Tecnau Cutter C562 knife cutter Stacking with a Tecnau Stacker S566 stacker Delivery in stacks of cut sheets onto a Tecnau DT 1.2 m delivery conveyor. Paper: with and without feeds (pinfed and pinless) Coils: Coil core: 70 mm, Outer diameter: 4 – 52 inches Paper width: 140 – 520 mm Cut paper length: 3.5 inches – 19.5 inches Paper weight: 40 – 200 g/sqm Stacks (s566): Stack height: up to 250 mm; cut paper length: max. 19.5 inches Backlash: 15 mm (optical mark selective or fixed) Speed: up to 130 m/minute Supply voltage: 220 V – 50 Hz (with ground) Unwind u550 Unwinder Reel diameter: 4" – 52" Reel weight: max. 630 kg Cutter c562 Cutting length: 3.5" – 19.5" Backlash: 15 mm Feed: 1/6", 1/8" Vertical Stacker s566 Delivery Height: 650 – 750 mm Stack Length: up to 19.5 inches (sheet length) Stack Height: 1 sheet – 250 mm DT 1.2 m Delivery Table Stack speed: 6 – 21 m/minute
Spain
