Karlville
KV-400 DSUP
2019
Pouch Making Machine

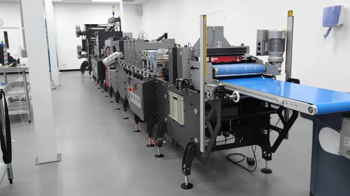

Karlville KV-400 DSUP Pouch making line Age: 2019 Supports a wide variety of pouch formats including: 3-side-seal pouches (from 1 or 2 webs) Stand-up pouches (from 1 or 3 webs) 2-side-seal pouches (from folded web) With or without zippers - Folded gussets Max Pouch Width: 400mm Max Pouch Height: 400mm Gusset Depth Range: 15–65mm Machine Specifications Max mechanical speed: 200 cpm Production speed: ~130 cpm (material dependent) Max material width: 420mm Material range: PET, ALU, PE laminated with PP or PE Material thickness: 55–200 microns Included Equipment Top + bottom unwinders with pneumatic clamping Servo-driven draw, 1nip, sealing and cooling stations Bottom gusset folding and zipper unwinder Flying knife cutting system with anti-static bar Eye-mark sensor and ultrasonic edge guide Conveyor exit system Tear notch, euro hole & tack-hole punches Doy style and straight sealing dies Zipper sealing and cooling dies Multiple cross sealing dies and silicon holders Over £100k of extras included: Ultrasonic zipper crush station, vacuum punch waste removal, gusset folding upgrade, chiller, and more. Additional kit on the machine: Second Longitudinal station - smaller zipper pouches and separate skirt seal for multi web pouches. Additional Cross seal station for running mono materials Double cut function Additional Trim rewinder Mono Gusset Seperator Additional punch bridge
Hude
GermanyKarlville
K1 Seam 200
2011
Flexographic equipment
PLC Controlled shrink sleeve seamer with touch screen operator interface capable of seaming PVC, PET, OPS, PLA shrink films Maximum speed: 200 m/minute Unwind width: 420mm 3" OD pneumatic core chucks and a 55mm to 200mm lay flat finished rewind at standard industry tolerances. Wick solvent application Adjustable forming plate 8 forming side wheels 2 forming fingers Anti-static brush 420 mm OD cantilevered roll capacity with oscillating rewind control Voltage AC 1 Phase, 200 V, 60 HZ, 10 A
United States
