Horizon
StitchLiner System
2006
Saddle Stitcher
We are pleased to offer: Used Horizon StitchLiner System Year 2006 Specification Horizon StitchLiner line for saddle-stitched booklets, configured for continuous production with tower collating, accumulation and folding, saddle stitching, and in-line three-knife trimming. The VAC-100 towers ensure stable, expandable vacuum-fed sheet feeding; the ACF-30 accumulator/folder assembles the set with controlled creasing and folding; the SPF-30 stitcher/folder performs precise saddle stitching; the HTS-30 trimmer executes the final three-knife cut; and the ST-40 stacker/by-pass unit allows high pile stacking, rejection of faulty sets, and continuous operation. The belt delivery and waste extraction system optimise workflow and cleanliness throughout the line. An ideal system for commercial printers and publishers requiring precision, repeatability, and high productivity in brochures, magazines, and catalogues. Includes: 2× VAC-100 Collating Towers (VAC-100a & VAC-100m, 10 bins each, suction feed) ST-40 Stack/By-pass Unit ACF-30 Accumulator/Folder SPF-30 Saddle-Stitcher/Folder HTS-30 3-Knife Trimmer (in-line) Belt delivery system Waste extraction for trimmer Maximum speed: Up to 9,700 sets/hour (job dependent) Sheet size range: Approx. 148 × 148 mm to 350 × 500 mm Maximum book thickness: Approx. 51 mm (trimmer) Condition: Fully operational, well-maintained, in production Good working order Available immediately Read more: https://www.jerrycurtin.com/machine/en-134471/horizon-stitchliner-system
Ringwood
United KingdomHorizon
MC-80a
2003
Collator and booklet production
We are pleased to offer: Used Horizon MC-80a MC-80m (Collating Towers) FC-20 (Fore-edge Trimmer) SPF-20 (Stitcher & Folder) Booklet Maker Year 2003 Specification Multi – Modular Air – Suction Collator MC-80a (Main Module) MC-80m (Extension Module) Number of Bins: 8 Sheet Size: 148 x 210 mm to 318 x 470 mm (5.8” x 8.3” to 12.5” x 18.5”) Bin Pile Height: 50 mm (2”) Stock Weight: 52 gsm to 260 gsm Collating Speed (A4): 3,500 Sets/Hr Error Detection: Miss, Double, and Jam Detection system (Photocell) Error Monitor: Two sets of Feed Error Monitors Power: 200 V 50/60Hz,220 V 60 Hz, 400 V 50 Hz Power Consumption: 200 V MC 80a 1,900 W, 400 V MC 80a 1,800 W / 200 V MC 80m 200 W, 400 V 200 W Machine Weight: MC 80a 229kg (505 lb) / MC 80m 223kg (492 lb) SPF-20 Stitcher & Folder Sheet Size: Max. 350(W) x 500(L) mm (13.7" x 19.6") Min. 120(W) x 180(L) mm (4.8" x 7.1") Finish Size: Max. 250(W) x 350(L) mm (9.8" x 13.7") Min. 90(W) x 120(L) mm (3.6" x 4.8") Stitching Thickness: Max. 4 mm (0.15") (only for side stitch) Stitching & Folding Thickness: Max. 2 mm (0.07") 20 sheets of 60 gsm Stitch Distance: 73 to 160 mm (2.9" to 6.2") Adjustable Stitching Wire: Standard: No. 25 (0.5 mm) (0.020") Option: No. 28 (0.4 mm) (0.016") Production Speed: Max. 3,660 booklets/hr. (A4-Finish) Max. 4,050 booklets/hr. (A5-Finish) Voltage / Frequency: Single Phase 200 V, 50 / 60 Hz Single Phase 220 V, 60 Hz Single Phase 230 V, 50 / 60 Hz Rated Current: Single Phase 200 V, 50 / 60 Hz, 3.7 / 2.9 A Single Phase 220 V, 60 Hz, 3.4 A Single Phase 230 V, 50 / 60 Hz, 2.2 / 2.0 A Power Consumption: Single Phase 200 V, 50 / 60 Hz, 460 / 400 W Single Phase 220 V, 60 Hz, 600 W Single Phase 230 V, 50 / 60 Hz, 520 / 500 W Heat Output: 620 kJ (150 kcal) Motors: 200 W x 1, 100 W x 1, 60 W x 1, 15 W x 1 Machine Weight: 1, 100 W x 1, 60 W x 1, 15 W x 1 470 kg (1,036.4 lbs.) FC-20 Fore-edge Trimmer Book Size (Before Trim): Max. 250(W) x 350(L) mm (9.8" x 13.7") Min. 90(W) x 120(L) mm (3.6" x 4.8") Finish Size: Max. 250(W) x 350(L) mm (9.8" x 13.7") Min. 85(W) x 120(L) mm (3.4" x 4.8") Trimming Length: Max. 20 mm (0.78") Trimming Thickness: Max. 4 mm (0.15") 50 sheets of 60 gsm Production Speed: 3,660 booklets/hr. (A4-Finish) 4,050 booklets/hr. (A5-Finish) Voltage / Frequency: Single Phase 200 V, 50 / 60 Hz Single Phase 220 V, 50 / 60 Hz Single Phase 230 V, 50 / 50 Hz Rated Current: Single Phase 200 V, 50 / 60 Hz, 1.5 / 1.6 A Single Phase 220 V, 50 / 60 Hz, 1.4 / 1.0 A Single Phase 230 V, 50 / 60 Hz, 1.3 / 1.4 A Power Consumption: Single Phase 200 V, 50 / 60 Hz, 290 W Single Phase 220 V, 50 / 60 Hz, 280 / 220 W Single Phase 230 V, 50 / 60 Hz, 270 / 300 W Motors: 400 W x 1, 60 W x 1, 25 W x 1 Machine Weight: 230 kg (507.2 lbs.) Good working order Available immediately Read more: https://www.jerrycurtin.com/machine/en-134466/horizon-mc-80-a,-mc-80-m,-spf-20,-fc-20-booklet-maker
RingwoodUnited KingdomHorizon
BQ 270
2009
Perfect binder lines
We are pleased to offer: Used Horizon BQ-270 Perfect Binder Year 2009 Specification The BQ-270 is the first single-clamp binder to automatically set-up for cover scoring. Book titles are accurately positioned on the spine, and "hinge scoring" preserves the integrity of the spine LCD Touch - Screen Automatic cover feeder Hotmelt gluing Milling station Under 1 million copies Number of Clamper: 1 Book Size (Spine x Fore-edge): Max. 320 x 320 mm / Min. 135 x 105 mm Book Thickness: 1 to 50 mm (0.04" to 2") Cover Size (Top-Bottom x Fore-edge): Max. 320 x 660 mm / Min. 135 x 230 mm Cover Weight Range: 82 gsm to 302 gsm Cover Pile Height: Max. 70 mm (2.7") Warm Up Time: 40 min. Glue Temperature: 120 to 180 C Max. Milling Depth: 3 mm (0.12") Production Speed: Max. 500 cycle/hr. Voltage / Frequency: 3-Phase 200 V 50/60 Hz, 3-Phase 220 V 50/60 Hz, 3-Phase 400 V 50/60 Hz Machine Dimensions: 2,300(W) x 860(D) x 1,250(H) mm (90.6" x 33.9" x 49.2") Machine Weight: 900 kg (1,984.5 lb) Good working order Available immediately Read more: https://www.jerrycurtin.com/machine/en-134465/horizon-bq-270-perfect-binder
RingwoodUnited KingdomHorizon
AFC 746 F Cross Folder
2015
Folding Machine
We are pleased to offer: Used Horizon AFC 746F Cross Folder Year 2015 Specification BI Folder Registration Mark Input Screen Power Stop System Automatic Perforation Shaft Extraction Ejecting Function Presser stacker Machine Configuration: 6KTTL (6 Buckles 1st Fold Knife 2 Buckles below Knife 2nd Fold Knife) Sheet Size (Width x Length): Flat Pile Feeder: Max. 738 x 1,100 mm or 29.055” x 43.310” / Min. 210 x 210 mm or 8.270” x 8.270” Pallet Pile Feeder: Max. 738 x 1,100 mm or 29.055” x 43.310” / Min. 210 x 297 mm or 8.270” x 11.695” Round Pile Feeder: Max. 738 x 1,300 mm or 29.055” x 51.181” / Min. 210 x 148 mm or 8.270” x 5.827” Sheet Weight Range: Normal Paper 35 to 209 gsm, Art/Coated Paper 50 to 232 gsm Buckle Fold Length: 1st Buckle 1st Buckle 60 to 560 mm or 2.4” to 22.0” (Auto) 2nd Buckle 30 to 515 mm or 1.2” to 20.2” (Auto) 3rd Buckle 30 to 480 mm or 1.2” to 18.8” (Auto) 4th Buckle 30 to 480 mm or 1.2” to 18.8” (Auto) 5th Buckle 30 to 480 mm or 1.2” to 18.8” (Auto) 6th Buckle 30 to 330 mm or 1.2” to 12.9” (Auto) Belt Speed: 30 to 240 meters per minute or 99 to 787 feet per minute, Knife Fold 240 meters per minute or 787 feet per minute Good working order Available immediately Read more: https://www.jerrycurtin.com/machine/en-134464/horizon-afc-746-f-cross-folder
RingwoodUnited KingdomHorizon
AFC 566 AKT
2012
Folding Machine
We are pleased to offer: Used Horizon AFC 566 AKT Year 2012 Specification High-performance, space-efficient automated cross-knife folding machines - The Horizon AFC-56 series features advanced automation, user-friendliness, and high-quality folding. – Set up a wide variety of fold patterns by simply touching the corresponding icon and inputting the sheet size on the large LCD colour touchscreen. 17 fold patterns are set on AFC-566AKT. – Automated setups take just a few seconds. The LCD touchscreen prompts the operator through all remaining settings for fast, efficient production. All adjustments are user-friendly and require minimal skill or training. – Fold rollers are constructed with a combination of steel and soft polyurethane for superior grip and sharp, consistent folding. – Horizon's advanced rotary suction feed system delivers fast, consistent feeding on a wide range of paper stocks. Machine Structure: 6KTT (6 Buckles Fold Knife, 2 Buckles Below Knife) Sheet Size Max. (Width x Length): 558 x 850 mm or 21.965” x 33.460” (Length 1,100 mm or 43.310” with optional extension table) Sheet Size Min. (Width x Length): 128 x 148 mm or 5.040” x 5.830” (Register guide minimum set position: width 74 mm or 3.0”) Sheet Weight Range: 35 to 220 gsm Belt Speed: 30 to 230 meters (99 to 754 feet) per minute Knife Fold 180 meters (590 feet) per minute Production Speed: Suction Head 42,000 cycles per hour, Knife 21,000 cycles per hour. Good working order Available immediately Read more: https://www.jerrycurtin.com/machine/en-134463/horizon-afc-566-akt
RingwoodUnited KingdomHorizon
VAC 100a
2001
Collating and inserting lines
We are pleased to offer: Used 3 X Horizon VAC-100-A-M-C TOWERS With ST-20 Stacker Year 2001 Specification -Air-Suction Collator VAC-100 Included: VAC-100A, VAC-100M, VAC-100C Module Configuration: VAC-100a / VAC-100m / VAC-100c Number of Bin: 10 bins Sheet Feeding System: Suction Rotor Feeding System Sheet Size Max. 350(W) x 500(L) mm (13.77" x 19.68") Min. 148(W) x 148(L) mm (5.83" x 5.83") Sheet Weight Range: 52 gsm to 208 gsm Bin Pile Height: Max. 55 mm (2.2") Sheet Overlap: 4 Steps Collating Interval: Automatic Setting and Variable Setting Production Speed: Max. 9900 sets/hr. Only when connected with the StitchLiner5500. Machine Weight: VAC-100a : 290 kg / VAC-100m: 290 kg / VAC-100c : 290 kg Voltage / Frequency: Single Phase 200 V, 50 / 60 Hz Single Phase 220 / 230 / 240 V, 50 Hz -ST-20 Stacker Delivery Flexible stacking: It can stack sheets flat or offset, adapting to different print jobs. It can stack papers up to 320 mm high, which means fewer stops to empty it. Neat and tidy: The ST-20 stacks papers precisely, keeping everything in order. Max. sheet size: 450 x 310 mm Min. sheet size: 185 x 128 mm Max. Pile Height: 320 mm Dimensions: 652 x 550 mm Weight: 62 kg Good working order Available immediately Read More: https://www.jerrycurtin.com/machine/en-134447/3-x-horizon-vac-100-a-m-c-towers-with-st-20-stacker
RingwoodUnited KingdomHorizon
VAC 100a
2009
Collating and inserting lines
We are pleased to offer: Used Horizon VAC 100a Collator with ST 20 Delivery Year 2009 Specification The Horizon VAC-100A Collator with ST-20 Delivery is a highly reliable and fully automatic collating system designed for professional print finishing environments. Renowned for its accuracy and flexibility, the VAC-100A uses a suction rotor feeding system that ensures smooth, mark-free handling of a wide range of paper stocks. With 10 bins per tower and the ability to expand up to 6 towers (60 stations), this model provides excellent scalability for medium to high-volume production. The attached ST-20 stacker unit efficiently receives collated sets and automatically offsets them laterally for easy separation. The stacker can unload completed sets directly onto a wheeled pallet, ensuring continuous operation with minimal manual intervention. This combination delivers outstanding productivity, consistency, and versatility—ideal for commercial printing, booklet production, and finishing operations. VAC-100 Series Number of Bin: 10 bins Sheet Feeding System: Suction Rotor Feeding System Expandability: Up to 6 towers (60 stations). Sheet Size: Max. 350(W) x 500(L) mm (13.77" x 19.68") / Min. 148(W) x 148(L) mm (5.83" x 5.83") Sheet Weight Range: 52 gsm to 208 gsm Bin Pile Height: Max. 55 mm (2.2") Sheet Overlap: 4 Steps Collating Interval: Automatic Setting and Variable Setting Production Speed: Max. 9,900 sets/hr. (A5LEF, Straight Receiving) / Max. 8,900 sets/hr. (A4LEF, Straight Receiving) Program Collation: Double Cycle / Dual Cover Feed / Preset Tabbing Stacker Unit (ST-20 Delivery) Type: Automatic offset stacker receiving tray Function: Laterally shifts each collated set to separate completed stacks Unloading System: Stack of collated sets can be unloaded directly onto a wheeled pallet Operation: Collating restarts automatically when the stacker returns to its home position Sheet Overlap: 4-step adjustment Collating Interval: Automatic and variable setting Production Speed: Up to 9,900 sets/hour (A5 LEF, straight receiving) / Up to 8,900 sets/hour (A4 LEF, straight receiving) Program Modes: Double cycle, dual cover feed, preset tabbing Good working order Available immediately
RingwoodUnited KingdomHorizon
AFC 566 AKT
2009
Folding Machine
max. size 49 x 65 cm age 2009 flat pile feeder with suction head 6 folding pockets in the parallel fold section 1 folding knife in the cross fold section 2 additional folding pockets after the cross fold window folding pocket stream delivery Delivery time: immediately Ref: HO250221A Please ask for price. We ship and install worldwide!
Stuttgart
DeutschlandHorizon

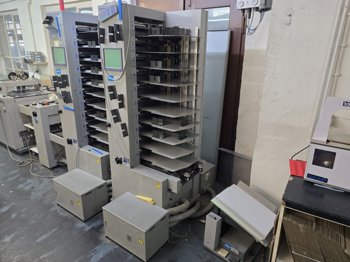

SPF 20
2000
Booklet machines
max. size 35 x 50 cm age 2000 2 gathering tower VAC 100 (20 station) jogging delivery pile lowering table ST 40 stitch-fold unit SPF 20 trimmer FC 20 stream delivery Delivery time: shortly Ref: HO250138A Please ask for price. We ship and install worldwide!
Stuttgart
DeutschlandHorizon

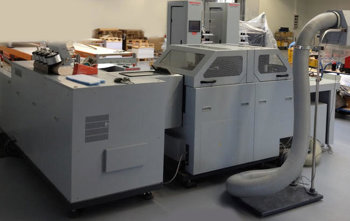

Stitch Liner 5500
2005
Booklet machines
2 collating towers VAC 100 a+m with 10 stations each (20 stations in total, expandable to 60) 1 additional blower EAB-100 ACF 30 collecting and folding unit SPF 30 stapler (2 stapling heads Hohner 43/6 S) HTS 30 3-side trimming with 8mm separating cut device Chip extraction PK 30 Pre-selection counter with offset delivery
DabergotzGermanyHorizon
StitchLiner 5500
2005
Saddle Stitcher
4 towers 6 mm Inter-Cut Horizon SPF 30 saddle stitcher Horizon HTS 30 Three-Knife Trimmer Horizon ACF 30 Maximum sheet format: 350 x 500 mm Minimum sheet format: 140 x 199 mm Weight Range: 64 - 210 g/sqm Maximum booklet(before trim): 350 x 250 mm Minimum booklet(before trim): 140 x 102 mm Minimum Trim: 2 x 25 mm Maximum production speed: 5.500 booklets/hour
Belgium
Horizon

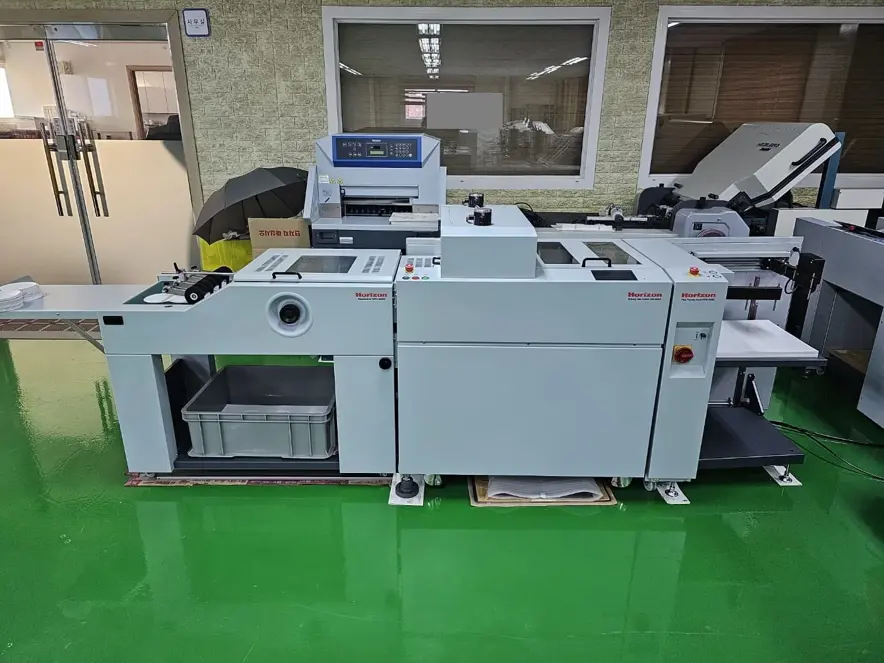

RD-4055
2014
Die cutting

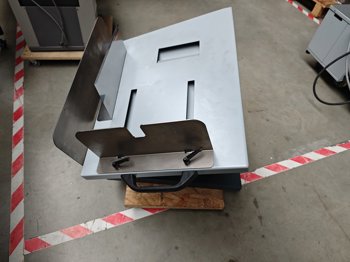

Format: 40x55 cm Format before: Max. 400 x 550 mm; Min. 200 x 275 mm Format after: Max. 376 x 526; Min. 50 x 80 mm Substrate thickness: 127,9 - 400 g/ sqm Production speed: 6000 cycles/ hour Electronic settings Configuration: FFU 4055 RD 4055 BT 4055 SPC 4055
South Korea
Horizon

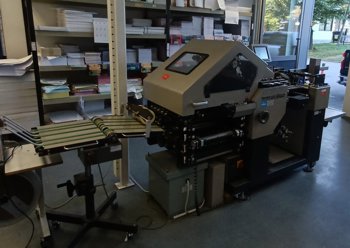

AFC-504AKT
2000
Folding Machine
max. size 49 x 65 cm age 2000 flat pile feeder with suction head 4 folding pockets in the parallel fold section 1 folding knife in the cross fold section 1 additional folding pocket after the 1st cross fold stream delivery Ref: HO250137A Please ask for price. We ship and install worldwide!
StuttgartDeutschlandHorizon
AFC-504AKT
2000
Folding Machine
max. size 49 x 65 cm age 2000 flat pile feeder with suction head 4 folding pockets in the parallel fold section 1 folding knife in the cross fold section 1 additional folding pocket after the 1st cross fold stream delivery Delivery time: shortly Ref: HO250024A Please ask for price. We ship and install worldwide!
StuttgartDeutschlandHorizon

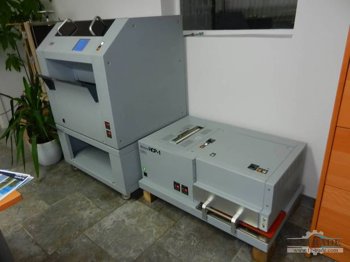

HCM-1/ HCP-1
2009
Case makers
Buchdeckenmaschine - Bucheinhängemaschine - Case maker - Crease and Presser Horizon HCM-1/ HCP-1 Year 2009 - HCM-1/HCP-1 Serial-No. 312002 Book Block size min. 133.7x136.7mm, max. 297 x 215,9mm Cover Material min. 169.7x322x4mm, max. 333x502.8mm
NurembergGermanyHorizon
StitchLiner 5500
2006
Saddle Stitcher
Sammelhefter / Saddle Stitcher Horizon Stitchliner 5500 Year 2006 - SN. 349006 Zählerstand / Working hours 9Mio books Sheet Size min. 148x120mm - max. 500x350mm Paper weight 40-350g Production speed max. 9.500 cycles/h VAC-60Ha Air suction collator VAC-600Hc Air suction collator VAC-600Hm Air suction collator ST-CV Horizontal Conveyor ACF-30 Accumulate & Folder SPF-30 Saddle Stitcher HTS-30 Three Knife Trimmer ST-30 Stacker Receiving Tray
NurembergGermany
