GiDue

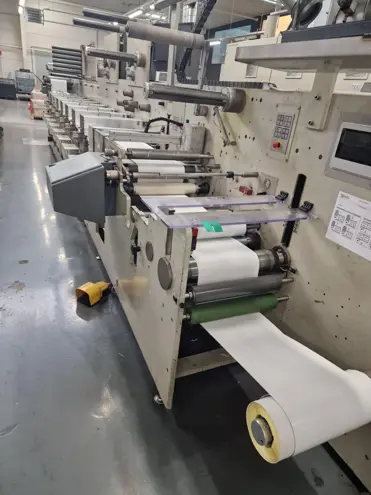

E Combat 430 8k GEW
2010
Flexographic equipment
Maximum width: 430 mm 8 colors Chilled drums Delam-relam Web turn bar GEW UV lamps Gap Master on die-cutting section Cold stamping Double-sided Kelva web cleaner. Tooling: Magnetic cylinders: 144z , 128z i 120 Z Additional anvil K&B pressure Printing cylinders 96z 5 pcs 128z 6 pcs 112z 6 pcs 144z 6 pcs 6 additional idler rollers NIP for cold stamping 10 ink trays + rubber rollers
Belgium
GiDue

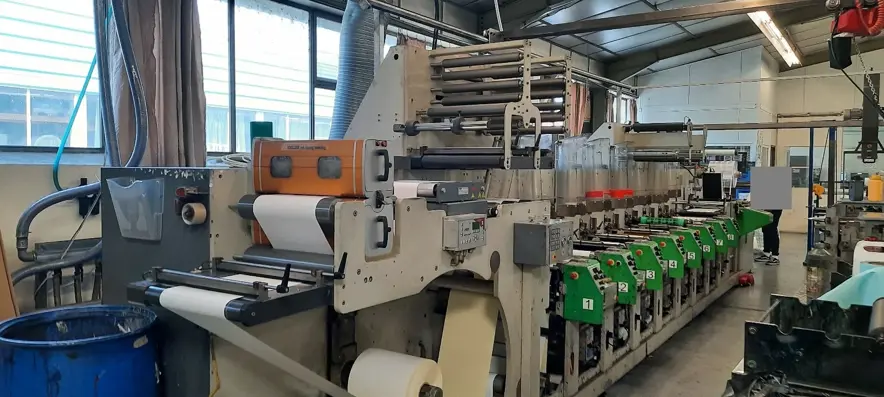

I Combat 430 8K
2008
Flexographic equipment
GapControl Width: 430 mm 8 flexo UV colors Lamination or cold foil stamping on rail Buffer 2 x Die-cutting unit Slitting Full Autoregister Web cleaner Corona treatment No camera, no 100% control, no cooling unit 8 plate holders and 1 magnetic cylinder per feed Z 88, 92, 94, 96, 99, 102, 104, 108, 112, 118, 121, 128, 130, 135, 138, 144, 148, 160
Poland
GiDue

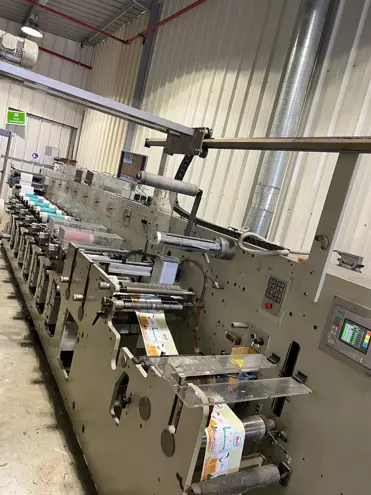

S Combat 370 8K
2009
Flexographic equipment
Mechanical press Maximum width: 370 mm 8 colors UV drying Die-cutting unit Not equipped with: Corona, web cleaner, CS, delam-relam
PolandGiDue

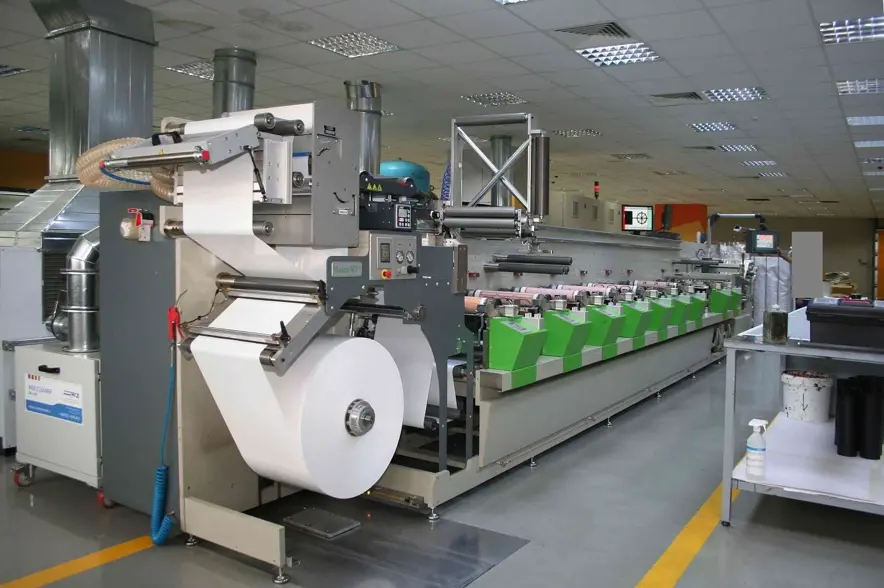

Master M5 430 10k
2012
Flexographic equipment
ARC-Simotion Maximum width: 430 mm Minimum width: 280 mm Printing Width: 420 mm 10 Printing Stations Gear Pitch: Z = 3.175 mm Print Cylinder: 9" - 24" Machine Speed: 15 - 180 m/minute Unwinder Reel Diameter: 1000 mm Rewinder Reel Diameter: 1000 mm Unwind / Rewind Shaft Diameter: 76 mm Plate Thickness: 1,14 mm Back Thickness: 0,38 mm UV dryers on every section No die cut unit Fully servo driven machine and temperature control for unlimited substrates Includes: Front load unwinder with motorized roll lifting Unwinder unit for max. reel diameter 1.000 mm Automatic Web Guide Video inspection with manual camera movement Infeed group Vertical shear slitting unit including 3 circular blades and counter blades Back slitting unit for silicon paper (half cut) includes 2 crush knives Outfeed group 3 x Web break detectors 3 x antistatic bars Motorized rewinder (max. reel diameter 1.000 mm.) Pressure Roller on rewinder Servo-driven unwind shaft Servo-driven infeed and outfeed for automatic tension control ARC GiDue mark-to-cylinder register control hardware and software unit Automatic pre-register Manual lateral register adjustment Second pass register control Local touch screen panel on each printing and die-cutting station Main touch screen panel (PC MHI) Direct Internet Connection for remote SW and HW service and upgrades Flexo Printing Unit Description (1 servo motor for print cilinder, 1 servo motor for impression roller and ink train) Includes: 1340 mm base platforms (for up to 2 Flower flexographic heads) 27" Impression Chilled roller Chilling unit Servo Flower flexographic heads, with 2 servo motors Short Web Path Plexiglass cover for each printing unit Photocells for Gidue mark-to-cylinder register control manual cross register Sensor for automatic pre-register EC, New generation e-bricks stepless 140 W/cm GEW UV dryers lamps (includes main touch Accessories Kit (which includes): Printing accessories - 1 set of rubber rollers per color + 3 additional pcs. - 1 set of inktrays per color + 3 additional pcs. - 1 set of doctorblade holders per color + 3 additional pcs. Extended LTF Module on colors n. 9 and. 10 (Note: rail accessories not possible on LTF Unit) - 27" chilled, driven impression roller to suit UV drying lamp - 41 " driven chilled drum to suit IR + Hot Air drying system. - IR Round with 18 IR Lamps 10 x Print Tutor An "intelligent" camera automatically detects print register and pressure marks and performs completely automatic register adjustment, during the set-up and during production. It includes additional servo motor for lateral register adjustment (lenght register adjustment is built in servo driving motor of the print cylinder. Price per colour Deduction for die-cutting unit (No dies, No Organizer- only slitting) Dryers Additional Chilled Drums Additional Lower 41" driven chilled drum for extra UV lamp or hot air drying cassette. Air Dryers Hot air drying cassette with ultrasonic air solution, for water based inks high speed drying. Unwinder - Rewinder Additional upper rewinder Rail system for accessories Double front rail on the printing units web turn bar Web turn bar on rail (upper position) Useful Equipment Extended web path for varnish Additional ink tray with double rubber roller Miniorganizer 6" pneumatic shaft adapters Web Treaters Corona treaters: Vetaphone 5 kW; DG 33 fan; 6 bars double side head (application frame and installation included) Web Cleaners ACE double side suction cleaner Print tooling Unlimited substrates: labels, shrink sleeves, wrap around labels, flexible packaging, laminated tubes, pharma alufoil, yoghourt lids, lottery tickets, prepaid cards, sausage skins etc. Unlimited converting solutions: multi-web, in-line and off-line laminations, booklet labels, coupon labels etc. Unlimited print repeat sizes and number of printed colours (with second-pass optional equipment). Wide range of combination printing (gravure, silk screen, cold foil, hot-stamping, digital ink-jet). Self Shrinkable Sleeves, Wrap around labels, Pharma Aluminium foil, Yogourt Lids, Unsupported film packaging BOPP, PVC, PE, PET, LamiTube, Carboard, Sausage skins Lottery Tickets, pre-paid cards, tea bags
Poland
