Login

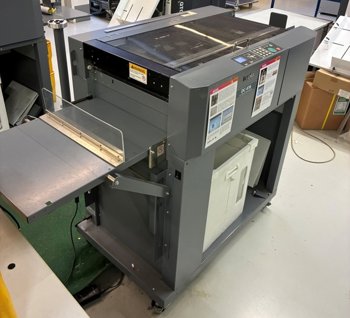

Duplo
DC 616 Pro
2015
Scoring and Perforating machines
max. size 32 x 67 cm age 2015 scoring and perforating machine fully automatic setup cutting - creaing - perforating in one pass Delivery time: immediately Ref: DU250166A Please ask for price. We ship and install worldwide!
Stuttgart
DeutschlandDuplo

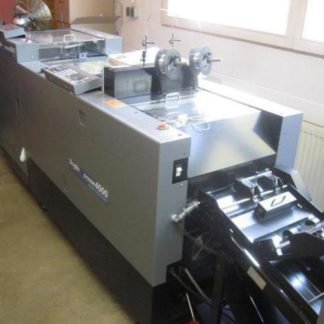

System 5000
2006
Booklet machines
Outfeed vibrator right-hand tower with 10 stations DC 10/60 suction air system Duplo 5000 with touch control LS1 transfer bridge DBM-400 booklet maker with two Hohner stitching heads 48/5 S DBM-400 trimmer DBM-LS long stream delivery
DabergotzGermanyDuplo

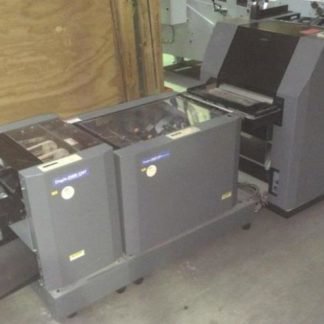

DSF 2000-120
2008
Booklet machines
Set-by-set processing of digitally printed sheets with and without cover insert, consisting of: – DSF 2000 Sheet Feeder – DBM 120 Stitcher/Folder – DBM 120 T Front Trimmer Feed system: Suction belt Paper formats: Length: 279 to 450 mm, Width: 210 to 320 mm Pre-stack height: Paper tray A: 200 mm, Paper tray B: 60 mm Speed: max. 150 sheets/minute The DSF-2000 digital sheet feeder with its two-station feeding system is the key to optimal finishing of digital prints. One station is for brochure covers and/or slip sheets, and another station for digitally sorted printed inside pages. Operation is via the sheet feeder's menu control. The entire booklet production line automatically adjusts to the format loaded into the sheet feeder. The sheet sets assembled by the sheet feeder are collected, stapled, and folded in the FKS/Duplo DBM 120-SxS booklet maker. The trimmer then ensures a perfect finish for your products. Standard equipment: Paper turning device
DabergotzGermanyDuplo

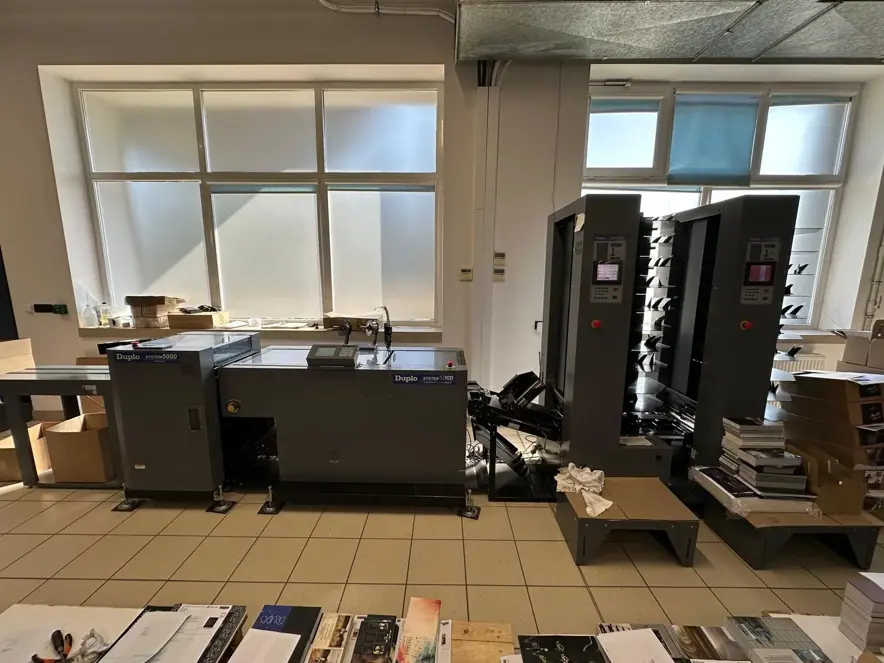

System 5000
2007
Saddle Stitcher

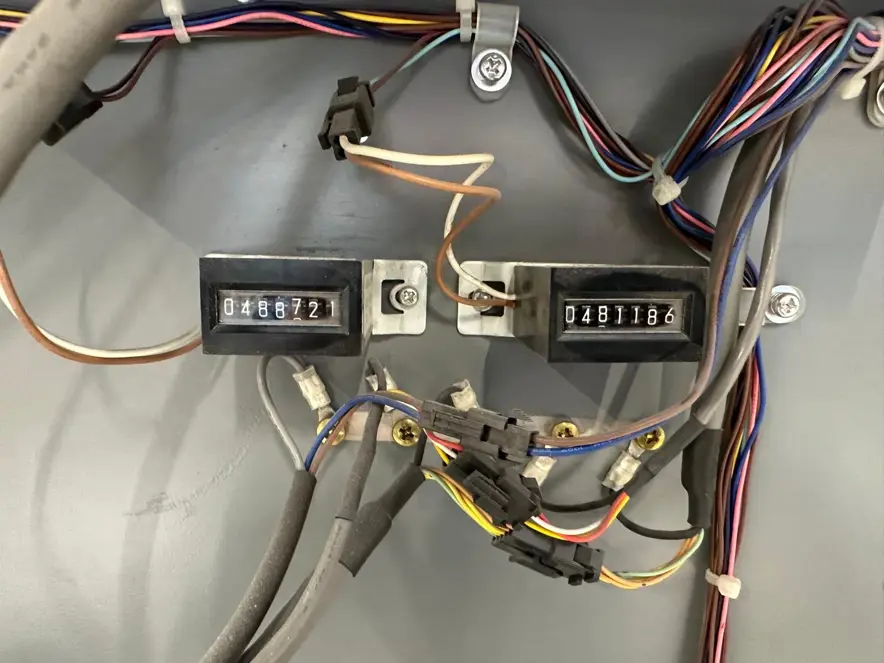

2 towers DBM 500 Counter: 10.5 million DBM 500T Counter: 10.2 million DC 10/60 Counter: 9.8 million DC 10/60 Counter: 2.9 million
Poland
Duplo
System 5000
2007
Saddle Stitcher
Duplo DBM 500 Duplo DC10/60 Duplo DBM 500T Two towers Maximum format: 500 x 350 mm Minimum format: 120 x 80 mm Speed: 5.000 sets/hour
PolandDuplo
Stitchfolder DBM 600
2015
Booklet machines
max. size 35 x 61 cm age 2015 computer control with touch screen 2 gathering tower DSC 10/60i - (20 station) lifting unit LUL HM stitching-folding unit DBM 600 2 stitching heads trimmer DBM 600 T stream delivery marking device Ref: DU250161A Please ask for price. We ship and install worldwide!
Stuttgart
DeutschlandDuplo
DC 615 Pro
2011
Cutting Machine
incl. Duplo Job Creator Software Finisher for digital color prints Edge trimming, panel cutting, creasing of color digital prints in one pass for business cards, folded business cards, greeting cards, folding cards, postcards, brochures, CD/DVD inserts, invitations, programs, displays, and much more. Feed table with 100 mm pre-stacking capacity Air separator for reliable sheet separation 2 rotating side knives 4 rotating cutting knives 1 cross cutter and 1 creasing bar for multiple cutting or creasing
DabergotzGermanyDuplo

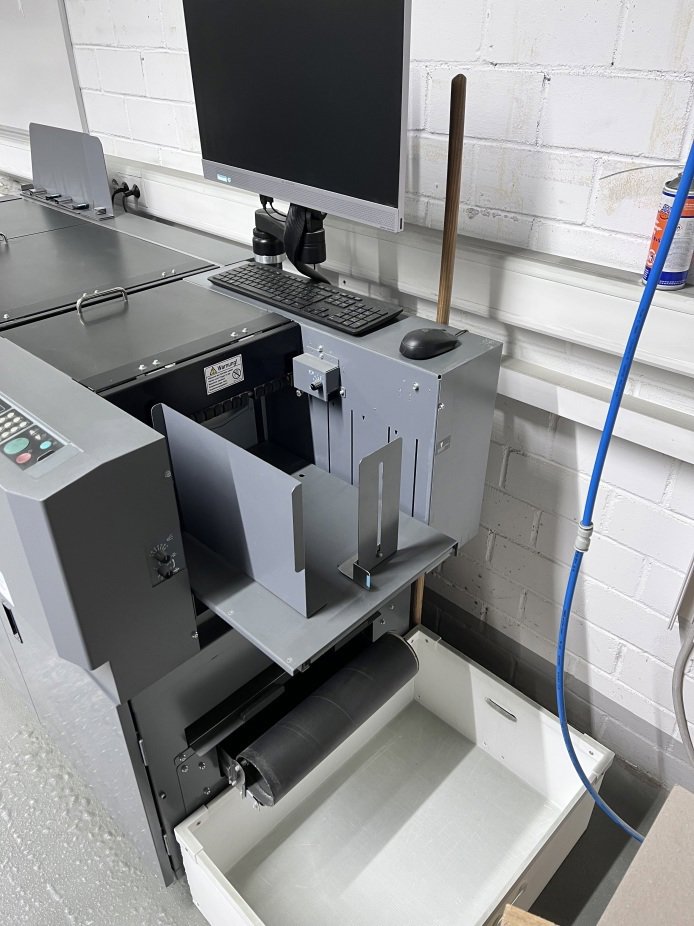

DocuCutter DC 746
2018
Die cutting
max. size 37 x 67 cm age 2018 Multifinisher cutting - creasing computer control with touch screen automatic size adjustment max. 50 cycles / min. (off-load) Delivery time: immediately Ref: DU250090H Please ask for price. We ship and install worldwide!
StuttgartDeutschlandDuplo
System 5000
2006
Booklet machines
Duplo System 5000, Year 2006 (Ref. D7767) Full line of Collator & Saddle Stitching, format 35x50 cm Counter: ca. 7 mio booklets Equipped with: . Tower Duplo DC 10/60 (10 Bins) . Tower Duplo DC 10/60 (10 Bins) . Stitching and Folding Unit Duplo DBM-500 . Stitching heads Hohner Universal 43/6 S . Fore-edge Trimmer Duplo DBM-500T . Lifting Unit LUL-HM . Extended Belt Delivery Duplo DBM-LS1 . Batch Kicker Duplo DBM-K . Jogger Duplo DC-12JR . Including Tools, Manuals and Accessories Machine is Complete, Good maintenance and in very good running Condition
France
Duplo
DPB 500
2015
Perfect Binder and Gatherer
Duplo DPB500 Perfect Binder year 2015 automatic size Automatic cover feeder Hotmelt glue
Terni
ItalyDuplo
DSF-2000 + DBM-120 S/S + DBM-120T
2006
Collator and booklet production
Duplo DSF-2000 Sheet Feeder + DBM-120 S/S Booklet Maker + DBM-120T Trimmer
TerniItalyDuplo
System 3500
2010
Collator and booklet production
Duplo System 3500 10 Station + DBM350 Bookletmaker + DBM 350 Trimmer Year 2010 Top Condition
TerniItalyDuplo
DBM 500 + DSF 2000
2009
Collator and booklet production
DUPLO DSF 2000 DOCUMENT SHEET FEEDER WITH DBM 120 stapler folder BOOKLET MAKER AND DBM 120 T TRIMMER, , The Duplo Digital System 2000 is a mid-volume booklet maker designed to provide a digital printer with a ready to go means of producing booklets from digitally printed pages. There are options for the type of finish required with optical mark recognition to trigger the booklet making sequence. For example, the feeder can take pre-printed litho covers to wrap around variable content inside pages produced on a digital press. Inline trimming gives a professional finish to the completed products., - Saddle stitch and fold, fold only, corner staple or block staple modes, - In-put the amount of sheets per set and the DSF 2000 will automatically pick, staple, fold and trim them., - Up to 20 sheets per booklet, - Optical mark recognition, - Fully automatic setup, - Rejection tray, - Up to 20 sheets per booklet, , - Booklet making - Sheet Size (Min./Max.) 10.98” x 8.27” to 17.72” x 12.60”
Netherlands
Duplo
DC 10000S
Booklet machines
Booklet-Making line consist of: collating tower DC-10000S with 10 suction stations format A3/A4/A5 stitching and folding unit DBM -250 with automatic format setting with stitching heads Hohner trimmer DC – 48TW compressor
Minsk
BelarusDuplo
Ultra 205A
2010
U.V. coaters and dryers
Min size - 210 x 297 mm Max size - 521 x 710 mm Substrates - 120 - 350 grams Speed - 10-40 Meters per minute (roughly up to 4.500 A3 sheets per hour) Feeder - SF-205 Automatic suction feeder Details - batch counter, cleaning function, air knife, touch screen controls, set up by the computer
NetherlandsDuplo

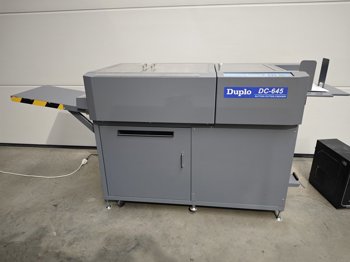

DC-645
2009
Slitter/cutter/creaser
Up to 6 slits, 15 cuts, & 10 creases in 1 pass Processing speed up to 26 sheets per minute Automatic image shift compensation Barcode reader for automatic job set up Ideal for business cards, brochures, greeting cards, photographs, and much more .
Bulgaria
Duplo
DPB 500
2008
Perfect Binder and Gatherer
Duplo DPB-500 Single clamp binder Advantages: - suction cover feed - 4 creasing - touch screen - milling/ notching Technical Details: - cycling speed: 525 books/h - book thickness: 1-51mm - book size: min. 120x250mm; max. 360x696mm - cover weight: 80-302 gsm - cover pile height: 70mm - milling depth: max. 4mm - warm-up time: 45min - glue temp.: 100-200°C - power supply: 3 phase, 380-415V/ 50 60Hz - dimension: 928x2790x1343mm - weight: 695kg
Vogtei
GermanyDuplo
DC-745
2011
Slitter/cutter/creaser
offer consists of: - high performance-finisher DocuCutter DC-745 Duplo DocuCutter DC-745 high performance-finisher for digital color printing: - feeder: air-suction feeder with lining up - operation: by LCD-display - cross-perforation CPM-01 - total paper count: 389.000 - total cut count: 5.7 mio - total crease count: 17.600 - total count operating hours: 1099h 15min - total cross perforating count: 23.400 - saveable jobs: 80 memories for repeat orders - error avoidance: ultrasonic-doublefeed control eject gate testprogram print mark reader - integrated knives 6x 2x edge cut 4x cutting cards - size: max. 650x370mm min. 210x210mm - paper weight: 110-350g/qm - production speed: 50 sheets/min - power: 230V / 50Hz / 2,7 A, 550 W - dimensions: 3.040x1.020x1.115mm - weight: 450kg
VogteiGermanyDuplo
4000/5000
Booklet machines
- Suction feed for trouble-free operation -Touch screen control for ease of set up - Air Management System to each bin delivers consistent feeding on all paper types and weights - Continuous operation thanks to block feeding mode - 120 x 148mm to 350 x 500mm paper formats - Handles litho and digital printed work - Programmable to feed alternative covers or sections - Hand marrying to feed precollated sets - Error Detection: Bin Empty - Double Feed - Mis-feed, - Cover Open - Paper Jam - Optical Mark Recognition - Downstream finisher error - Dimensions (LxWxH): 44" x 30" x 40" - Weight (lbs): 300
United Kingdom
Duplo
System 5000
Booklet machines
Paper Size: Letter, legal, ledger, A#, A4, B4, Custom sizes between 8.5" x 11" and 11" x 17" Paper Weight: 14-42 lbs Speed: Up to 2,000 sets per hour Error Detection: Bin Empty Double Feed Mis-feed, Cover Open Paper Jam Optical Mark Recognition
United KingdomDuplo
System 5000
2013
Booklet machines
2013 DUPLO 5000 DC12r Jogger, DC10/60 10 Bin Collating Tower, DBM500 Stitch Fold Unit, DBM500t Foredge Trimmer, Conveyor Delivery
United KingdomDuplo
DC-645i
2013
Slitter/cutter/creaser
2013 DUPLO DC645i SLITTER-CUTTER-CREASER Pile Feeder, Slitter, Cutter, Creaser Units, DCF2 Folder, Stack Delivery
United KingdomDuplo
5000
2007
Collator and booklet production
2007 DUPLO 5000 DSF2000 Sheet Feeder, DBM500 Stitch Fold, Unit, DBM500t Foredge Trimmer, Conveyor Delivery
United KingdomDuplo
600I
2015
Booklet machines
2015 DUPLO 600i DSF2200 Pile Feeder, 2 x 10/60i 10 Bin Collating Towers, Uplift, DBM600 Stitch Fold, DBM600T Foredge Trimmer, 2 Knife Trimmer, Conveyor Delivery
United KingdomDuplo
DC-645
Slitter/cutter/creaser
SPEED UP TO 26 SHEETS PER MINUTE¹ PAPER WEIGHT COVER (110 GSM - 350 GSM) PAPER SIZE INPUT: 210 MM X 210 MM (8.26” X 8.26”) TO 370 MM X 650 MM (14.56” X 25.59”) MINIMUM OUTPUT: SLIT WIDTH 48 MM X CUT LENGTH 85 MM PAPER TYPE NON-COATED, COATED, LAMINATED INPUT TRAY CAPACITY 100 MM SLITTERS SIX ROTARY SLITTERS (TWO MARGIN AND FOUR CENTER SLITTERS) SLIT ACCURACY ±0.2 MM (±0.3 MM FOR BUSINESS CARDS) MARGIN SLIT WIDTH 3.2 MM - 40 MM FROM PAPER EDGE GUTTER SLIT WIDTH 5 MM - 15 MM (GUTTER STRIPS WIDER THAN 15 MM WILL OUTPUT ON STACKER TRAY) CUTS UP TO 15 CUTS PER SHEET MINIMUM CUT LENGTH LEAD EDGE CUT: 3.2 MM GUTTER CUT: 4 MM TRAIL EDGE CUT: 5 MM CUT ACCURACY ±0.2 MM (±0.3 MM FOR BUSINESS CARDS)³ CREASES UP TO 10 CREASES PER SHEET CREASE ACCURACY ±0.2 MM ON ? NISHED SIZE³ STANDARD FEATURES MAXIMUM 80 JOB PROGRAM MEMORY; JOB PROGRAM COMPUTER INTERFACE (WITH SOFTWARE INSTALLED) POWER CONSUMPTION 120V 50/60HZ 3.3A DIMENSIONS (LXWXH) 30” X 90” X 45” (WITH ADDITIONAL TRAY 30” X 97” X 45”) WEIGHT 793 LBS. (360 KG)
VogteiGermanyDuplo
DFC 10
Collator and booklet production
MINI-COLLATING SYSTEM WITH TABLE-TOP FRICTION COLLATOR 10 STATIONS FOR FULL RANGE OF SHEET SIZES FROM A5 TO SRA3 AND VARIETY OF STOCKS INCLUDING CARBONLESS SETS, CARD, BOND AND EVEN FOLDED SHEETS, BIN CAPACITY : 28 MM PAPER WEIGHT : 40-200 GM2 WITH PROGRAMMING (AUTO BIN SELECTION, INTERLEAVING SHEET INSERTION, ALTERNATE LOADING, TOTAL & PRES-SELECTIVE COUNT…) MISS/DOUBLE/EMPTY BIN/JAM/STACKER FULL DETECTION SYSTEMS
VogteiGermanyDuplo
445
Slitter/cutter/creaser
The DC445 is a very popular suction feed creasing machine and is so easy to use. The Duplo DC-445 card creaser is specifically designed to meet the needs of the short run digital colour print market, providing a creasing solution for the problem of toner/ink cracking which results when digitally printed work is folded.
United KingdomDuplo
445
Slitter/cutter/creaser
Up to 15 creases per sheet. 30 job programmable memory. 100mm feed pile height. Suction feed. Can run unattended leaving an operator to attend to other tasks. Speed 3,000 (A4 single crease per hour). The DC445 is a very popular suction feed creasing machine and is so easy to use. The Duplo DC-445 card creaser is specifically designed to meet the needs of the short run digital colour print market, providing a creasing solution for the problem of toner/ink cracking which results when digitally printed work is folded. The DC-445 Ducreaser has been designed to partner light production digital colour printing presses, though its ability to handle A4 sheets at 50 a minute lets it keep pace with more productive digital presses. Creasing is necessary to overcome toner cracking which can plague digitally printed pages and result in a quality finished product. The ability to crease up to 15 times in 0.1mm increments covers a huge range of product types that any customer might require. Step by step touch panel set up stores and recalls the programmes for 30 jobs to save time on repeat product types. A 100mm feed tray capacity and 110mm delivery tray means the DC-445 Ducreaser can run unattended leaving an operator to attend to other tasks. Suction feed removes the risk of marking with the air knife to help separate sheets ahead of feeding if static is an issue. An optional ultrasonic double sheet detector prevents misfeeds. Skew and shrinkage adjustments compensate for any image placement issues
United KingdomDuplo
DF-1000
Folding Machine
Duplo DF-1000 Suction Folding Machine The DF-1000 is a folder designed around the needs of digital print with fast set up for short run work and suction feed to cope with the papers that are used in digital printing. This market requires ease of use, which the DF-1000 delivers, but also the sort of finish that larger industrial folders produce – which the DF-1000 also delivers. Features A3- B6 sizes accepted 5 fold types automatic set up top feeding quiet and delicate for digital print
LancasterUnited KingdomDuplo
4000 Tower
Collator and booklet production
Duplo 4000 Collator + Bookletmaker system Fold, Stitch, trim the most productive and technologically-advanced collating and booklet making solution in the industry . . . the System 4000! speeds of up to 5,000 booklets and 10,000 collated sets per hour'' The Duplo 10/60 Paper Collator 10 station is a high-speed suction feed vertical collator, ideal for the demands of the short run, fast turnaround print market. Compared with most suction collators on the market - Suction feed for trouble-free operation -Touch screen control for ease of set up - Air Management System to each bin delivers consistent feeding on all paper types and weights - Continuous operation thanks to block feeding mode - 120 x 148mm to 350 x 500mm paper formats - Handles litho and digital printed work - Programmable to feed alternative covers or sections - Hand marrying to feed precollated sets - Error Detection: Bin Empty - Double Feed - Mis-feed, - Cover Open - Paper Jam - Optical Mark Recognition - Downstream finisher error - Dimensions (LxWxH): 44" x 30" x 40" - Weight (lbs): 300 Trimmer Trimming Mechanism: Upper and lower shearing action Booklet Sizes (Min./Max.): 4.73” x 3.35” to 14’ x 10” Trimmed Booklet Sizes (Min./Max.):4.72” x 2.87” to 14” x 10” Trimming Margin: Up to 2.95” Cutting Thickness: Up to 50 sheets Speed: Up to 4,200 sets per hour* Bookletmaker CORNER/SIDE/TOP STITCHING APPLICATION Sheet Size (Min./Max.): 4.73” x 5.51” to 13.82” x 14.41” Paper Capacity: Up to 30 sheets Speed: Up to 4,200 sets per hour* Detection: Jam and misfeed Number of Stitcher Heads:1-4 (2 standard) Hohner heads Stitch Positions: Saddle, corner, side, none (fold only) Programmable Memory Settings:8 Automatic Functions: Stitcher heads, back jogger, side guides, stitch stopper, fold stopper and fold-back stopper positions Duplo dam 400 stacking unit for straight and offset stacking
United KingdomDuplo
5000
Collator and booklet production
The Duplo 5000 Paper Collator 10 station is a high-speed suction feed vertical collator, ideal for the demands of the short run, fast turnaround print market. Compared with most suction collators on the market. When it comes to booklet making systems, nothing compares to the quality 5000 system by Duplo. It offers the ideal economical & fast booklet making solution designed to maximize productivity throughout the finishing process. A Duplo system is quite simply the intelligent choice for your print business. Paper Size: Letter, legal, ledger, A#, A4, B4, Custom sizes between 8.5" x 11" and 11" x 17" Paper Weight: 14-42 lbs Speed: Up to 2,000 sets per hour Error Detection: Bin Empty Double Feed Mis-feed, Cover Open Paper Jam Optical Mark Recognition Downstream finisher error Dimensions (LxWxH): 44" x 30" x 40" Weight (lbs): 300 1 x Duplo System 5000 trimmer 1 x Duplo System 5000 Dynamic Bookletmaker Can the tower collator be separated and used with a jogger? Yes, it can. Can some of the bins be used without others? Yes, some of the bins can be used without others. What can I use a digital feeder for? When your work has come from a digital printing machine, it will already be pre-collated. The digital feeder takes pre-collated sets and counts the sheets; rather than having to collate them as well. What is best for me? a collator or a digital feeder? It depends, if you're printing litho a collator is better, if you're printing digital, a digital feeder is better (if your work is pre-collated). What does the Duplo 5000 have that the 4000 doesn’t? The Duplo 5000 has a colour touch screen display that makes it easier to set up, and its programmable. How does a bookletmaking system work? It feeds the sheets in, and then it stitches or staples the middle of the sheet it then folds the sheet in half. then the fore-edge is trimmed. Finally you have a booklet! What's better Horizon or Duplo? The machines are very similar.
United KingdomDuplo
5000 Twin Tower System
Collator and booklet production
The Duplo 5000 Paper Collator 20 station is a high-speed suction feed vertical collator, ideal for the demands of the short run, fast turnaround print market. Compared with most suction collators on the market. When it comes to booklet making systems, nothing compares to the quality 5000 system by Duplo. It offers the ideal economical & fast booklet making solution designed to maximize productivity throughout the finishing process. A Duplo system is quite simply the intelligent choice for your print business. Paper Size: Letter, legal, ledger, A#, A4, B4, Custom sizes between 8.5" x 11" and 11" x 17" Paper Weight: 14-42 lbs Speed: Up to 2,000 sets per hour Error Detection: Bin Empty Double Feed Mis-feed, Cover Open Paper Jam Optical Mark Recognition Downstream finisher error Dimensions (LxWxH): 44" x 30" x 40" Weight (lbs): 300 1 x Duplo System 5000 trimmer 1 x Duplo System 5000 Dynamic Bookletmaker Can the tower collator be separated and used with a jogger? Yes, it can. Can some of the bins be used without others? Yes, some of the bins can be used without others. What can I use a digital feeder for? When your work has come from a digital printing machine, it will already be pre-collated. The digital feeder takes pre-collated sets and counts the sheets; rather than having to collate them as well. What is best for me? a collator or a digital feeder? It depends, if you're printing litho a collator is better, if you're printing digital, a digital feeder is better (if your work is pre-collated). What does the Duplo 5000 have that the 4000 doesn’t? The Duplo 5000 has a colour touch screen display that makes it easier to set up, and its programmable. How does a bookletmaking system work? It feeds the sheets in, and then it stitches or staples the middle of the sheet it then folds the sheet in half. then the fore-edge is trimmed. Finally you have a booklet!
United KingdomDuplo
DFC 10
Collator and booklet production
Collating Stations - 10 Feed System - 3 wheel friction feed Capacity Per Station - 28mm (260mm sheets @ 80gsm) Sheet Size Min - 140x140mm Sheet Size Max - 320x450mm Paper Weight - 50-130gsm Speed (sets/hr) - 3900 sets/hour At Print and Finish we offer a quick turnaround once we have received payment for your item, usually 2 - 3 working days depending on the size of your purchase. If you require installation we can supply one of our experienced engineering team to do this for you at extra cost. Our UK sales are shipped out using our local haulage company, the items are fully secured to wooden pallets and sealed with film to weatherproof them during transport. We are set up to offer worldwide shipment for the print industry, so no matter the size of your order, we will get it to you on time and on budget. Machines are sealed into strong wood crates that are sourced from sustainable materials, which are then collecting by our shipping agent and distributed to you by either Air or Sea, depending on your preference. Please Note: Postage costs are calculated based on machine size and delivery location. Please contact us for a delivery quote.
United KingdomDuplo
5000
Collator and booklet production
The Duplo 5000 Sheet Feed + Bookletmaker system F/S/T dbm the most productive and technologically-advanced collating and booklet making solution in the industry . . . the System 5000! Redefining the word automatic, Duplo presents the first and only truly automatic finishing machine that delivers cutting edge technology and unprecedented speeds of up to 5,000 booklets and 10,000 collated sets per hour. Produces a range of applications including A4/A5 booklets, A3-A6 booklets, CD books, report manuals, product brochures, catalogs, academic journals and loop stitch brochures. The heavy-duty System 5000 demonstrates superb versatility with its ability to feed up to 12-point cover and a variety of sheet sizes. The Duplo SCC Unit provides the slit/cut/crease module to produce incredibly finished booklet quality. The SCC unit can handle sheets that need trimming to size, this avoids guillotining, you can also score before folding to avoid cracking. All of these small features put together just amount to perfection with regards to your booklets. Add this unit onto your Duplo System to get your high quality booklets today! A Duplo system is quite simply the intelligent choice for your print business. Paper Size: Letter, legal, ledger, A#, A4, B4, Custom sizes between 8.5" x 11" and 11" x 17" Paper Weight: 14-42 lbs Speed: Up to 2,000 sets per hour Error Detection: Bin Empty Double Feed Mis-feed, Cover Open Paper Jam Downstream finisher error Dimensions (LxWxH): 44" x 30" x 40" Weight (lbs): 300 1 x Duplo System 5000 trimmer 1 x Duplo System 5000 Dynamic Bookletmaker Combines litho and digital work Four finishing styles High performance paper handling Automatic set up of bookletmaker Creasing of selected pages to avoid cracking Camera system to compensate for image drift Clear PC-based set up interface Paper Size: Length: 170 to 500 mm - Width: 120 to 356 mm Paper Type: Fine Quality Paper: 80.0 to 300.0 gsm Art/Coated Paper: 84.9 to 300.0 gsm Fine Quality Paper: 60.0 to 127.9 gsm Art/Coated Paper: 84.9 to 157.0 gsm Slitting Range: (Both edges are slit) Front edge: 4 to 25 mm Rear edge: 4 to 25 mm Cutting Range: Lead edge: 4 to 25 mm Tail edge: 4 to 25 mm Maximum Process Speed: Slitter: 60 sheets/min Cutter: 25 sheets/min Creaser: 60 sheets/min A3: 150 sheets/min A4: 200 sheets/min Power Supply: 120V - 240V, 50Hz/60Hz Power Consumption -120W, 1.4 - 0.6A
LancasterUnited KingdomDuplo
DBM
Booklet machines
Duplo DBM-120 Fold Stitch Automatic Bookletmaker Features Include - Booklet capacity of up to 20 sheets (100 pages) of 20-lb. stock. - Block capacity of up to 30 sheets of 20-lb stock. - Production speeds of up to 1800 booklets per hour can be achieved. - Programmable with 10 pre-set & three custom sizes - Corner, Side or Regular Booklet Stapling - Can be used used without staple head to fold up to 20 sheets in half - Connects to the Duplo DSF-2000 Set Feeder & DBM-120T Automatic Trimmer. A4 Sheet Speed Max 120 Sheets/Min A4 Booklet Production Max 40 Books/Min A3 Booklet Production Max 30 Books/Min Typical Hourly Production 5 Sheet A4 5800 sheets (= 194 ppm) 5 Sheet A3 4500 sheets (= 300 ppm) Programmes 10 pre-set sizes / 3 custom sizes Sheet Sizes(Min) 279mm x 210mm Sheet Sizes(Max) 457mm x 320mm Booklet Sizes (Min) length 140mm (before trim) x 210mm Booklet Sizes (Max) length 229 (before trim) x width320mm Capacity (80gsm) 20 sheets (with grain) Stitch/Staple Type 2 x Staple (from 2 x 5000 staple cartridge)
United KingdomDuplo
4000/5000
2008
Booklet machines
DUPLO 4000/5000 BOOKLET LINE DUPLO 4000/5000 BOOKLET LINE A set of machines including: - Duplo 5000 collector Max. format: 350 x 500 mm Min.format: 120 x 148 mm 50-300 gsm collection speed 5000 sets / h 10 shelves Vacuum feeding Control from the touch screen Jam sensor, double feed, no feed Possibility of laying on the right and left 230V power supply Weight 320 kg - Duplo DBM-400 sewing and folding unit Max format: 500x350mm Min format: 120x140mm wire sewing folding two Hohner heads (max. 4) a desktop for quickly changing formats 230V power supply Weight 490 kg - Duplo DBM-400 T front cutting module Control from the desktop large waste bin Weight 200 kg 230V power supply - Additional sheet feeder ... A set of machines including: - Duplo 5000 collector Max. format: 350 x 500 mm Min.format: 120 x 148 mm 50-300 gsm collection speed 5000 sets / h 10 shelves Vacuum feeding Control from the touch screen Jam sensor, double feed, no feed Possibility of laying on the right and left 230V power supply Weight 320 kg - Duplo DBM-400 sewing and folding unit Max format: 500x350mm Min format: 120x140mm wire sewing folding two Hohner heads (max. 4) a desktop for quickly changing formats 230V power supply Weight 490 kg - Duplo DBM-400 T front cutting module Control from the desktop large waste bin Weight 200 kg 230V power supply - Additional sheet feeder ...
GliwicePoland
